直線・円偏波変換器

取扱いメーカー

すぐお見積りいたします

お見積りはこちら

仕様

Model Number	Center Frequency	Bandwidth	Insertion Loss	Axial Ratio	Return Loss	Input/Output
SAS-153-58462-F1	15.2 GHz	±2.8 GHz	0.5 dB	1.2	15 dB	0.584" Diameter Circular Waveguide

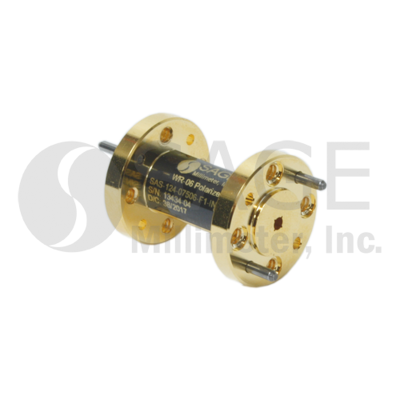

SAS-124-07506-F1	121 GHz	±7 GHz	1.0 dB	1.1	20 dB	0.075" Diameter Circular Waveguide

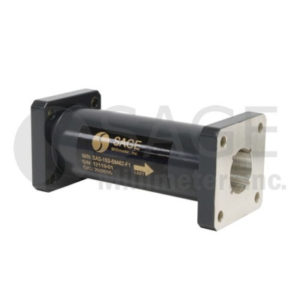

SAS-153-59462-F1	15 GHz	±1.0 GHz	0.5 dB	1.1	20 dB	0.594" Diameter Circular Waveguide
SAS-144-07506-F1	144 GHz	±6 GHz	1.0 dB	1.1	20 dB	0.075" Diameter Circular Waveguide
SAS-203-47042-F1	-	-	0.5 dB	1.1	17 dB	0.470" Diameter Circular Waveguide
SAS-223-39642-F1	-	-	0.5 dB	1.1	17 dB	0.396" Diameter Circular Waveguide
SAS-213-36842-F1	21 GHz	±1 GHz	0.5 dB	1.1	20 dB	0.368" Diameter Circular Waveguide
SAS-223-43642-F1	22 GHz	±1.0 GHz	0.5 dB	1.1	20 dB	0.436" Diameter Circular Waveguide
SAS-233-39642-F1	22.5 GHz	± 2.5 GHz	0.5 dB	1.1	20 dB	0.396" Diameter Circular Waveguide
SAS-243-36842-F1	24 GHz	±1.0 GHz	0.5 dB	1.1	20 dB	0.368" Diameter Circular Waveguide
SAS-243-39642-F1	24 GHz	±1.0 GHz	0.5 dB	1.1	20 dB	0.396" Diameter Circular Waveguide
SAS-293-31528-F1	29.5 GHz	±3.5 GHz	0.3 dB	1.1	20 dB	0.315" Diameter Circular Waveguide

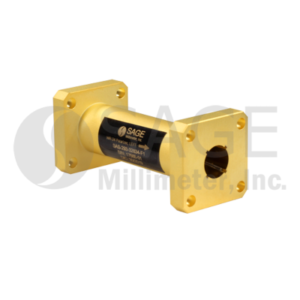

SAS-293-32834-F1	29.5 GHz	±3.5 GHz	0.3 dB	1.1	20 dB	0.328" Diameter Circular Waveguide
SAS-353-25028-F1	35 GHz	±2.6 GHz	0.3 dB	1.1	20 dB	0.250" Diameter Circular Waveguide
SAS-353-25028-F1-1.0	32.4 GHz	±2.6 GHz	0.3 dB	1.1	20 dB	0.250" Diameter Circular Waveguide
SAS-403-21922-F1	36 GHz	±1 GHz	0.5 dB	1.1	20 dB	0.219" Diameter Circular Waveguide

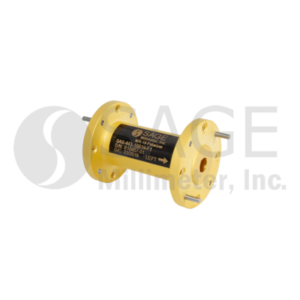

SAS-443-18819-F1	44 GHz	±3.3 GHz	0.5 dB	1.1	20 dB	0.188" Diameter Circular Waveguide
SAS-603-14115-F1	60 GHz	±2.5 GHz	0.5 dB	1.1	20 dB	0.141" Diameter Circular Waveguide
SAS-773-12512-F1	77 GHz	±6 GHz	0.5 dB	1.1	20 dB	0.125" Diameter Circular Waveguide
SAS-793-11012-F1	78.5 GHz	±7.5 GHz	0.5 dB	1.1	20 dB	0.110" Diameter Circular Waveguide
SAS-943-09410-F1	94 GHz	±2 GHz	0.7 dB	1.1	20 dB	0.094" Diameter Circular Waveguide
