ツイスト導波管
仕様

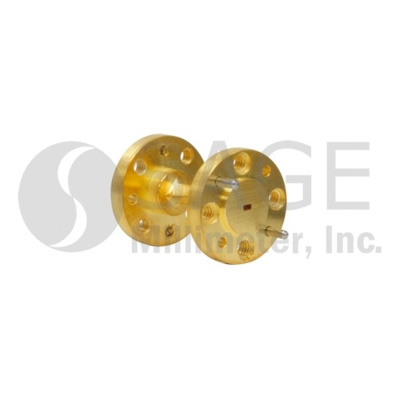

| Model Number | Data sheet | Minimum Frequency | Maximum Frequency | Angle | Orientation | Bend Radius/Length | Waveguide Size |
|---|---|---|---|---|---|---|---|
| SWB-06045L-TB-1.0 |  | 110 GHz | 170 GHz | 45 Degrees | Left-Handed Twist | 1.00" | WR-06 |
| SWB-06045L-TB | | 110 GHz | 170 GHz | 45 Degrees | Left-Handed Twist | 1.25" | WR-06 |
| SWB-06090-TB | | 110 GHz | 170 GHz | 90 Degrees | Twist | 1.25" | WR-06 |
| SWB-08045L-TB-1.0 | | 90 GHz | 140 GHz | 45 Degrees | Left-Handed Twist | 1.00" | WR-08 |
| SWB-08045L-TB | | 90 GHz | 140 GHz | 45 Degrees | Left-Handed Twist | 1.25" | WR-08 |
| SWB-08090-TB | | 90 GHz | 140 GHz | 90 Degrees | Twist | 1.25" | WR-08 |
| SWB-10045L-TB-1.0 | | 75 GHz | 110 GHz | 45 Degrees | Left-Handed Twist | 1.00" | WR-10 |
| SWB-10090-TB-1.0 | | 75 GHz | 110 GHz | 90 Degrees | Twist | 1.00" | WR-10 |
| SWB-10045L-TB | | 75 GHz | 110 GHz | 45 Degrees | Left-Handed Twist | 1.25" | WR-10 |
| SWB-10090-TB | | 75 GHz | 110 GHz | 90 Degrees | Twist | 1.25" | WR-10 |
| SWB-12045L-TB-1.0 | | 60 GHz | 90 GHz | 45 Degrees | Left-Handed Twist | 1.00" | WR-12 |
| SWB-12090-TB-1.0 | | 60 GHz | 90 GHz | 90 Degrees | Twist | 1.0" | WR-12 |
| SWB-12045L-TB | | 60 GHz | 90 GHz | 45 Degrees | Left-Handed Twist | 1.25" | WR-12 |
| SWB-12045R-TB | | 60 GHz | 90 GHz | 45 Degrees | Right-Handed Twist | 1.25" | WR-12 |
| SWB-12045R-TB-1.0 | | 60 GHz | 90 GHz | 45 Degrees | Right-Handed Twist | 1.00" | WR-12 |
| SWB-12090-TB | | 60 GHz | 90 GHz | 90 Degrees | Twist | 1.25" | WR-12 |
| SWB-15045L-TB-1.0 | | 50 GHz | 75 GHz | 45 Degrees | Left-Handed Twist | 1.00" | WR-15 |
| SWB-15045L-TB | | 50 GHz | 75 GHz | 45 Degrees | Left-Handed Twist | 1.25" | WR-15 |
| SWB-15090-TB | | 50 GHz | 75 GHz | 90 Degrees | Twist | 1.25" | WR-15 |
| SWB-19045L-TB-1.0 | | 40 GHz | 60 GHz | 45 Degrees | Left-Handed Twist | 1.00" | WR-19 |
| SWB-19045L-TB | | 40 GHz | 60 GHz | 45 Degrees | Left-Handed Twist | 1.50" | WR-19 |
| SWB-19090-TB | | 40 GHz | 60 GHz | 90 Degrees | Twist | 1.50" | WR-19 |
| SWB-22045L-TB-1.0 | | 33 GHz | 50 GHz | 45 Degrees | Left-Handed Twist | 1.00" | WR-22 |

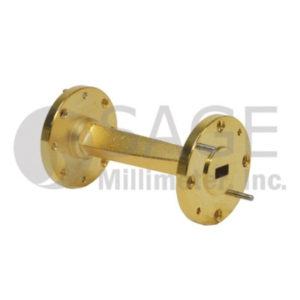

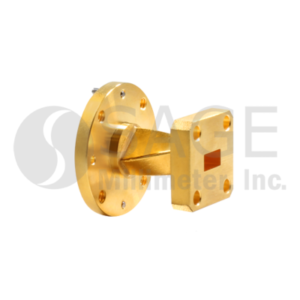

| SWB-22045L-TB | | 33 GHz | 50 GHz | 45 Degrees | Left-Handed Twist | 2.00" | WR-22 |
| SWB-22090-TB | | 33 GHz | 50 GHz | 90 Degrees | Twist | 2.00" | WR-22 |
| SWB-28045L-TB-383-1.0 | | 26.5 GHz | 40 GHz | 45 Degrees | Left-Handed Twist | 1.0" | WR-28 UG-383/U |
| SWB-28090-TB-1.0 | | 26.5 GHz | 40 GHz | 90 Degrees | Twist | 1.00" | WR-28 |
| SWB-28045R-TB | | 26.5 GHz | 40 GHz | 45 Degrees | Right-Handed Twist | 2.0" | WR-28 |
| SWB-28090-TB | | 26.5 GHz | 40 GHz | 90 Degrees | Twist | 2.00" | WR-28 |
| SWB-34045L-TB | | 22 GHz | 33 GHz | 45 Degrees | Left-Handed Twist | 2.00" | WR-34 |
| SWB-34090-TB | | 22 GHz | 33 GHz | 90 Degrees | Twist | 2.00" | WR-42 |
| SWB-42045L-TB | | 18 GHz | 26.5 GHz | 45 Degrees | Left-Handed Twist | 2.50" | WR-42 |
| SWB-42090-TB | | 18 GHz | 26.5 GHz | 90 Degrees | Twist | 2.50" | WR-42 |
