ライトアングル導波管-同軸変換アダプタ

ライトアングル導波管-同軸変換アダプタ

取扱いメーカー

Eravant

すぐお見積りいたします

仕様

Model NumberData sheetMinimum FrequencyMaximum FrequencyInsertion LossReturn LossPower HandlingWaveguide PortCoax TypeCoax GenderConfiguration

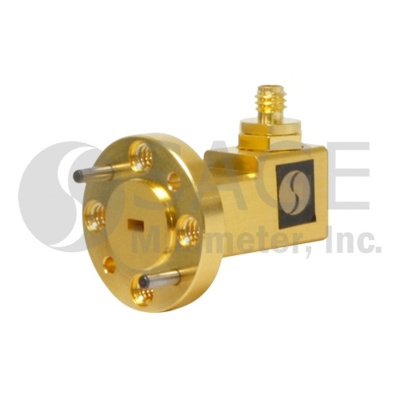

SWC-101F-R1Datasheet75 GHz110 GHz1.20 dB15 dB10 WWR-10 Waveguide1 mmFemaleRight Angle (90°)
SWC-101F-R1-2Datasheet75 GHz110 GHz1.20 dB15 dB10 WWR-10 Waveguide1 mmFemaleRight Angle (90°)
SWC-101F-R1-VDatasheet75 GHz110 GHz1.20 dB15 dB10 WWR-10 Waveguide1 mmFemaleRight Angle (90°)

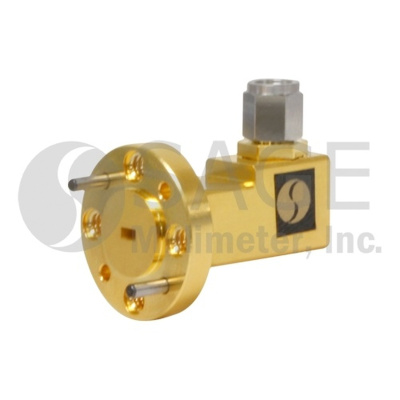

SWC-101M-R1Datasheet75 GHz110 GHz1.20 dB15 dB10 WWR-10 Waveguide1 mmMaleRight Angle (90°)
SWC-101M-R1-2Datasheet75 GHz110 GHz1.20 dB15 dB10 WWR-10 Waveguide1 mmMaleRight Angle (90°)
SWC-101M-R1-VDatasheet75 GHz110 GHz1.20 dB15 dB10 WWR-10 Waveguide1 mmMaleRight Angle (90°)
SWC-151M-R1-VDatasheet50 GHz75 GHz0.7 dB15 dB10 WWR-15 Waveguide1 mmMaleRight Angle (90°)
SWC-112NM-R7Datasheet7 GHz10 GHz0.20 dB20 dB150 WWR-112 WaveguideNMaleRight Angle (90°)
SWC-112NF-R7Datasheet7 GHz10 GHz0.20 dB20 dB150 WWR-112 WaveguideNFemaleRight Angle (90°)
SWC-121F-R1Datasheet60 GHz90 GHz1.00 dB15 dB10 WWR-12 Waveguide1 mmFemaleRight Angle (90°)
SWC-121M-R1Datasheet60 GHz90 GHz1.00 dB15 dB10 WWR-12 Waveguide1 mmMaleRight Angle (90°)
SWC-12VF-R1Datasheet60 GHz72 GHz0.8 dB14 dB10 WWR-12 Waveguide1.85 mmFemaleRight Angle (90°)
SWC-12VM-R1Datasheet60 GHz72 GHz0.8 dB14 dB10 WWR-12 Waveguide1.85 mmMaleRight Angle (90°)
SWC-151F-R1Datasheet50 GHz75 GHz0.70 dB15 dB10 WWR-15 Waveguide1 mmFemaleRight Angle (90°)
SWC-151F-R1-VDatasheet50 GHz75 GHz0.7 dB15 dB10 WWR-15 Waveguide1 mmFemaleRight Angle (90°)
SWC-151M-R1Datasheet50 GHz75 GHz0.70 dB15 dB10 WWR-15 Waveguide1 mmMaleRight Angle (90°)
SWC-15VF-R1Datasheet50 GHz70 GHz0.70 dB16 dB40 WWR-15 WaveguideV (1.85 mm)FemaleRight Angle (90°)
SWC-15VF-R1-VDatasheet50 GHz70 GHz0.70 dB16 dB40 WWR-15 WaveguideV (1.85 mm)FemaleRight Angle (90°)

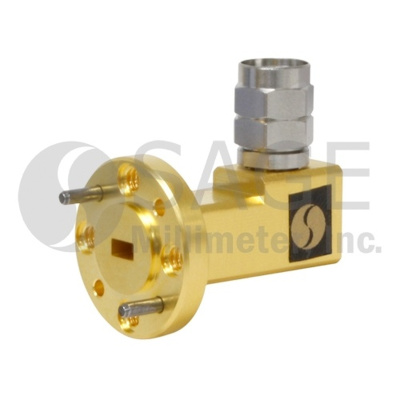

SWC-15VM-R1Datasheet50 GHz70 GHz0.70 dB16 dB40 WWR-15 WaveguideV (1.85 mm)MaleRight Angle (90°)
SWC-15VM-R1-VDatasheet50 GHz70 GHz0.70 dB16 dB40 WWR-15 WaveguideV (1.85 mm)MaleRight Angle (90°)
SWC-192F-R1Datasheet40 GHz52 GHz0.50 dB18 dB40 WWR-19 Waveguide2.4 mmFemaleRight Angle (90°)
SWC-192M-R1Datasheet40 GHz52 GHz0.50 dB18 dB40 WWR-19 Waveguide2.4 mmMaleRight Angle (90°)
SWC-19VF-R1Datasheet40 GHz60 GHz0.50 dB18 dB40 WWR-19 WaveguideV (1.85 mm)FemaleRight Angle (90°)
SWC-19VM-R1Datasheet40 GHz60 GHz0.50 dB18 dB40 WWR-19 WaveguideV (1.85 mm)MaleRight Angle (90°)

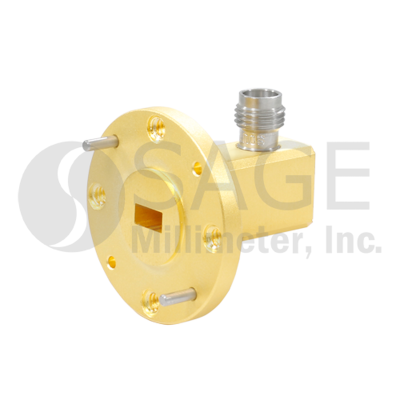

SWC-222F-R1Datasheet33 GHz50 GHz0.40 dB18 dB40 WWR-22 Waveguide2.4 mmFemaleRight Angle (90°)
SWC-222F-R1-599Datasheet33 GHz50 GHz0.40 dB18 dB40 WWR-22 Waveguide2.4 mmFemaleRight Angle (90°)
SWC-222M-R1Datasheet33 GHz50 GHz0.40 dB18 dB40 WWR-22 Waveguide2.4 mmMaleRight Angle (90°)
SWC-222M-R1-599Datasheet33 GHz50 GHz0.40 dB18 dB40 WWR-22 Waveguide2.4 mmMaleRight Angle (90°)
SWC-22KF-R1Datasheet33 GHz43 GHz0.40 dB18 dB50 WWR-22 WaveguideK (2.92 mm)FemaleRight Angle (90°)
SWC-22KF-R1-599Datasheet33 GHz43 GHz0.40 dB18 dB50 WWR-22 WaveguideK (2.92 mm)FemaleRight Angle (90°)
SWC-22KM-R1Datasheet33 GHz43 GHz0.40 dB18 dB50 WWR-22 WaveguideK (2.92 mm)MaleRight Angle (90°)
SWC-22KM-R1-599Datasheet33 GHz43 GHz0.40 dB18 dB50 WWR-22 WaveguideK (2.92 mm)MaleRight Angle (90°)
SWC-22VF-R1Datasheet33 GHz50 GHz0.40 dB18 dB30 WWR-22 WaveguideV (1.85 mm)FemaleRight Angle (90°)
SWC-22VM-R1Datasheet33 GHz50 GHz0.40 dB18 dB30 WWR-22 WaveguideV (1.85 mm)MaleRight Angle (90°)
SWC-282F-R1Datasheet26.5 GHz40 GHz0.35 dB20 dB40 WWR-28 Waveguide2.4 mmFemaleRight Angle (90°)
SWC-2434431505-282F-R1Datasheet24.0 GHz43.5 GHz0.5 dB15 dB30 WWR-28 Waveguide2.4 mmFemaleRight Angle (90°)
SWC-282M-R1Datasheet26.5 GHz40 GHz0.35 dB20 dB40 WWR-28 Waveguide2.4 mmMaleRight Angle (90°)
SWC-2434431505-282M-R1Datasheet24.0 GHz43.5 GHz0.5 dB15 dB30 WWR-28 Waveguide2.4 mmMaleRight Angle (90°)
SWC-28KF-R1-1530Datasheet26.5 GHz40 GHz0.35 dB20 dB50 WWR-28 WaveguideK (2.92 mm)FemaleRight Angle (90°)
SWC-28KM-R1-1530Datasheet26.5 GHz40 GHz0.35 dB20 dB50 WWR-28 WaveguideK (2.92 mm)MaleRight Angle (90°)
SWC-28KF-R1Datasheet26.5 GHz40 GHz0.35 dB20 dB20 WWR-28 WaveguideK (2.92 mm)FemaleRight Angle (90°)
SWC-28KF-R1-VDatasheet26.5 GHz40 GHz0.25 dB20 dB50 WWR-28 WaveguideK (2.92 mm)FemaleRight Angle (90°)
SWC-28KM-R1Datasheet26.5 GHz40 GHz0.35 dB20 dB20 WWR-28 WaveguideK (2.92 mm)MaleRight Angle (90°)
SWC-28KM-R1-VDatasheet26.5 GHz40 GHz0.25 dB20 dB50 WWR-28 WaveguideK (2.92 mm)MaleRight Angle (90°)
SWC-28VF-R1Datasheet26.5 GHz40 GHz0.35 dB20 dB30 WWR-28 WaveguideV (1.85 mm)FemaleRight Angle (90°)
SWC-2434431505-28VF-R1Datasheet24.0 GHz43.5 GHz0.5 dB15 dB30 WWR-28 WaveguideV (1.85 mm)FemaleRight Angle (90°)
SWC-28VM-R1Datasheet26.5 GHz40 GHz0.35 dB20 dB30 WWR-28 WaveguideV (1.85 mm)MaleRight Angle (90°)
SWC-2434431505-28VM-R1Datasheet24.0 GHz43.5 GHz0.5 dB15 dB30 WWR-28 WaveguideV (1.85 mm)MaleRight Angle (90°)
SWC-342M-R1Datasheet22 GHz33 GHz0.35 dB20 dB50 WWR-34 Waveguide2.4 mmMaleRight Angle (90°)
SWC-342F-R1Datasheet22 GHz33 GHz0.35 dB20 dB50 WWR-34 Waveguide2.4 mmFemaleRight Angle (90°)
SWC-34KF-R1Datasheet22 GHz33 GHz0.35 dB20 dB50 WWR-34 WaveguideK (2.92 mm)FemaleRight Angle (90°)
SWC-34KM-R1Datasheet22 GHz33 GHz0.35 dB20 dB50 WWR-34 WaveguideK (2.92 mm)MaleRight Angle (90°)
SWC-422F-R1Datasheet18 GHz26.5 GHz0.3 dB20 dB40 WWR-42 Waveguide2.4 mmFemaleRight Angle (90°)
SWC-422M-R1Datasheet18 GHz26.5 GHz0.3 dB20 dB40 WWR-42 Waveguide2.4 mmMaleRight Angle (90°)
SWC-42KF-R1Datasheet18 GHz26.5 GHz0.3 dB20 dB50 WWR-42 WaveguideK (2.92 mm)FemaleRight Angle (90°)
SWC-42KF-R1-VDatasheet18 GHz26.5 GHz0.30 dB20 dB50 WWR-42 WaveguideK (2.92 mm)FemaleRight Angle (90°)
SWC-42KM-R1Datasheet18 GHz26.5 GHz0.3 dB20 dB50 WWR-42 WaveguideK (2.92 mm)MaleRight Angle (90°)
SWC-42KM-R1-VDatasheet18 GHz26.5 GHz0.30 dB20 dB50 WWR-42 WaveguideK (2.92 mm)MaleRight Angle (90°)
SWC-42SF-R1Datasheet18 GHz26.5 GHz0.3 dB17 dB50 WWR-42 WaveguideSMAFemaleRight Angle (90°)
SWC-42SM-R1Datasheet18 GHz26.5 GHz0.3 dB17 dB50 WWR-42 WaveguideSMAMaleRight Angle (90°)
SWC-51KF-R1Datasheet15 GHz22 GHz0.16 dB22 dB10 WWR-51 WaveguideK (2.92 mm)FemaleRight Angle (90°)
SWC-51KM-R1Datasheet15 GHz22 GHz0.16 dB22 dB10 WWR-51 WaveguideK (2.92 mm)MaleRight Angle (90°)
SWC-62SF-R5-2Datasheet12 GHz18 GHz0.20 dB20 dB150 WWR-62 WaveguideSMAFemaleRight Angle (90°)
SWC-62SF-R5Datasheet12 GHz18 GHz0.20 dB20 dB150 WWR-62 WaveguideSMAFemaleRight Angle (90°)
SWC-62SF-R7-2Datasheet12 GHz18 GHz0.20 dB20 dB150 WWR-62 WaveguideSMAFemaleRight Angle (90°)
SWC-62SM-R5Datasheet12 GHz18 GHz0.20 dB20 dB150 WWR-62 WaveguideSMAMaleRight Angle (90°)
SWC-62SM-R7-2Datasheet12 GHz18 GHz0.20 dB20 dB150 WWR-62 WaveguideSMAMaleRight Angle (90°)
SWC-75SF-R5Datasheet10 GHz15 GHz0.2 dB20 dB150 WWR-75 WaveguideSMAFemaleRight Angle (90°)
SWC-75SF-R7-2Datasheet10 GHz15 GHz0.2 dB20 dB150 WWR-75 WaveguideSMAFemaleRight Angle (90°)
SWC-75SM-R5Datasheet10 GHz15 GHz0.2 dB20 dB150 WWR-75 WaveguideSMAMaleRight Angle (90°)
SWC-75SM-R7-2Datasheet10 GHz15 GHz0.2 dB20 dB150 WWR-75 WaveguideSMAMaleRight Angle (90°)
SWC-90SF-R5Datasheet8.2 GHz12.4 GHz0.20 dB20 dB150 WWR-90 WaveguideSMAFemaleRight Angle (90°)
SWC-90SF-R7-2Datasheet8.2 GHz12.4 GHz0.20 dB20 dB150 WWR-90 WaveguideSMAFemaleRight Angle (90°)
SWC-90SM-R5Datasheet8.2 GHz12.4 GHz0.20 dB20 dB150 WWR-90 WaveguideSMAMaleRight Angle (90°)
SWC-90SM-R7-2Datasheet8.2 GHz12.4 GHz0.20 dB20 dB150 WWR-90 WaveguideSMAMaleRight Angle (90°)
