バラクタ調整式ガン発振器

取扱いメーカー

すぐお見積りいたします

お見積りはこちら

仕様

Model Number	Center Frequency	Output Power	Mechanical Tuning Range	Varactor Tuning Range	Bias	Varactor Tuning Voltage Range	RF Port	Varactor Tuning Port
SOV-34301320-28-G1	34 GHz	+20 dBm	±500 MHz	±100 MHz	+5.0 VDC/850 mA	0 to +25 VDC	WR-28 Waveguide	SMA (F)
SOV-34305216-28-G1	34 GHz	+16 dBm	±250 MHz	±250 MHz	+5.0 VDC/800 mA	0 to +25 VDC	WR-28 Waveguide	SMA (F)
SOV-40305210-22-G1	40 GHz	+10 dBm	±250 MHz	±250 MHz	+4.0 VDC/800 mA	0 to +25 VDC	WR-22 Waveguide	SMA (F)
SOV-49305210-19-G1	49 GHz	+10 dBm	±250 MHz	±250 MHz	+4.0 VDC/800 mA	0 to +25 VDC	WR-19 Waveguide	SMA (F)
SOV-50305215-19-G1	50 GHz	+10 dBm	±250 MHz	±250 MHz	+4.0 VDC/800 mA	0 to +25 VDC	WR-19 Waveguide	SMA (F)
SOV-60305216-15-G1	60 GHz	+16 dBm	±250 MHz	±250 MHz	+5.0 VDC/820 mA	0 to +25 VDC	WR-15 Waveguide	SMA (F)

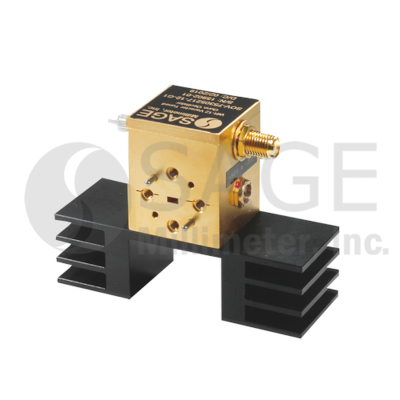

SOV-75305217-12-G1	75 GHz	+17 dBm	±250 MHz	±250 MHz	+5.0 VDC/750 mA	0 to +25 VDC	WR-12 Waveguide	SMA (F)
SOV-77305217-12-G1	76.5 GHz	+17 dBm	±250 MHz	±250 MHz	+5.0 VDC/750 mA	0 to +25 VDC	WR-12 Waveguide	SMA (F)
SOV-81305216-12-G1	81 GHz	+16 dBm	±250 MHz	±250 MHz	+5.0 VDC/750 mA	0 to +25 VDC	WR-12 Waveguide	SMA (F)
SOV-88305216-10-G1	88 GHz	+16 dBm	±250 MHz	±250 MHz	+5.0 VDC/725 mA	0 to +25 VDC	WR-10 Waveguide	SMA (F)

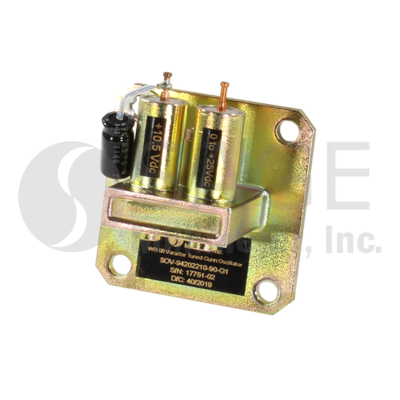

SOV-94202210-90-G1	9.375 GHz	+10 dBm	±50 MHz	±100 MHz	+10.5 VDC/150 mA	0 to +20 VDC	WR-90 Waveguide	-
SOV-95202210-90-G1	9.5 GHz	+10 dBm	±50 MHz	±100 MHz	+10.5 VDC/150 mA	0 to +20 VDC	WR-90 Waveguide	-
SOV-92305216-10-G1	92 GHz	+16 dBm	±250 MHz	±250 MHz	+4.5 VDC/750 mA	0 to +25 VDC	WR-10 Waveguide	SMA (F)
SOV-93305216-10-G1	93 GHz	+16 dBm	±250 MHz	±250 MHz	+4.5 VDC/750 mA	0 to +25 VDC	WR-10 Waveguide	Soldered Pins
SOV-94305216-10-G1	94 GHz	+16 dBm	±250 MHz	±250 MHz	+4.2 VDC/760 mA	0 to +25 VDC	WR-10 Waveguide	SMA (F)
SOV-94304310-10-G1	94 GHz	+10 dBm	±250 MHz	±2000 MHz	+5.0 VDC/780 mA	0 to +30 VDC	WR-10 Waveguide	Soldered Pins
SOV-94306310-10-G1	94 GHz	+13 dBm	±100 MHz	±3000 MHz	+5.0 VDC/780 mA	0 to +30 VDC	WR-10 Waveguide	Soldered Pins
SOV-95305216-10-G1	95 GHz	+16 dBm	±250 MHz	±250 MHz	+4.5 VDC/850 mA	0 to +25 VDC	WR-10 Waveguide	SMA (F)
SOV-96305216-10-G1	96 GHz	+16 dBm	±250 MHz	±250 MHz	+4.5 VDC/820 mA	0 to +25 VDC	WR-10 Waveguide	SMA (F)
SOV-60305210-15-G1	60 GHz	+10 dBm	±250 MHz	±250 MHz	+5.0 VDC/820 mA	0 to +25 VDC	WR-15 Waveguide	SMA (F)
