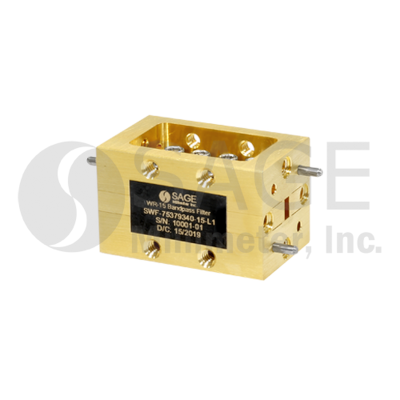

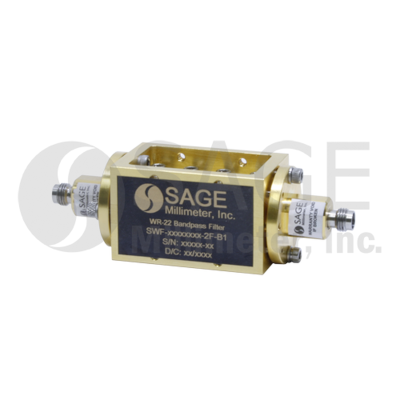

導波管バンドパス・フィルタ
概要

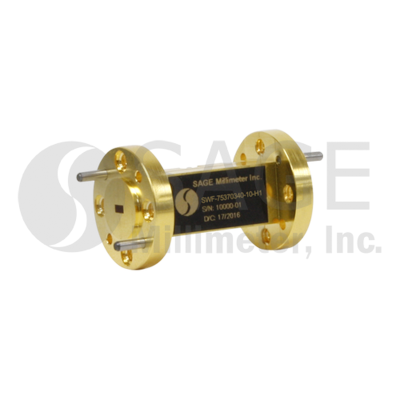

導波管フィルターは、18〜170 GHzの周波数範囲をカバーするバンドパス、ハイパス、およびローパスタイプで構成されています。
フィルターはほとんどがカスタム設計ですが、ハイパスフィルターとローパスフィルターの標準モデルは、完全な導波管バンド操作に使用できます。
Waveguide filters consist of bandpass, highpass and lowpass types that cover the frequency range of 18 to 170 GHz. While filters are mostly custom designs, standard models for highpass and lowpass filters are available for full waveguide band operations.
仕様
| Model Number | Data sheet | Minimum Passband Frequency | Maximum Passband Frequency | Minimum Rejection Frequency, Low Side | Maximum Rejection Frequency, Low Side | Minimum Rejection Frequency, High Side | Maximum Rejection Frequency, High Side | Rejection | Waveguide Port |
|---|---|---|---|---|---|---|---|---|---|
| SWF-13435330-08-B1 |  | 105 GHz | 140 GHz | DC | 94 GHz | 145 GHz | 180 GHz | 40 dB | WR-08 Waveguide |
| SWF-13432330-08-B1 | | 109 GHz | 140 GHz | DC | 94 GHz | 145 GHz | 160 GHz | 40 dB | WR-08 Waveguide |
| SWF-12401340-08-B1 | | 119.5 GHz | 120.5 GHz | DC | 117 GHz | 123 GHz | 130 GHz | 40 dB | WR-08 Waveguide |
| SWF-14428340-06-B1 | | 125 GHz | 150 GHz | DC | 100 GHz | 163 GHz | 250 GHz | 40 dB | WR-06 Waveguide |
| SWF-19303390-42-B2 | | 17.7 GHz | 20.2 GHz | DC | 17.2 GHz | 20.7 GHz | 31 GHz | 50 dB | WR-42 Waveguide |
| SWF-27310340-28-B1 | | 22 GHz | 32 GHz | 1 kHz | 18 GHz | 37 GHz | 75 GHz | 40 dB | WR-28 Waveguide |
| SWF-28312340-28-B1 | | 22 GHz | 34 GHz | DC | 20 GHz | 37 GHz | 70 GHz | 40 dB | WR-28 Waveguide |
| SWF-30313340-28-B1 | | 22 GHz | 35 GHz | 1 kHz | 20 GHz | 40 GHz | 72 GHz | 40 dB | WR-28 Waveguide |
| SWF-30316350-28-B2 | | 22 GHz | 38 GHz | DC | 19.6 GHz | 41 GHz | 45 GHz | 50 dB | WR-28 Waveguide |
| SWF-32320360-28-B1 | | 22 GHz | 42 GHz | DC | 20 GHz | 48 GHz | 85 GHz | 60 dB | WR-28 Waveguide |
| SWF-25301340-28-B2-D | | 24.25 GHz, 36.25 GHz | 25.25 GHz, 40 GHz | DC | 23.8 GHz | 42 GHz | 49 GHz | 40 dB | WR-28 Waveguide |
| SWF-28301340-28-B1-D | | 27.5 GHz, 38 GHz | 28.5 GHz, 40 GHz | DC | 25.5 GHz | 42 GHz | 49 GHz | 40 dB | WR-28 Waveguide |
| SWF-30305340-28-B1 | | 27.5 GHz | 32.5 GHz | 18.5 | 23.5 GHz | 36.5 GHz | 41.5 GHz | 40 dB | WR-28 Waveguide |
| SWF-32306340-28-B1 | | 29 GHz | 35 GHz | DC | 27 GHz | 37 GHz | 45 GHz | 40 dB | WR-28 Waveguide |
| SWF-33306340-28-B1 | | 30 GHz | 36 GHz | 20 GHz | 27 GHz | 39 GHz | 47 GHz | 40 dB | WR-28 Waveguide |
| SWF-38315340-22-B1 | | 30 GHz | 45 GHz | DC | 28 GHz | 47 GHz | 90 GHz | 40 dB | WR-22 Waveguide |
| SWF-40320340-22-B1 | | 30 GHz | 50 GHz | DC | 25 GHz | 56 GHz | 100 GHz | 40 dB | WR-22 Waveguide |
| SWF-35306340-28-B1 | | 32 GHz | 38 GHz | DC | 28 GHz | 40 GHz | 46 GHz | 40 dB | WR-28 Waveguide |
| SWF-35304340-28-B1 | | 33 GHz | 37 GHz | DC | 31 GHz | 39 GHz | 46 GHz | 40 dB | WR-28 Waveguide |
| SWF-35302240-28-B1 | | 34.65 GHz | 34.85 GHz | 26 GHz | 34.1 GHz | 35.4 GHz | 40 GHz | 40 dB | WR-28 Waveguide |
| SWF-51333340-19-B1 | | 34 GHz | 67 GHz | DC | 30 GHz | 71 GHz | 120 GHz | 40 dB | WR-19 Waveguide |
| SWF-51333340-VFVF-B1-E | | 34 GHz | 67 GHz | DC | 30 GHz | 69 GHz | 120 GHz | 40 dB | 1.85 mm (F) |
| SWF-36301340-28-B1 | | 35.26 GHz | 36.26 GHz | DC | 33.9 GHz | 38 GHz | 45 GHz | 40 dB | WR-28 Waveguide |
| SWF-48324340-19-B1 | | 36 GHz | 60 GHz | DC | 29 GHz | 66 GHz | 120 GHz | 40 dB | WR-19 Waveguide |
| SWF-39302360-KFKF-B1 | | 37.4 GHz | 39.6 GHz | DC | 36 GHz | 41 GHz | 50 GHz | 60 dB | 2.92 mm (F) |
| SWF-39302360-28-B1 | | 37.4 GHz | 39.6 GHz | DC | 36 GHz | 41 GHz | 50 GHz | 60 dB | WR-28 Waveguide |
| SWF-45310360-2F2F-B1 | | 40 GHz | 50 GHz | DC | 34 GHz | 57 GHz | 65 GHz | 60 dB | |
| SWF-45310360-22-B1 | | 40 GHz | 50 GHz | DC | 34 GHz | 57 GHz | 65 GHz | 60 dB | WR-22 Waveguide |
| SWF-48312340-19-B1 | | 42 GHz | 54 GHz | DC | 38 GHz | 57 GHz | 90 GHz | 40 dB | WR-19 Waveguide |
| SWF-49309340-15-B1 | | 43.5 GHz | 51.5 GHz | DC | 42 GHz | 54 GHz | 70 GHz | 50 dB | WR-15 Waveguide |
| SWF-45303340-22-B1 | | 43 GHz | 46 GHz | 30 | 42 GHz | 47 GHz | 55 GHz | 40 dB | WR-22 Waveguide |
| SWF-52310350-15-B1 | | 47 GHz | 57 GHz | DC | 44 GHz | 62 GHz | 85 GHz | 40 dB | WR-15 Waveguide |
| SWF-53312350-15-B1 | | 47 GHz | 59 GHz | DC | 44 GHz | 63 GHz | 78 GHz | 50 dB | WR-15 Waveguide |
| SWF-50305230-15-B1 | | 49.75 GHz | 50.25 GHz | DC | 49 GHz | 51 GHz | 60 GHz | 30 dB | WR-15 Waveguide |
| SWF-59317340-15-B1 | | 50 GHz | 67 GHz | DC | 46 GHz | 73 GHz | 110 GHz | 40 dB | WR-15 Waveguide |
| SWF-63325340-15-B1 | | 50 GHz | 75 GHz | DC | 44 GHz | 80 GHz | 110 GHz | 40 dB | WR-15 Waveguide |
| SWF-53303350-15-B1 | | 51.5 GHz | 54.5 GHz | DC | 44 GHz | 62 GHz | 70 GHz | 40 dB | WR-15 Waveguide |
| SWF-53304330-15-B1 | | 51 GHz | 55 GHz | DC | 47 GHz | 59 GHz | 70 GHz | 30 dB | WR-15 Waveguide |
| SWF-54301340-15-B1 | | 53.5 GHz | 54.5 GHz | DC | 51.5 GHz | 56.5 GHz | 65 GHz | 40 dB | WR-15 Waveguide |
| SWF-56302340-15-B1 | | 54.5 GHz | 56.5 GHz | DC | 53 GHz | 57 GHz | 70 GHz | 50 dB | WR-15 Waveguide |
| SWF-56305240-15-B1 | | 55.75 GHz | 56.25 GHz | DC | 54.75 GHz | 57.5 GHz | 70 GHz | 40 dB | WR-15 Waveguide |
| SWF-61312340-15-B1 | | 55 GHz | 67 GHz | DC | 51 GHz | 71 GHz | 95 GHz | 40 dB | WR-15 Waveguide |
| SWF-58302350-15-B1 | | 57.0 GHz | 59.0 GHz | 48.0 GHz | 55.0 GHz | 61.0 GHz | 78.0 GHz | 50 dB | WR-15 Waveguide |
| SWF-60305340-15-B1 | | 57.5 GHz | 62.5 GHz | DC | 55 GHz | 67 GHz | 78 GHz | 25 dB | WR-15 Waveguide |
| SWF-61304350-15-B1 | | 58.6 GHz | 63.4 GHz | DC | 56 GHz | 68 GHz | 80 GHz | 50 dB | WR-15 Waveguide |
| SWF-61302350-15-B1 | | 59.48 GHz | 61.48 GHz | 50.48 | 54.48 GHz | 66.48 GHz | 69.48 GHz | 50 dB | WR-15 Waveguide |
| SWF-60302330-15-B1 | | 59 GHz | 61 GHz | DC | 58 GHz | 62 GHz | 78 GHz | 25 dB | WR-15 Waveguide |
| SWF-62306340-15-B1 | | 59 GHz | 65 GHz | DC | 57.5 GHz | 67.5 GHz | 75 GHz | 40 dB | WR-15 Waveguide |
| SWF-61302330-15-B1 | | 60 GHz | 62 GHz | DC | 59 GHz | 64 GHz | 80 GHz | 30 dB | WR-15 Waveguide |
| SWF-65310350-12-B1 | | 60 GHz | 70 GHz | DC | 55 GHz | 75 GHz | 90 GHz | 50 dB | WR-12 Waveguide |
| SWF-62301340-15-B1 | | 61.7 GHz | 62.7 GHz | DC | 60 GHz | 65 GHz | 80 GHz | 40 dB | WR-15 Waveguide |
| SWF-63303340-15-B1 | | 61 GHz | 64 GHz | DC | 57.5 GHz | 67.5 GHz | 75 GHz | 40 dB | WR-15 Waveguide |
| SWF-63302350-15-B1 | | 61 GHz | 64 GHz | DC | 57 GHz | 67 GHz | 72 GHz | 50 dB | WR-15 Waveguide |
| SWF-64306340-15-B1 | | 61 GHz | 67 GHz | DC | 59 GHz | 69 GHz | 80 GHz | 40 dB | WR-15 Waveguide |
| SWF-65302350-15-B1 | | 63.8 GHz | 65.8 GHz | DC | 58.8 GHz | 70.8 GHz | 78.8 GHz | 50 dB | WR-15 Waveguide |
| SWF-65304340-12-B1 | | 63 GHz | 67 GHz | DC | 57 GHz | 73 GHz | 85 GHz | 40 dB | WR-12 Waveguide |
| SWF-70302340-12-B1 | | 69 GHz | 71 GHz | DC | 66 GHz | 74 GHz | 90 GHz | 40 dB | WR-12 Waveguide |
| SWF-80320340-12-B1 | | 70 GHz | 90 GHz | DC | 60 GHz | 93.3 GHz | 130 GHz | 40 dB | WR-12 Waveguide |
| SWF-74305350-12-B1 | | 71 GHz | 76 GHz | DC | 67 GHz | 81 GHz | 105 GHz | 50 dB | WR-12 Waveguide |
| SWF-74305350-10-B1 | | 71 GHz | 76 GHz | DC | 67 GHz | 81 GHz | 105 GHz | 50 dB | WR-10 Waveguide |
| SWF-74301330-12-B1 | | 73 GHz | 74 GHz | DC | 70 GHz | 76.5 GHz | 95 GHz | 30 dB | WR-12 Waveguide |
| SWF-75303340-12-B1 | | 73 GHz | 76 GHz | DC | 67 GHz | 82 GHz | 100 GHz | 40 dB | WR-12 Waveguide |
| SWF-75302340-12-B1 | | 74 GHz | 76 GHz | DC | 70 GHz | 80 GHz | 100 GHz | 40 dB | WR-12 Waveguide |
| SWF-77303350-12-B1 | | 75 GHz | 78 GHz | DC | 71 GHz | 82 GHz | 100 GHz | 50 dB | WR-12 Waveguide |
| SWF-80310340-10-B1 | | 75 GHz | 85 GHz | 60 GHz | 70 GHz | 90 GHz | 100 GHz | 40 dB | WR-10 Waveguide |
| SWF-77301350-12-B1-1 | | 76 GHz | 77 GHz | DC | 74.5 GHz | 78.5 GHz | 90.0 GHz | 50 dB | WR-10 Waveguide |
| SWF-79305340-12-B1 | | 76 GHz | 81 GHz | DC | 73 GHz | 84 GHz | 105 GHz | 40 dB | WR-12 Waveguide |
| SWF-82308360-10-B1 | | 78 GHz | 86 GHz | 60 GHz | 73 GHz | 91 GHz | 110 GHz | 60 dB | WR-10 Waveguide |
| SWF-84305350-10-B1 | | 81 GHz | 86 GHz | DC | 78 GHz | 88 GHz | 120 GHz | 50 dB | WR-10 Waveguide |
| SWF-84305350-12-B1 | | 81 GHz | 86 GHz | DC | 78 GHz | 90 GHz | 120 GHz | 50 dB | WR-12 Waveguide |
| SWF-84306330-12-B1 | | 81 GHz | 87 GHz | DC | 78 GHz | 90 GHz | 120 GHz | 30 dB | WR-12 Waveguide |
| SWF-84303340-10-B1 | | 82.5 GHz | 85.5 GHz | DC | 79 GHz | 93.5 GHz | 110 GHz | 40 dB | WR-10 Waveguide |
| SWF-85305340-12-B1 | | 82.5 GHz | 87 GHz | DC | 80 GHz | 90 GHz | 120 GHz | 40 dB | WR-12 Waveguide |
| SWF-90308340-10-B1 | | 86 GHz | 94 GHz | DC | 82 GHz | 98 GHz | 106 GHz | 25 dB | WR-10 Waveguide |
| SWF-94308340-10-B1 | | 90 GHz | 98 GHz | DC | 86 GHz | 104 GHz | 110 GHz | 40 dB | WR-10 Waveguide |
| SWF-94303320-10-B1 | | 92.5 GHz | 95.5 GHz | DC | 91.5 GHz | 97 GHz | 97.5 GHz | 20 dB | WR-10 Waveguide |
| SWF-96308350-10-B1 | | 92 GHz | 100 GHz | DC | 88 GHz | 104 GHz | 110 GHz | 50 dB | WR-10 Waveguide |
| SWF-94304340-10-B1 | | 92 GHz | 96 GHz | DC | 90 GHz | 98 GHz | 130 GHz | 40 dB | WR-10 Waveguide |
| SWF-94302340-10-B1 | | 93.2 GHz | 95.2 GHz | DC | 91 GHz | 98.5 GHz | 105 GHz | 40 dB | WR-10 Waveguide |
| SWF-94301330-10-B1 | | 93.5 GHz | 94.5 GHz | DC | 92 GHz | 96 GHz | 110 GHz | 30 dB | WR-10 Waveguide |
| SWF-95303340-10-B1 | | 93.5 GHz | 96.5 GHz | DC | 89 GHz | 100 GHz | 110 GHz | 40 dB | WR-10 Waveguide |
| SWF-94302330-10-B1 | | 93 GHz | 95 GHz | DC | 91 GHz | 97 GHz | 110 GHz | 30 dB | WR-10 Waveguide |
| SWF-97304345-10-B1 | | 95 GHz | 99 GHz | DC | 92 GHz | 102 GHz | 140 GHz | 45 dB | WR-10 Waveguide |
| SWF-10404340-10-B1 | | 98 GHz | 102 GHz | DC | 95 GHz | 105 GHz | 110 GHz | 40 dB | WR-10 Waveguide |
