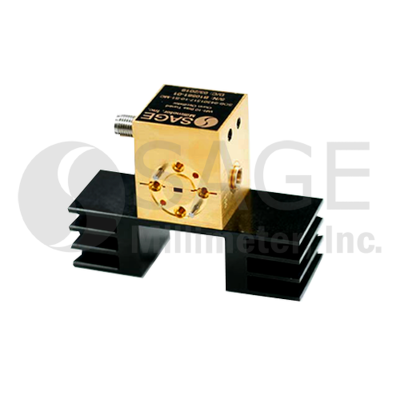

バイアス調整式ガン発振器
仕様
| Model Number | Data sheet | Center Frequency | Output Power | Mechanical Tuning Range | Bias Tuning Range (+5.0 to +6.0 VDC) | Bias | RF Port | Mechanical Tuning |
|---|---|---|---|---|---|---|---|---|
| SOB-69305217-12-S1 |  | 68.5 GHz | +17 dBm | ±100 MHz | ±250 MHz | +5.5 VDC/750 mA | WR-12 Waveguide | Self-Locking Set Screw |
| SOB-77305213-12-S1 | | 76.5 GHz | +13 dBm | ±500 MHz | - | +4.5 VDC/350 mA | WR-12 Waveguide | Self-Locking Set Screw |
| SOB-77305217-12-S1 | | 76.5 GHz | +17 dBm | ±100 MHz | - | +4.6 VDC/750 mA | WR-12 Waveguide | Self-Locking Set Screw |
| SOB-94305210-10-S1 | | 94 GHz | +10 dBm | ±500 MHz | - | +5.0 VDC/650 mA | WR-10 Waveguide | Self-Locking Set Screw |
| SOB-94301317-10-S1 | | 94 GHz | +17 dBm | ±100 MHz | - | +4.0 VDC/750 mA | WR-10 Waveguide | Self-Locking Set Screw |
| SOB-75305218-12-S1 | | 75 GHz | +18 dBm | ±1 Gz | - | +10.5 VDC/250 mA | WR-12 Waveguide | Self-Locking Set Screw |
| SOB-60305213-15-S1 | | 60 GHz | +13 dBm | ±1 GHz | ±250 MHz | +4.0 to +6.0 VDC/350 mA | WR-15 Waveguide | Self-Locking Set Screw |
| SOB-60305217-15-S1 | | 60 GHz | +17 dBm | ±1 GHz | ±250 MHz | +4.0 to +6.0 VDC/750 mA | WR-15 Waveguide | Self-Locking Set Screw |
