レンズ集中型アンテナ

取扱いメーカー

すぐお見積りいたします

お見積りはこちら

仕様

Model Number	Minimum Frequency	Maximum Frequency	Gain	3 dB Beamwidth (Vertical, Horizontal)	Return Loss	Polarization	Antenna Port
SAK-AL103113-90-C1	10.475 GHz	10.575 GHz	15 dBi	40°, 20°	10 dB	Linear	WR-90 Waveguide
SAK-AL113153-62-C1	10.7 GHz	15 GHz	20 dBi	50°, 10.5°	-12.0 dB	Linear	WR-62 Waveguide
SAK-AL173223-42-C1	17 GHz	22 GHz	21.5 dBi	31.5°, 6.5°	12 dB	Linear	WR-42 Rectangular Waveguide
SAL-1832232212-470-S1	17.5 GHz	22 GHz	22 dBi	-	20 dB	Linear and Circular	0.470" Circular Waveguide
SAL-2232732212-42-S1	22 GHz	26.5 GHz	22 dBi	-	-	Linear	WR-42 Waveguide
SAL-2232732212-368-S1	22 GHz	27 GHz	22 dBi	-	18 dB	Linear and Circular	0.368" Dia Circular WG
SAL-2734032220-28-S1-RL	26.5 GHz	40 GHz	22 dBi	-	-10 dB	Linear	WR-28 Waveguide
SAK-AL273313-28-C1	27 GHz	31 GHz	22 dBi	32°, 7°	12 dB	Linear	WR-28 Waveguide
SAL-3333732212-250-S1	33 GHz	37 GHz	22 dBi	-	-25 dB	Linear and Circular	0.250" Dia Circular WG
SAL-3333732212-28-S1	33 GHz	37 GHz	22 dBi	-	-25 dB	Linear	WR-28 Waveguide
SAL-2432932410-315-S1	24 GHz	29 GHz	24 dBi	-	25 dB	Linear and Circular	0.315" Dia Circular WG
SAL-2632732410-28-C1	26.3 GHz	27.2 GHz	24 dBi	-	22 dB	Linear and Circular	WR-28 Waveguide
SAL-2733232510-315-S1	27 GHz	32 GHz	25 dBi	-	20 dB	Linear and Circular	0.315" Dia Circular WG
SAL-7531142607-10-S1	75 GHz	110 GHz	26 dBi	-	20 dB	Linear	WR-10 Waveguide
SAL-2532732706-315-S1	25 GHz	27 GHz	27 dBi	-	20 dB	Linear and Circular	0.315" Dia Circular WG
SAL-2532732607-KM-S1	25 GHz	27 GHz	27 dBi	-	20 dB	Linear	2.92 mm (M)
SAL-7531142805-10-S1	75 GHz	110 GHz	28 dBi	-	25 dB	Linear	WR-10 Waveguide
SAL-3333732905-250-S1	33 GHz	37 GHz	29 dBi	-	20 dB	Linear and Circular	0.250" Dia Circular WG
SAL-3333732905-28-S1	33 GHz	37 GHz	29 dBi	-	20 dB	Linear	WR-28 Waveguide
SAK-AL233243-42-C2	23.7 GHz	24.3 GHz	30.5 dBi	-	15 dB	Linear	WR-42 Waveguide
SAL-2532733005-315-S1-599-1	25 GHz	27 GHz	30 dBi	-	20 dB	Linear and Circular	0.315" Dia Circular WG
SAL-2532733005-315-S1	25 GHz	27 GHz	30 dBi	-	-	Linear and Circular	0.315" Dia Circular WG
SAL-2532733005-315-S1-599	25 GHz	27 GHz	30 dBi	-	20 dB	Linear and Circular	0.315" Dia Circular WG
SAL-2532733005-28-S1	25 GHz	27 GHz	30 dBi	-	-20 dB	Linear	WR-28 Waveguide
SAL-4036033005-188-S1	40 GHz	60 GHz	30 dBi	-	25 dB	Linear and Circular	0.188" Dia Circular WG
SAL-7138633004-125-S1	71 GHz	86 GHz	30 dBi	-	25 dB	Linear and Circular	0.125" Dia Circular WG
SAL-7138633004-12-S1	71 GHz	86 GHz	30 dBi	-	25 dB	Linear	WR-12 Waveguide
SAL-7531143004-094-S1	75 GHz	110 GHz	30 dBi	-	20 dB	Linear and Circular	0.094" Dia Circular WG

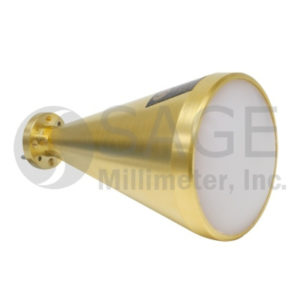

SAL-7531143004-10-S1	75 GHz	110 GHz	30 dBi	-	-25 dB	Linear	WR-10 Waveguide
SAK-AL223263-42-C1	23.7 GHz	24.3 GHz	31 dBi	10.4°, 3°	15 dB	Linear	WR-42 Waveguide

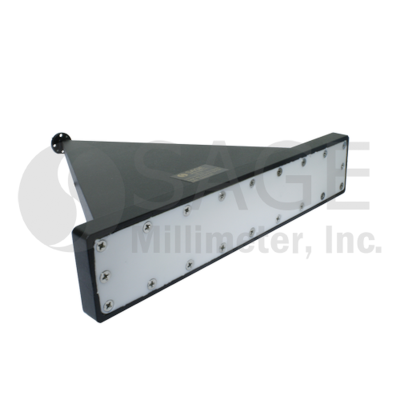

SAK-AL773773-12-C2	76.9 GHz	77.1 GHz	33 dBi	-	14 dB	Linear	WR-12 Waveguide
SAL-7138633602-125-S1	71 GHz	86 GHz	36 dBi	-	20 dB	Linear and Circular	0.125" Dia Circular WG
SAL-7138633602-10-S1	71 GHz	86 GHz	36 dBi	-	20 dB	Linear	WR-10 Waveguide
