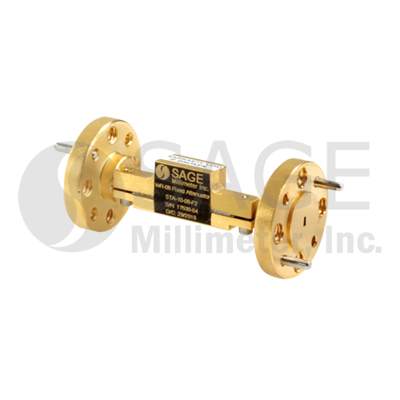

スタンダート導波管固定アッテネータ

取扱いメーカー

すぐお見積りいたします

お見積りはこちら

Model Number	Minimum Frequency	Maximum Frequency	Attenuation	Return Loss	Power Handling	RF Port	Attenuator Type
STA-10-06-F3	110 GHz	170 GHz	10 dB @ 140 GHz	16 dB	0.3 W	WR-06 Waveguide	Fixed
STA-10-06-F1	110 GHz	170 GHz	10 dB @ 140 GHz	20 dB	300 mW	WR-06 Waveguide	Fixed
STA-10-06-F2	110 GHz	170 GHz	10 dB @ 140 GHz	16 dB	0.50 W	WR-06 Waveguide	Fixed
STA-20-06-F3	110 GHz	170 GHz	20 dB @ 140 GHz	16 dB	0.3 W	WR-06 Waveguide	Fixed
STA-20-06-F1	110 GHz	170 GHz	20 dB @ 140 GHz	20 dB	300 mW	WR-06 Waveguide	Fixed
STA-20-06-F2	110 GHz	170 GHz	20 dB @ 140 GHz	16 dB	0.50 W	WR-06 Waveguide	Fixed
STA-03-06-F3	110 GHz	170 GHz	3 dB @ 140 GHz	16 dB	0.3 W	WR-06 Waveguide	Fixed
STA-03-06-F1	110 GHz	170 GHz	3 dB @ 140 GHz	20 dB	300 mW	WR-06 Waveguide	Fixed
STA-03-06-F2	110 GHz	170 GHz	3 dB @ 140 GHz	16 dB	0.50 W	WR-06 Waveguide	Fixed
STA-30-06-F3	110 GHz	170 GHz	30 dB @ 140 GHz	16 dB	0.3 W	WR-06 Waveguide	Fixed
STA-30-06-F1	110 GHz	170 GHz	30 dB @ 140 GHz	20 dB	300 mW	WR-06 Waveguide	Fixed
STA-30-06-F2	110 GHz	170 GHz	30 dB @ 140 GHz		0.30 W	WR-06 Waveguide	Fixed
STA-06-06-F3	110 GHz	170 GHz	6 dB @ 140 GHz	16 dB	0.3 W	WR-06 Waveguide	Fixed
STA-06-06-F1	110 GHz	170 GHz	6 dB @ 140 GHz	20 dB	300 mW	WR-06 Waveguide	Fixed
STA-06-06-F2	110 GHz	170 GHz	6 dB @ 140 GHz	16 dB	0.50 W	WR-06 Waveguide	Fixed
STA-10-05-F2	140 GHz	220 GHz	10 dB @ 180 GHz	16 dB	0.3 W	WR-05 Waveguide	Fixed
STA-20-05-F2	140 GHz	220 GHz	20 dB @ 180 GHz	16 dB	0.3 W	WR-05 Waveguide	Fixed
STA-03-05-F2	140 GHz	220 GHz	3 dB @ 180 GHz	16 dB	0.3 W	WR-05 Waveguide	Fixed
STA-30-05-F2	140 GHz	220 GHz	30 dB @ 180 GHz	16 dB	0.3 W	WR-05 Waveguide	Fixed
STA-06-05-F2	140 GHz	220 GHz	6 dB @ 180 GHz	16 dB	0.3 W	WR-05 Waveguide	Fixed
STA-10-04-F2	170 GHz	260 GHz	10 dB @ 215 GHz	16 dB	0.3 W	WR-04 Waveguide	Fixed
STA-20-04-F2	170 GHz	260 GHz	20 dB @ 215 GHz	16 dB	0.3 W	WR-04 Waveguide	Fixed
STA-03-04-F2	170 GHz	260 GHz	3 dB @ 215 GHz	16 dB	0.3 W	WR-04 Waveguide	Fixed
STA-30-04-F2	170 GHz	260 GHz	30 dB @ 215 GHz	16 dB	0.3 W	WR-04 Waveguide	Fixed
STA-06-04-F2	170 GHz	260 GHz	6 dB @ 215 GHz	16 dB	0.3 W	WR-04 Waveguide	Fixed
STA-10-42-F2	18 GHz	26.5 GHz	10 dB @ 22.25 GHz		0.75 W	WR-42 Waveguide	Fixed
STA-20-42-F2	18 GHz	26.5 GHz	20 dB @ 22.25 GHz		0.75 W	WR-42 Waveguide	Fixed
STA-03-42-F2	18 GHz	26.5 GHz	3 dB @ 22.25 GHz		0.75 W	WR-42 Waveguide	Fixed
STA-30-42-F2	18 GHz	26.5 GHz	30 dB @ 22.25 GHz		0.75 W	WR-42 Waveguide	Fixed
STA-40-42-F2	18 GHz	26.5 GHz	40 dB @ 22.25 GHz		0.75 W	WR-42 Waveguide	Fixed
STA-06-42-F2	18 GHz	26.5 GHz	6 dB @ 22.25 GHz		0.75 W	WR-42 Waveguide	Fixed
STA-03-42-F1	18 GHz	26.5 GHz	03 dB @ 22.25 GHz	20 dB	0.75 W	WR-42 Waveguide	Fixed
STA-06-42-F1	18 GHz	26.5 GHz	06 dB @ 22.25 GHz	20 dB	0.75 W	WR-42 Waveguide	Fixed
STA-10-42-F1	18 GHz	26.5 GHz	10 dB @ 22.25 GHz	20 dB	0.75 W	WR-42 Waveguide	Fixed
STA-20-42-F1	18 GHz	26.5 GHz	20 dB @ 22.25 GHz	20 dB	0.75 W	WR-42 Waveguide	Fixed
STA-30-42-F1	18 GHz	26.5 GHz	30 dB @ 22.25 GHz	20 dB	0.75 W	WR-42 Waveguide	Fixed
STA-40-42-F1	18 GHz	26.5 GHz	40 dB @ 22.25 GHz	20 dB	0.75 W	WR-42 Waveguide	Fixed
STA-50-42-F1	18 GHz	26.5 GHz	50 dB @ 22.25 GHz	20 dB	0.75 W	WR-42 Waveguide	Fixed
STA-03-34-F1	22 GHz	33 GHz	03 dB @ 27.5 GHz	20 dB	0.75 W	WR-34 Waveguide	Fixed
STA-06-34-F1	22 GHz	33 GHz	06 dB @ 27.5 GHz	20 dB	0.75 W	WR-34 Waveguide	Fixed
STA-10-34-F1	22 GHz	33 GHz	10 dB @ 27.5 GHz	20 dB	0.75 W	WR-34 Waveguide	Fixed
STA-10-34-F2	22 GHz	33 GHz	10 dB @ 27.5 GHz	23 dB	0.75 W	WR-34 Waveguide	Fixed
STA-20-34-F1	22 GHz	33 GHz	20 dB @ 27.5 GHz	20 dB	0.75 W	WR-34 Waveguide	Fixed
STA-20-34-F2	22 GHz	33 GHz	20 dB @ 27.5 GHz	23 dB	0.75 W	WR-34 Waveguide	Fixed
STA-03-34-F2	22 GHz	33 GHz	3 dB @ 27.5 GHz	23 dB	0.75 W	WR-34 Waveguide	Fixed
STA-30-34-F1	22 GHz	33 GHz	30 dB @ 27.5 GHz	20 dB	0.75 W	WR-34 Waveguide	Fixed
STA-30-34-F2	22 GHz	33 GHz	30 dB @ 27.5 GHz	23 dB	0.75 W	WR-34 Waveguide	Fixed
STA-40-34-F1	22 GHz	33 GHz	40 dB @ 27.5 GHz	20 dB	0.75 W	WR-34 Waveguide	Fixed
STA-50-34-F1	22 GHz	33 GHz	50 dB @ 27.5 GHz	20 dB	0.75 W	WR-34 Waveguide	Fixed
STA-06-34-F2	22 GHz	33 GHz	6 dB @ 27.5 GHz	23 dB	0.75 W	WR-34 Waveguide	Fixed
STA-10-03-F2	220 GHz	325 GHz	10 dB @ 272.5 GHz	16 dB	0.3 W	WR-03 Waveguide	Fixed
STA-20-03-F2	220 GHz	325 GHz	20 dB @ 272.5 GHz	16 dB	0.3 W	WR-03 Waveguide	Fixed
STA-03-03-F2	220 GHz	325 GHz	3 dB @ 272.5 GHz	16 dB	0.3 W	WR-03 Waveguide	Fixed
STA-30-03-F2	220 GHz	325 GHz	30 dB @ 272.5 GHz	16 dB	0.3 W	WR-03 Waveguide	Fixed
STA-06-03-F2	220 GHz	325 GHz	6 dB @ 272.5 GHz	16 dB	0.3 W	WR-03 Waveguide	Fixed
STA-10-28-F2	26.5 GHz	40 GHz	10 dB @ 32.25 GHz		0.75 W	WR-28 Waveguide	Fixed
STA-20-28-F2	26.5 GHz	40 GHz	20 dB @ 32.25 GHz		0.75 W	WR-28 Waveguide	Fixed
STA-03-28-F2	26.5 GHz	40 GHz	3 dB @ 32.25 GHz		0.75 W	WR-28 Waveguide	Fixed
STA-30-28-F2	26.5 GHz	40 GHz	30 dB @ 32.25 GHz		0.75 W	WR-28 Waveguide	Fixed
STA-40-28-F2	26.5 GHz	40 GHz	40 dB @ 33.25 GHz		0.75 W	WR-28 Waveguide	Fixed
STA-50-28-F2	26.5 GHz	40 GHz	50 dB @ 32.25 GHz		0.75 W	WR-28 Waveguide	Fixed
STA-06-28-F2	26.5 GHz	40 GHz	6 dB @ 32.25 GHz		0.75 W	WR-28 Waveguide	Fixed
STA-03-28-F1	26.5 GHz	40 GHz	03 dB @ 33.25 GHz	20 dB	0.75 W	WR-28 Waveguide	Fixed
STA-06-28-F1	26.5 GHz	40 GHz	06 dB @ 33.25 GHz	20 dB	0.75 W	WR-28 Waveguide	Fixed
STA-10-28-F1	26.5 GHz	40 GHz	10 dB @ 33.25 GHz	20 dB	0.75 W	WR-28 Waveguide	Fixed
STA-20-28-F1	26.5 GHz	40 GHz	20 dB @ 33.25 GHz	20 dB	0.75 W	WR-28 Waveguide	Fixed
STA-30-28-F1	26.5 GHz	40 GHz	30 dB @ 33.25 GHz	20 dB	0.75 W	WR-28 Waveguide	Fixed
STA-40-28-F1	26.5 GHz	40 GHz	40 dB @ 33.25 GHz	20 dB	0.75 W	WR-28 Waveguide	Fixed
STA-50-28-F1	26.5 GHz	40 GHz	50 dB @ 33.25 GHz	20 dB	0.75 W	WR-28 Waveguide	Fixed
STA-10-22-F1	33 GHz	50 GHz	10 dB @ 41.5 GHz	20 dB	0.5 W	WR-22 Waveguide	Fixed
STA-10-22-F2	33 GHz	50 GHz	10 dB @ 41.5 GHz	21 dB	500 mW	WR-22 Waveguide	Fixed
STA-20-22-F1	33 GHz	50 GHz	20 dB @ 41.5 GHz	20 dB	0.5 W	WR-22 Waveguide	Fixed
STA-20-22-F2	33 GHz	50 GHz	20 dB @ 41.5 GHz		0.50 W	WR-22 Waveguide	Fixed
STA-03-22-F1	33 GHz	50 GHz	3 dB @ 41.5 GHz	20 dB	0.5 W	WR-22 Waveguide	Fixed
STA-03-22-F2	33 GHz	50 GHz	3 dB @ 41.5 GHz	21 dB	500 mW	WR-22 Waveguide	Fixed
STA-30-22-F1	33 GHz	50 GHz	30 dB @ 41.5 GHz	20 dB	0.5 W	WR-22 Waveguide	Fixed
STA-30-22-F2	33 GHz	50 GHz	30 dB @ 41.5 GHz	21 dB	500 mW	WR-22 Waveguide	Fixed
STA-40-22-F1	33 GHz	50 GHz	40 dB @ 41.5 GHz	20 dB	0.5 W	WR-22 Waveguide	Fixed
STA-40-22-F2	33 GHz	50 GHz	40 dB @ 41.5 GHz		0.50 W	WR-22 Waveguide	Fixed
STA-50-22-F1	33 GHz	50 GHz	50 dB @ 41.5 GHz	20 dB	0.5 W	WR-22 Waveguide	Fixed
STA-50-22-F2	33 GHz	50 GHz	50 dB @ 41.5 GHz	21 dB	500 mW	WR-22 Waveguide	Fixed
STA-06-22-F1	33 GHz	50 GHz	6 dB @ 41.5 GHz	20 dB	0.5 W	WR-22 Waveguide	Fixed
STA-06-22-F2	33 GHz	50 GHz	6 dB @ 41.5 GHz	21 dB	500 mW	WR-22 Waveguide	Fixed
STA-10-19-F1	40 GHz	60 GHz	10 dB @ 50 GHz	20 dB	0.5 W	WR-19 Waveguide	Fixed
STA-10-19-F2	40 GHz	60 GHz	10 dB @ 50 GHz	21 dB	500 mW	WR-19 Waveguide	Fixed
STA-20-19-F1	40 GHz	60 GHz	20 dB @ 50 GHz	20 dB	0.5 W	WR-19 Waveguide	Fixed
STA-20-19-F2	40 GHz	60 GHz	20 dB @ 50 GHz	21 dB	500 mW	WR-19 Waveguide	Fixed
STA-03-19-F1	40 GHz	60 GHz	3 dB @ 50 GHz	20 dB	0.5 W	WR-19 Waveguide	Fixed
STA-03-19-F2	40 GHz	60 GHz	3 dB @ 50 GHz	21 dB	500 mW	WR-19 Waveguide	Fixed
STA-30-19-F1	40 GHz	60 GHz	30 dB @ 50 GHz	20 dB	0.5 W	WR-19 Waveguide	Fixed
STA-30-19-F2	40 GHz	60 GHz	30 dB @ 50 GHz	21 dB	500 mW	WR-19 Waveguide	Fixed
STA-40-19-F1	40 GHz	60 GHz	40 dB @ 50 GHz	20 dB	0.5 W	WR-19 Waveguide	Fixed
STA-40-19-F2	40 GHz	60 GHz	40 dB @ 50 GHz		0.50 W	WR-19 Waveguide	Fixed
STA-50-19-F1	40 GHz	60 GHz	50 dB @ 50 GHz	20 dB	0.5 W	WR-19 Waveguide	Fixed
STA-50-19-F2	40 GHz	60 GHz	50 dB @ 50 GHz		0.50 W	WR-19 Waveguide	Fixed
STA-06-19-F1	40 GHz	60 GHz	6 dB @ 50 GHz	20 dB	0.5 W	WR-19 Waveguide	Fixed
STA-06-19-F2	40 GHz	60 GHz	6 dB @ 50 GHz	21 dB	500 mW	WR-19 Waveguide	Fixed
STA-10-15-F1	50 GHz	75 GHz	10 dB @ 62.5 GHz	20 dB	0.5 W	WR-15 Waveguide	Fixed
STA-10-15-F2	50 GHz	75 GHz	10 dB @ 62.5 GHz		0.50 W	WR-15 Waveguide	Fixed
STA-20-15-F1	50 GHz	75 GHz	20 dB @ 62.5 GHz	20 dB	0.5 W	WR-15 Waveguide	Fixed
STA-20-15-F2	50 GHz	75 GHz	20 dB @ 62.5 GHz		0.50 W	WR-15 Waveguide	Fixed
STA-03-15-F1	50 GHz	75 GHz	3 dB @ 62.5 GHz	20 dB	0.5 W	WR-15 Waveguide	Fixed
STA-30-15-F1	50 GHz	75 GHz	30 dB @ 62.5 GHz	20 dB	0.5 W	WR-15 Waveguide	Fixed
STA-30-15-F2	50 GHz	75 GHz	30 dB @ 62.5 GHz		0.50 W	WR-15 Waveguide	Fixed
STA-40-15-F1	50 GHz	75 GHz	40 dB @ 62.5 GHz	20 dB	0.5 W	WR-15 Waveguide	Fixed
STA-50-15-F1	50 GHz	75 GHz	50 dB @ 62.5 GHz	20 dB	0.5 W	WR-15 Waveguide	Fixed
STA-50-15-F2	50 GHz	75 GHz	50 dB @ 62.5 GHz		0.50 W	WR-15 Waveguide	Fixed
STA-06-15-F1	50 GHz	75 GHz	6 dB @ 62.5 GHz	20 dB	0.5 W	WR-15 Waveguide	Fixed
STA-06-15-F2	50 GHz	75 GHz	6 dB @ 62.5 GHz		0.50 W	WR-15 Waveguide	Fixed
STA-10-12-F1	60 GHz	90 GHz	10 dB @ 75 GHz	20 dB	0.5 W	WR-12 Waveguide	Fixed
STA-10-12-F2	60 GHz	90 GHz	10 dB @ 75 GHz		0.50 W	WR-12 Waveguide	Fixed
STA-20-12-F1	60 GHz	90 GHz	20 dB @ 75 GHz	20 dB	0.5 W	WR-12 Waveguide	Fixed
STA-20-12-F2	60 GHz	90 GHz	20 dB @ 75 GHz		0.50 W	WR-12 Waveguide	Fixed
STA-03-12-F1	60 GHz	90 GHz	3 dB @ 75 GHz	20 dB	0.5 W	WR-12 Waveguide	Fixed
STA-30-12-F1	60 GHz	90 GHz	30 dB @ 75 GHz	20 dB	0.5 W	WR-12 Waveguide	Fixed
STA-30-12-F2	60 GHz	90 GHz	30 dB @ 75 GHz		0.50 W	WR-12 Waveguide	Fixed
STA-40-12-F1	60 GHz	90 GHz	40 dB @ 75 GHz	20 dB	0.5 W	WR-12 Waveguide	Fixed
STA-40-12-F2	60 GHz	90 GHz	40 dB @ 75 GHz	21 dB	500 mW	WR-12 Waveguide	Fixed
STA-50-12-F1	60 GHz	90 GHz	50 dB @ 75 GHz	20 dB	0.5 W	WR-12 Waveguide	Fixed
STA-50-12-F2	60 GHz	90 GHz	50 dB @ 75 GHz	21 dB	500 mW	WR-12 Waveguide	Fixed
STA-06-12-F1	60 GHz	90 GHz	6 dB @ 75 GHz	20 dB	0.5 W	WR-12 Waveguide	Fixed
STA-06-12-F2	60 GHz	90 GHz	6 dB @ 75 GHz		0.50 W	WR-12 Waveguide	Fixed
STA-10-10-F1	75 GHz	110 GHz	10 dB @ 92.5 GHz	20 dB	0.5 W	WR-10 Waveguide	Fixed
STA-20-10-F1	75 GHz	110 GHz	20 dB @ 92.5 GHz	20 dB	0.5 W	WR-10 Waveguide	Fixed
STA-20-10-F2	75 GHz	110 GHz	20 dB @ 92.5 GHz		0.50 W	WR-10 Waveguide	Fixed
STA-03-10-F1	75 GHz	110 GHz	3 dB @ 92.5 GHz	20 dB	0.5 W	WR-10 Waveguide	Fixed
STA-03-10-F2	75 GHz	110 GHz	3 dB @ 92.5 GHz		0.50 W	WR-10 Waveguide	Fixed
STA-30-10-F1	75 GHz	110 GHz	30 dB @ 92.5 GHz	20 dB	0.5 W	WR-10 Waveguide	Fixed
STA-30-10-F2	75 GHz	110 GHz	30 dB @ 92.5 GHz		0.50 W	WR-10 Waveguide	Fixed
STA-40-10-F1	75 GHz	110 GHz	40 dB @ 92.5 GHz	20 dB	0.5 W	WR-10 Waveguide	Fixed
STA-50-10-F1	75 GHz	110 GHz	50 dB @ 92.5 GHz	20 dB	0.5 W	WR-10 Waveguide	Fixed
STA-06-10-F1	75 GHz	110 GHz	6 dB @ 92.5 GHz	20 dB	0.5 W	WR-10 Waveguide	Fixed
STA-10-08-F3	90 GHz	140 GHz	10 dB @ 115 GHz	16 dB	0.3 W	WR-08 Waveguide	Fixed
STA-10-08-F1	90 GHz	140 GHz	10 dB @ 115 GHz	20 dB	300 mW	WR-08 Waveguide	Fixed
STA-10-08-F2	90 GHz	140 GHz	10 dB @ 115 GHz	16 dB	0.50 W	WR-08 Waveguide	Fixed
STA-20-08-F3	90 GHz	140 GHz	20 dB @ 115 GHz	16 dB	0.3 W	WR-08 Waveguide	Fixed
STA-20-08-F1	90 GHz	140 GHz	20 dB @ 115 GHz	20 dB	300 mW	WR-08 Waveguide	Fixed
STA-20-08-F2	90 GHz	140 GHz	20 dB @ 115 GHz	16 dB	0.50 W	WR-08 Waveguide	Fixed
STA-03-08-F3	90 GHz	140 GHz	3 dB @ 115 GHz	16 dB	0.3 W	WR-08 Waveguide	Fixed
STA-03-08-F1	90 GHz	140 GHz	3 dB @ 115 GHz	20 dB	300 mW	WR-08 Waveguide	Fixed
STA-03-08-F2	90 GHz	140 GHz	3 dB @ 115 GHz	16 dB	0.50 W	WR-08 Waveguide	Fixed
STA-30-08-F3	90 GHz	140 GHz	30 dB @ 115 GHz	16 dB	0.3 W	WR-08 Waveguide	Fixed
STA-30-08-F1	90 GHz	140 GHz	30 dB @ 115 GHz	20 dB	300 mW	WR-08 Waveguide	Fixed
STA-30-08-F2	90 GHz	140 GHz	30 dB @ 115 GHz	16 dB	0.50 W	WR-08 Waveguide	Fixed
STA-06-08-F3	90 GHz	140 GHz	6 dB @ 115 GHz	16 dB	0.3 W	WR-08 Waveguide	Fixed
STA-06-08-F1	90 GHz	140 GHz	6 dB @ 115 GHz	20 dB	300 mW	WR-08 Waveguide	Fixed
STA-06-08-F2	90 GHz	140 GHz	6 dB @ 115 GHz	16 dB	0.50 W	WR-08 Waveguide	Fixed
