導波管接続狭帯域アイソレータ
仕様
| Model Number | Data sheet | Minimum Frequency | Maximum Frequency | Insertion Loss | Isolation | Return Loss | Forward Power Handling | Reverse Power Handling | RF Port | Device Type |
|---|---|---|---|---|---|---|---|---|---|---|
| SNW-1041141018-10-C1 | 104 GHz | 111 GHz | 1.0 dB | 18 dB | 16 dB | 3 W (CW) | 3 W (CW) | WR-10 Waveguide | Circulator | |
| SNW-1041141018-10-C1-2 |  | 101 GHz | 109 GHz | 1.0 dB | 18 dB | 15 dB | 3 W (CW) Max | 3 W (CW) Max | WR-10 Waveguide | Circulator |
| SNW-1041141018-10-I1 | 104 GHz | 111 GHz | 1.0 dB | 18 dB | 16 dB | 3 W (CW) | 3 W (CW) | WR-10 Waveguide | Isolator | |
| SNW-1041141018-10-I1-2 | 101 GHz | 109 GHz | 1.0 dB | 18 dB | 15 dB | 3 W (CW) | 3 W (CW) | WR-10 Waveguide | Isolator | |
| SNW-1731930220-42-I1 | | 17.2 GHz | 19.4 GHz | 0.2 dB | 20 dB | - | 5 W (CW) | 1 W (CW) | WR-42 Waveguide | Isolator |
| SNW-1731930220-42-I1-WP | 17.2 GHz | 19.4 GHz | 0.2 dB | 20 dB | 15 dB | 5 W (CW) | 1 W (CW) | WR-42 Waveguide | Isolator | |
| SNW-1832130418-51-I1 | | 18 GHz | 21 GHz | 0.4 dB | 20 dB | - | 5 W (CW) | 2 W (CW) | WR-51 Waveguide | Isolator |
| SNW-1932130420-42-IE-V | 18.6 GHz | 21.4 GHz | 0.4 dB | 20 dB | 20 dB | 10 W (CW) | 5 W (CW) | WR-42 Waveguide | Isolator | |
| SNW-2232730318-42-CI | | 22 GHz | 26.5 GHz | 0.3 dB | 18 dB | 17 dB | - | - | WR-42 Waveguide | Circulator |
| SNW-2732930320-28-IE | 26.5 GHz | 29 GHz | 0.3 dB | 20 dB | 15 dB | 8 W (CW) | 2 W (CW) | WR-28 Waveguide | Isolator | |
| SNW-2732930420-28-CE | 27 GHz | 29 GHz | 0.4 dB | 20 dB | 18 dB | 1 W (CW) | WR-28 Waveguide | Circulator | ||
| SNW-2732930421-28-C8 | | 27 GHz | 29 GHz | 0.35 dB | 21 dB | 20 dB | - | - | WR-28 Waveguide | Circulator |
| SNW-2933030325-28-I8 | | 29 GHz | 30 GHz | 0.3 dB | 25 dB | 20 dB | 2 W | 0.5 W | WR-28 Waveguide | Isolator |
| SNW-2933030325-28-I8-WP | 29 GHz | 30 GHz | 0.3 dB | 25 dB | 20 dB | 2 W | 0.5 W | WR-28 Waveguide | Isolator | |
| SNW-2933130320-28-I1 | | 29 GHz | 31 GHz | 0.3 dB | 20 dB | - | 3 W (CW) | 1 W (CW) | WR-28 Waveguide | Isolator |
| SNW-3333630420-28-CE | 33 GHz | 36 GHz | 0.4 dB | 20 dB | 15 dB | 15 W (CW) | 5 W (CW) | WR-28 Waveguide | Circulator | |
| SNW-3433630320-28-C2 | | 34 GHz | 36 GHz | 0.3 dB | 20 dB | 15 dB | 3 W (CW) | 1 W (CW) | WR-28 Waveguide | Circulator |
| SNW-3433630320-28-I1 | | 34 GHz | 36 GHz | 0.3 dB | 20 dB | - | 3 W (CW) | 1 W (CW) | WR-28 Waveguide | Isolator |
| SNW-3433630518-28-I8-1 | | 33.6 GHz | 36.4 GHz | 0.5 dB | 18 dB | - | 2 W (CW) | 0.5 W (CW) | WR-28 Waveguide | Isolator |
| SNW-3533630616-28-I8-WP | 34.5 GHz | 35.5 GHz | 0.5 dB | 16 dB | 15 dB | 1 W (CW) | 1 W (CW) | WR-28 Waveguide | Isolator | |
| SNW-3734030518-28-I1 | | 37 GHz | 40 GHz | 0.5 dB | 18 dB | - | 8 W (CW) | 2 W (CW) | WR-28 Waveguide | Isolator |
| SNW-3734330518-19-IJ-V | 37 GHz | 43 GHz | 0.5 dB | 18 dB | 19 dB | 10 W (CW) | 1 W (CW) | WR-19 Waveguide | Isolator | |
| SNW-3734330518-22-IJ | 37 GHz | 43 GHz | 0.5 dB | 18 dB | 16 dB | 5 W (CW) | 1 W (CW) | WR-22 Waveguide | Isolator | |
| SNW-3734330518-22-IJ-V | 37 GHz | 43 GHz | 0.5 dB | 18 dB | 19 dB | 10 W (CW) | 1 W (CW) | WR-22 Waveguide | Isolator | |

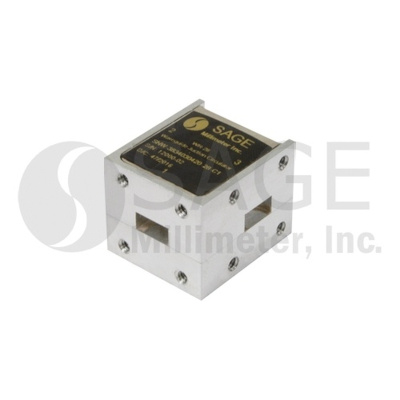

| SNW-3834030420-28-C1 | | 38 GHz | 40 GHz | 0.3 dB | 20 dB | - | 3 W (CW) | 1 W (CW) | WR-28 Waveguide | Circulator |
| SNW-3834130518-22-IJ-V | | 37.5 GHz | 40.5 GHz | 0.5 dB | 18 dB | 19 dB | 5 W (CW) | 1 W (CW) | WR-22 Waveguide | Isolator |
| SNW-3934430518-19-I1 | | 39 GHz | 44 GHz | 0.5 dB | 18 dB | 18 dB | 5 W (CW) | 1 W (CW) | WR-19 Waveguide | Isolator |
| SNW-4234630620-22-IJ1 | | 42 GHz | 46 GHz | 0.6 dB | 20 dB | 18 dB | 10 W (CW) | 5 W (CW) | WR-22 Waveguide | Isolator |

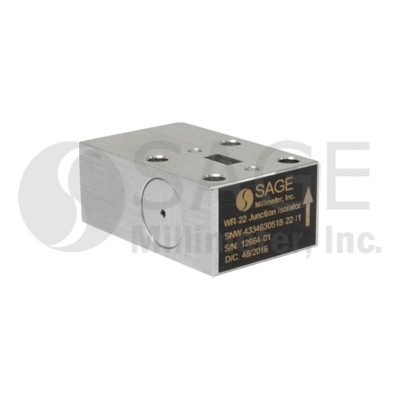

| SNW-4334630518-22-IJ-2 | | 43 GHz | 46 GHz | 0.5 dB | 18 dB | 17 dB | 5 W (CW) | - | WR-22 Waveguide | Isolator |
| SNW-4334630518-22-IJ-599 | | 43 GHz | 46 GHz | 0.5 dB | 18 dB | 17 dB | 5 W (CW) | - | WR-22 Waveguide | Isolator |
| SNW-4434630520-19-C1 | | 43.5 GHz | 45.5 GHz | 0.5 dB | 20 dB | 17 dB | - | - | WR-19 Waveguide | Circulator |
| SNW-4434630520-19-I1 | | 43.5 GHz | 45.5 GHz | 0.5 dB | 20 dB | 17 dB | - | - | WR-19 Waveguide | Isolator |
| SNW-4634830518-22-I1 | | 46 GHz | 48 GHz | 0.5 dB | 18 dB | 18 dB | 5 W (CW) | - | WR-22 Waveguide | Isolator |
| SNW-4735130518-22-CJ | | 47.2 GHz | 51.4 GHz | 0.5 dB | 18 dB | 19 dB | 5 W (CW) | 1 W (CW) | WR-22 Waveguide | Circulator |
| SNW-4735130518-22-IJ | | 47.2 GHz | 51.4 GHz | 0.5 dB | 18 dB | 19 dB | 5 W (CW) | 1 W (CW) | WR-22 Waveguide | Isolator |
| SNW-4735130518-22-IJ-V | | 47.2 GHz | 51.4 GHz | 0.5 dB | 18 dB | 19 dB | 5 W (CW) | 1 W (CW) | WR-22 Waveguide | Isolator |
| SNW-4735130518-22-IJ-WP | 47.2 GHz | 51.4 GHz | 0.5 dB | 18 dB | 19 dB | 5 W (CW) | 1 W (CW) | WR-22 Waveguide | Isolator | |
| SNW-4735230518-19-I1 | | 47 GHz | 52 GHz | 0.5 dB | 18 dB | - | 5 W (CW) | 1 W (CW) | WR-19 Waveguide | Isolator |
| SNW-5435630718-15-C1 | | 54 GHz | 56 GHz | 0.7 dB | 18 dB | - | 3 W (CW) | 1 W (CW) | WR-15 Waveguide | Circulator |
| SNW-5435631016-15-I1 | | 54 GHz | 56 GHz | 1.0 dB | 16 dB | - | 3 W (CW) | 1 W (CW) | WR-15 Waveguide | Isolator |
| SNW-5435830518-15-I1 | 54 GHz | 58 GHz | 0.5 dB | 18 dB | 15 dB | 2 W (CW) | 0.5 W (CW) | WR-15 Waveguide | Isolator | |
| SNW-5836230518-15-C1 | 58 GHz | 62 GHz | 0.5 dB | 18 dB | 18 dB | 3 W (CW) | 3 W (CW) | WR-15 Waveguide | Circulator | |
| SNW-5836230518-15-I1 | 58 GHz | 62 GHz | 0.5 dB | 18 dB | 18 dB | 3 W (CW) | 1 W (CW) | WR-15 Waveguide | Isolator | |
| SNW-5836231235-15-CM | 58 GHz | 62 GHz | 1.2 dB | 35 dB | 18 dB | 3 W (CW) | 3 W (CW) | WR-15 Waveguide | Circulator | |
| SNW-5936131016-15-C1 | | 59 GHz | 61 GHz | 1.0 dB | 16 dB | - | 3 W (CW) | 1 W (CW) | WR-15 Waveguide | Circulator |
| SNW-5936131016-15-I1 | | 59 GHz | 61 GHz | 1.0 dB | 16 dB | - | 3 W (CW) | 1 W (CW) | WR-15 Waveguide | Isolator |
| SNW-6036230718-15-C1 | | 60 GHz | 62 GHz | 0.7 dB | 18 dB | 18 dB | 3 W (CW) | 1 W (CW) | WR-15 Waveguide | Circulator |
| SNW-6436630718-15-C1 | | 64 GHz | 66 GHz | 0.7 dB | 18 dB | - | 3 W (CW) | 1 W (CW) | WR-15 Waveguide | Circulator |
| SNW-6436630818-15-I1 | | 64 GHz | 66 GHz | 0.8 dB | 18 dB | - | 3 W (CW) | 1 W (CW) | WR-15 Waveguide | Isolator |
| SNW-7137630818-12-C1 | | 71 GHz | 76 GHz | 0.8 dB | 18 dB | 16 dB | 3 W (CW) | 1 W (CW) | WR-12 Waveguide | Circulator |
| SNW-7137630818-12-I1 | | 71 GHz | 76 GHz | 0.8 dB | 18 dB | 16 dB | 3 W (CW) | 1 W (CW) | WR-12 Waveguide | Isolator |
| SNW-7437630814-12-C1-WP | 74 GHz | 76 GHz | 0.8 dB | 14 dB | 16 dB | 3 W (CW) | WR-12 Waveguide | Circulator | ||
| SNW-7537730818-12-I1 | | 75 GHz | 77 GHz | 0.8 dB | 18 dB | 15 dB | 3 W (CW) | 1 W (CW) | WR-12 Waveguide | Isolator |
| SNW-7538031535-12-CM | 75 GHz | 80 GHz | 1.5 dB | 35 dB | 16 dB | 3 W (CW) | 3 W (CW) | WR-12 Waveguide | Circulator | |
| SNW-7637831535-12-CM | | 76 GHz | 78 GHz | 1.5 dB | 35 dB | - | 3 W (CW) | 1 W (CW) | WR-12 Waveguide | Circulator |
| SNW-7638130815-12-C1-WP | 76 GHz | 81 GHz | 0.8 dB | 15 dB | 15 dB | 3 W (CW) | WR-12 Waveguide | Circulator | ||
| SNW-7638130816-12-CH-WP | 76 GHz | 81 GHz | 0.8 dB | 16 dB | 15 dB | 3 W (CW) | WR-12 Waveguide | Circulator | ||
| SNW-7638130816-12-CH-WPC | 76 GHz | 81 GHz | 0.8 dB | 16 dB | 15 dB | 3 W (CW) | WR-12 Waveguide | Circulator | ||
| SNW-7638130818-12-C1 | | 76 GHz | 81 GHz | 0.8 dB | 18 dB | 15 dB | 3 W (CW) | 1 W (CW) | WR-12 Waveguide | Circulator |
| SNW-7638130818-12-I1 | | 76 GHz | 81 GHz | 0.8 dB | 18 dB | 16 dB | 3 W (CW) | 1 W (CW) | WR-12 Waveguide | Isolator |
| SNW-7838630816-10-CH | | 78 GHz | 86 GHz | 0.8 dB | 16 dB | 16 dB | 3 W (CW) | 1 W (CW) | WR-10 Waveguide | Circulator |
| SNW-7838631015-10-IH | | 78 GHz | 86 GHz | 1.0 dB | 15 dB | 14 dB | 3 W (CW) | 1 W (CW) | WR-10 Waveguide | Isolator |
| SNW-8138630818-12-C1 | | 81 GHz | 86 GHz | 0.8 dB | 18 dB | - | 3 W (CW) | 1 W (CW) | WR-12 Waveguide | Circulator |
| SNW-8138630818-12-I1 | | 81 GHz | 86 GHz | 0.8 dB | 18 dB | 16 dB | 3 W (CW) | 1 W (CW) | WR-12 Waveguide | Isolator |
| SNW-8939131018-10-I1 | | 89 GHz | 91 GHz | 1.0 dB | 18 dB | - | 3 W (CW) | 1 W (CW) | WR-10 Waveguide | Isolator |
| SNW-9239831018-10-C1 | 92 GHz | 98 GHz | 1.0 dB | 18 dB | 3 W (CW) | 3 W (CW) | WR-10 Waveguide | Circulator | ||
| SNW-9239831018-10-C1-WPC | 93 GHz | 95 GHz | 1.0 dB | 18 dB | 3 W (CW) (Max) | 3 W (CW) (Max) | WR-10 Waveguide | Circulator | ||
| SNW-9239831018-10-I1 | 92 GHz | 98 GHz | 1.0 dB | 18 dB | 16 dB | 3 W (CW) | 1 W (CW) | WR-10 Waveguide | Isolator | |
| SNW-9239831535-10-CM | | 92 GHz | 98 GHz | 1.5 dB | 35 dB | - | 3 W (CW) | 3 W (CW) | WR-10 Waveguide | Circulator |

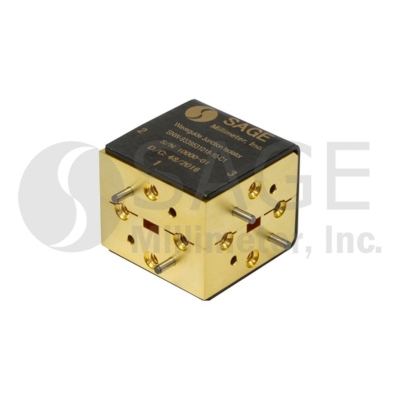

| SNW-9339531018-10-C1 | | 93 GHz | 95 GHz | 1.0 dB | 18 dB | - | 3 W (CW) | 1 W (CW) | WR-10 Waveguide | Circulator |
| SNW-9339531018-10-I1 | | 93 GHz | 95 GHz | 1.0 dB | 18 dB | - | 3 W (CW) | 1 W (CW) | WR-10 Waveguide | Isolator |
| SNW-9339531018-10-I1-WP | 93 GHz | 95 GHz | 1.0 dB | 18 dB | 3 W (CW) | 1 W (CW) | WR-10 Waveguide | Isolator | ||
| SNW-9439631535-10-CM | | 94 GHz | 96 GHz | 1.5 dB | 35 dB | 18 dB | 3 W (CW) | 3 W (CW) | WR-10 Waveguide | Circulator |
| SNW-9931041015-10-C1 | | 99 GHz | 101 GHz | 1.0 dB | 15 dB | 15 dB | 3 W (CW) Max | 1 W (CW) Max | WR-10 Waveguide | Circulator |

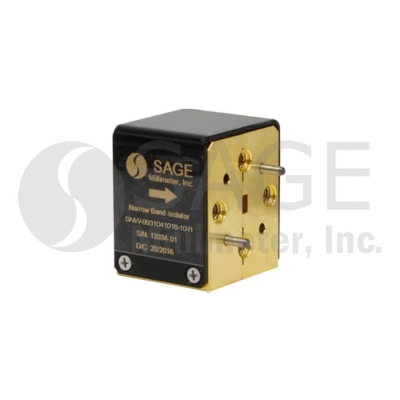

| SNW-9931041018-10-I1 | | 99 GHz | 101 GHz | 1.0 dB | 18 dB | - | 2 W (CW) | 0.5 W (CW) | WR-10 Waveguide | Isolator |
