全帯域ファラディ・アイソレータ

全帯域ファラディ・アイソレータ

取扱いメーカー

Eravant

すぐお見積りいたします

仕様

Model NumberData sheetMinimum FrequencyMaximum FrequencyInsertion LossIsolationReturn LossPower HandlingRF Port
STF-04-S1Datasheet170 GHz260 GHz4 dB30 dB15 dB0.1 WWR-04 Waveguide
STF-04-S1-M170 GHz260 GHz6.5 dB23 dB15 dB0.1 WWR-04 Waveguide
STF-05-S1Datasheet140 GHz220 GHz4 dB20 dB14 dB0.2 WWR-05 Waveguide

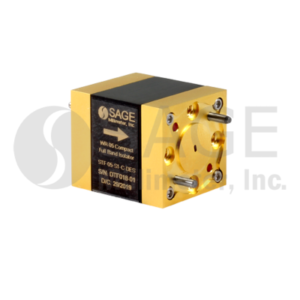

STF-05-S1-CDatasheet140 GHz220 GHz5 dB30 dB15 dB0.1 WWR-05 Waveguide
STF-05-S1-M140 GHz220 GHz4.5 dB23 dB15 dB0.1 WWR-05 Waveguide
STF-06-91Datasheet110 GHz170 GHz3.0 dB30 dB14 dB0.8 WWR-06 Waveguide
STF-06-91-CDatasheet110 GHz180 GHz3.0 dB28 dB14 dB0.8 WWR-06 Waveguide
STF-06-S1Datasheet110 GHz170 GHz3 dB30 dB-0.8 WWR-06 Waveguide
STF-06-S1-CDatasheet110 GHz170 GHz3 dB28 dB-0.8 WWR-06 Waveguide
STF-06-S1-M110 GHz170 GHz3 dB23 dB15 dB0.1 WWR-06 Waveguide
STF-08-91Datasheet90 GHz140 GHz2 dB30 dB14 dB1.0 WWR-08 Waveguide
STF-08-91-CDatasheet90 GHz140 GHz2.0 dB28 dB-0.8 WWR-08 Waveguide
STF-08-91-C90 GHz140 GHz2.5 dB28 dB14 dB0.8 WWR-08 Waveguide
STF-08-S1Datasheet90 GHz140 GHz2 dB30 dB-1.0 WWR-08 Waveguide
STF-08-S1-CDatasheet90 GHz140 GHz2 dB28 dB-0.8 WWR-08 Waveguide
STF-08-S1-M90 GHz140 GHz2 dB23 dB15 dB0.1 WWR-08 Waveguide
STF-10-91Datasheet75 GHz110 GHz1.5 dB28 dB-1.0 WWR-10 Waveguide
STF-10-91-CDatasheet75 GHz110 GHz1.5 dB28 dB-1.0 WWR-10 Waveguide
STF-10-91-M275 GHz110 GHz1.8 dB23 dB15 dB0.1 WWR-10 Waveguide
STF-10-S1Datasheet75 GHz110 GHz1.5 dB28 dB-1.0 WWR-10 Waveguide
STF-10-S1-CDatasheet75 GHz110 GHz1.5 dB28 dB-1.0 WWR-10 Waveguide
STF-10-S1-M75 GHz110 GHz1.8 dB23 dB15 dB0.1 WWR-10 Waveguide
STF-10-S1-M275 GHz110 GHz1.8 dB23 dB15 dB0.1 WWR-10 Waveguide
STF-12-91Datasheet60 GHz90 GHz1.5 dB28 dB-1.2 WWR-12 Waveguide
STF-12-91-CDatasheet60 GHz90 GHz1.5 dB28 dB14 dB1.2 WWR-12 Waveguide
STF-12-91-M260 GHz90 GHz1.8 dB23 dB15 dB0.1 WWR-12 Waveguide
STF-12-S1Datasheet60 GHz90 GHz1.5 dB28 dB-1.2 WWR-12 Waveguide
STF-12-S1-CDatasheet60 GHz90 GHz1.5 dB28 dB-1.2 WWR-12 Waveguide
STF-12-S1-M60 GHz90 GHz1.8 dB23 dB15 dB0.1 WWR-12 Waveguide
STF-12-S1-RHDatasheet60 GHz90 GHz1.5 dB28 dB-1.0 WWR-12 Waveguide
STF-15-91Datasheet50 GHz75 GHz1.5 dB28 dB-1 WWR-15 Waveguide
STF-15-91-CDatasheet50 GHz75 GHz1.5 dB28 dB14 dB1.5 WWR-15 Waveguide
STF-15-S1Datasheet50 GHz75 GHz1.5 dB28 dB-1.5 WWR-15 Waveguide
STF-15-S1-CDatasheet50 GHz75 GHz1.5 dB28 dB-1.5 WWR-15 Waveguide
STF-15-S1-M50 GHz75 GHz1.8 dB23 dB15 dB0.1 WWR-15 Waveguide
STF-19-91Datasheet40 GHz60 GHz1.3 dB28 dB14 dB1.5 WWR-19 Waveguide
STF-19-S1Datasheet40 GHz60 GHz1.3 dB28 dB-1.5 WWR-19 Waveguide
STF-19-S1-M40 GHz60 GHz1.8 dB23 dB15 dB0.1 WWR-19 Waveguide
STF-22-S1Datasheet33 GHz50 GHz1.2 dB30 dB-1.5 WWR-22 Waveguide
STF-22-S1-M33 GHz50 GHz1.5 dB23 dB15 dB0.1 WWR-22 Waveguide
STF-28-91Datasheet26.5 GHz40 GHz1.2 dB30 dB14 dB1.8 WWR-28 Waveguide
STF-28-S1Datasheet26.5 GHz40 GHz1.2 dB30 dB-1.8 WWR-28 Waveguide
STF-28-S1-M26.5 GHz40 GHz1.5 dB23 dB15 dB0.1 WWR-28 Waveguide
STF-28-S1-WP26.5 GHz40 GHz1.2 dB30 dB14 dB1.8 WWR-28 Waveguide
STF-34-S1Datasheet22 GHz33 GHz1.3 dB28 dB14 dB1.8 WWR-34 Waveguide
STF-42-S1Datasheet18 GHz26.5 GHz1.2 dB30 dB-2.0 WWR-42 Waveguide
STF-1141744030-06-91-WP110 GHz170 GHz4 dB30 dB15 dB0.8 WWR-06 Waveguide
STF-3536031328-19-S1Datasheet35 GHz60 GHz1.3 dB28 dB15 dB1.5 WWR-19 Waveguide
