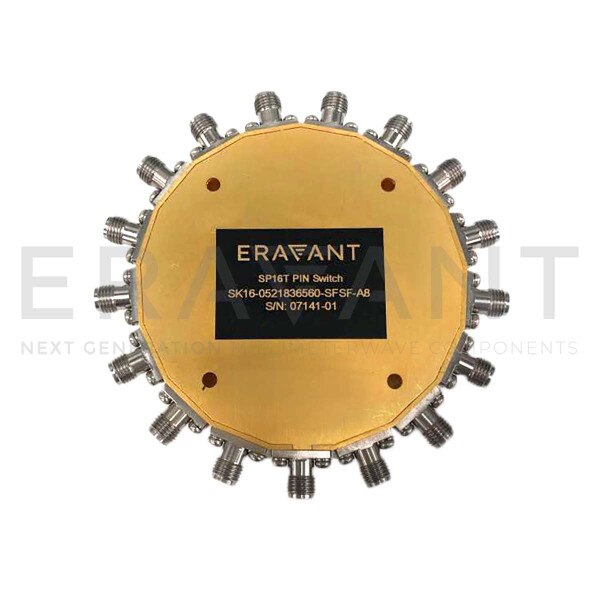

SP16T PINダイオード・スイッチ
概要
SKU:SK16-0521836560-SFSF-A8Availability:4 to 6 Weeks ARO
SK16-0521836560-SFSF-A8 is an absorptive PIN diode based, single pole, sixteen throw switch with a TTL driver that operates between 0.5 and 18 GHz. The switch requires a separate -5 V and +5 V biasing in addition to the 4-Bit TTL control. This model offers in-line 16 output ports, typical 6.5 dB insertion loss, and 60 dB minimum isolation with a typical switching speed of 50 nanoseconds. The switch has female SMA connectors for all RF ports and Micro-D15 Male connector for bias and TTL control.
BULK PRICING
Login to View Pricing
TECHNICAL DETAILS
| Minimum Frequency | 0.5 GHz |
| Maximum Frequency | 18 GHz |
| Insertion Loss | 6.5 dB |
| Isolation | 60 dB |
| Input RF Power | +23 dBm |
| Switching Speed | 50 ns |
| Switch Type | Absorptive |
| RF Port | SMA (F) |
