ブロードウォール型導波管方向性カプラ
仕様
| Model Number | Data sheet | Minimum Frequency | Maximum Frequency | Insertion Loss | Coupling | Directivity | Return Loss | Coupler Type | RF Ports |
|---|---|---|---|---|---|---|---|---|---|

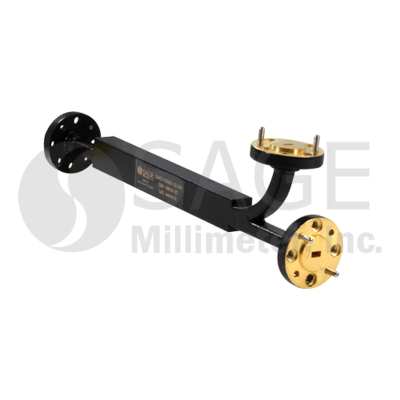

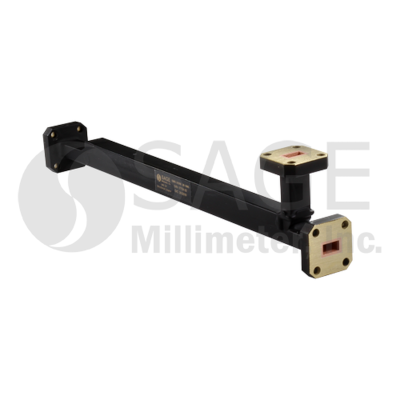

| SWD-2030E-28-SW5 |  | 26.5 GHz | 40 GHz | 0.7 dB | 20 dB | 30 dB | 20 dB | 3-Port Multi-hole, Waveguide | WR-28 WG |
| SWD-3030E-22-SW | | 33 GHz | 50 GHz | 0.7 dB | 30 dB | 30 dB | 20 db | 3-Port Multi-hole, Waveguide | WR-22 WG |

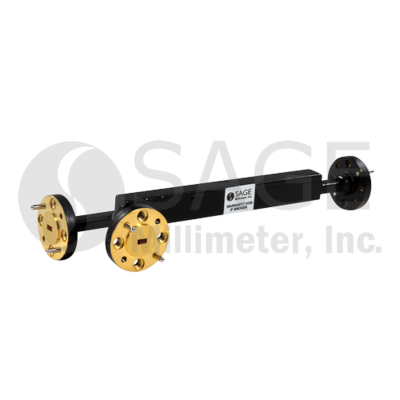

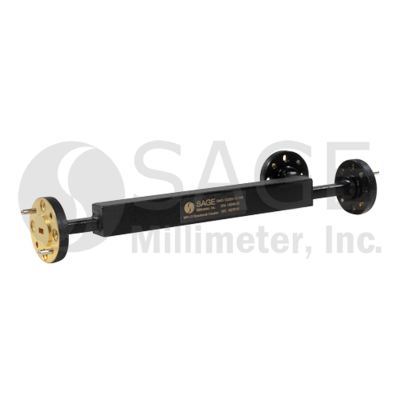

| SWD-1030H-12-SW | | 60 GHz | 90 GHz | 1.0 dB | 10 dB | 30 dB | - | 3-Port Multi-hole, Waveguide | WR-12 WG |
| SWD-1030E-12-SW | | 60 GHz | 90 GHz | 1.0 dB | 10 dB | 30 dB | 25 dB | 3-Port Multi-hole, Waveguide | WR-12 WG |
