機械式可変位相シフタ
仕様
| Model Number | Data sheet | Minimum Frequency | Maximum Frequency | Insertion Loss | Phase Shifting Range | Power Handling | Input/Output |
|---|---|---|---|---|---|---|---|
| STP-18-06-M2 |  | 110 GHz | 170 GHz | 1.2 dB | 0 to 180° | 0.40 W | WR-06 Waveguide |
| STP-18-28-M1 | | 24 GHz | 44 GHz | 0.5 dB | 0 to 180° | 1.0 W | WR-28 Waveguide |
| STP-18-28-M2 | | 26.5 GHz | 40 GHz | 0.5 dB | 0 to 180° | 1.0 W | WR-28 Waveguide |
| STP-18-22-M2 | | 33 GHz | 50 GHz | 0.5 dB | 0 to 180° | 0.75 W | WR-22 Waveguide |
| STP-18-19-M2 | | 40 GHz | 60 GHz | 0.5 dB | 0 to 180° | 0.75 W | WR-19 Waveguide |
| STP-18-15-M2 | | 50 GHz | 75 GHz | 0.5 dB | 0 to 180° | 0.60 W | WR-15 Waveguide |

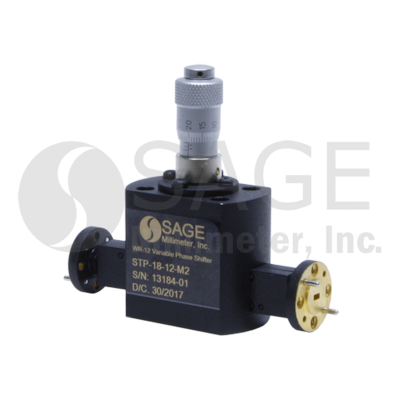

| STP-18-12-M2 | | 60 GHz | 90 GHz | 0.5 dB | 0 to 180° | 0.60 W | WR-12 Waveguide |
| STP-18-10-M2 | | 75 GHz | 110 GHz | 0.5 dB | 0 to 180° | 0.60 W | WR-10 Waveguide |
| STP-18-08-M2 | | 90 GHz | 140 GHz | 1.0 dB | 0 to 180° | 0.4 W | WR-08 Waveguide |
