導波管ハイパス・フィルタ
仕様
| Model Number | Data sheet | Minimum Passband Frequency | Passband Insertion Loss | Minimum Rejection Frequency | Maximum Rejection Frequency | Rejection | Waveguide Port |
|---|---|---|---|---|---|---|---|
| SWF-10410440-08-H1 |  | 104 GHz | 2.5 dB | DC | 100 GHz | 40 dB | WR-08 Waveguide |
| SWF-13412460-08-H1 | | 129 GHz | 2.5 dB | DC | 124 GHz | 60 dB | WR-08 Waveguide |
| SWF-13413480-06-H1 | | 130 GHz | 2.5 dB | DC | 126 GHz | 80 dB | WR-06 Waveguide |
| SWF-24323340-42-H1 | | 24.1 GHz | 0.5 dB | DC | 23.1 GHz | 40 dB | WR-42 Waveguide |
| SWF-27323340-28-H1 | | 26.5 GHz | 0.5 dB | DC | 22.5 GHz | 40 dB | WR-28 Waveguide |
| SWF-28324340-28-H1 | | 28 GHz | 0.5 dB | DC | 24 GHz | 40 dB | WR-28 Waveguide |
| SWF-29325340-28-H1 | | 29 GHz | 0.5 dB | DC | 25 GHz | 40 dB | WR-28 Waveguide |
| SWF-30326340-28-H1 | | 30 GHz | 0.5 dB | DC | 26 GHz | 40 dB | WR-28 Waveguide |
| SWF-34330340-22-H1 | | 34 GHz | 2.0 dB | DC | 31 GHz | 40 dB | WR-22 Waveguide |
| SWF-32332330-22-H1 | | 35.5 GHz | 1.0 dB | DC | 30.5 GHz | 30 dB | WR-22 Waveguide |
| SWF-42340320-22-H2 | | 41.5 GHz | 1.5 dB | DC | 40 GHz | 20 dB | WR-22 Waveguide |
| SWF-44340340-19-H1 | | 44 GHz | 1.0 dB | DC | 40 GHz | 40 dB | WR-19 Waveguide |
| SWF-50346340-15-H1 | | 50 GHz | 1.0 dB | DC | 46 GHz | 40 dB | WR-15 Waveguide |
| SWF-55350340-15-H1-A | | 55 GHz | 0.8 dB | DC | 50 GHz | 40 dB | WR-15 Waveguide |
| SWF-57356320-15-H1 | | 57 GHz | 1.0 dB | DC | 56 GHz | 20 dB | WR-15 Waveguide |
| SWF-57353340-15-H1-A | | 57 GHz | 0.8 dB | DC | 53 GHz | 40 dB | WR-15 Waveguide |
| SWF-57353340-12-H1 | | 57 GHz | 0.8 dB | DC | 53 GHz | 40 dB | WR-12 Waveguide |
| SWF-60355340-12-H1 | | 60 GHz | 1.0 dB | DC | 55 GHz | 40 dB | WR-12 Waveguide |
| SWF-63357340-15-H1 | | 63 GHz | 1.0 dB | DC | 57 GHz | 40 dB | WR-15 Waveguide |
| SWF-63359340-12-H1 | | 63 GHz | 0.8 dB | DC | 59 GHz | 40 dB | WR-12 Waveguide |
| SWF-67363340-12-H1 | | 67 GHz | 1.0 dB | DC | 65 GHz | 40 dB | WR-12 Waveguide |
| SWF-70366340-12-H1 | | 70 GHz | 0.5 dB | DC | 66 GHz | 40 dB | WR-12 Waveguide |
| SWF-71367340-12-H1 | | 71 GHz | 0.8 dB | DC | 67 GHz | 40 dB | WR-12 Waveguide |
| SWF-75370340-10-H1 | | 75 GHz | 1.0 dB | DC | 70 GHz | 40 dB | WR-10 Waveguide |

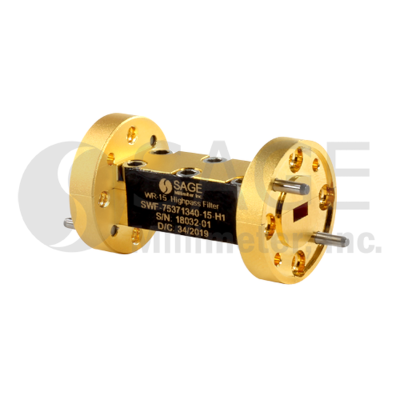

| SWF-75371340-15-H1 | | 75 GHz | 1.0 dB | DC | 71 GHz | 40 dB | WR-15 Waveguide |
| SWF-81377340-12-H1 | | 81 GHz | 1.0 dB | DC | 77 GHz | 40 dB | WR-12 Waveguide |
| SWF-82380340-10-H1 | | 82 GHz | 1.0 dB | DC | 80 GHz | 40 dB | WR-10 Waveguide |
| SWF-84380340-10-H1 | | 84 GHz | 0.9 dB | DC | 80 GHz | 40 dB | WR-10 Waveguide |
| SWF-86382340-10-H1 | | 86 GHz | 1.0 dB | DC | 82 GHz | 40 dB | WR-10 Waveguide |
| SWF-90384340-10-H1 | | 90 GHz | 1.0 dB | DC | 84 GHz | 40 dB | WR-10 Waveguide |
| SWF-92386340-10-H1 | | 92 GHz | 1.0 dB | DC | 86 GHz | 40 dB | WR-10 Waveguide |
