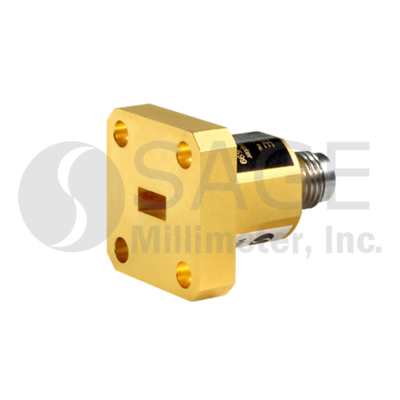

エンド・ローンチ導波管-同軸変換アダプタ

エンド・ローンチ導波管-同軸変換アダプタ

取扱いメーカー

Eravant

すぐお見積りいたします

概要

導波管から同軸アダプタへの変換により、矩形導波管と同軸コネクタ間の効率的な移行が可能になります。
さまざまな導波管バンドに対して、直角とエンドランチ(インライン)の2つの機械的構成が提供されています。
これらのアダプターは、計装グレードの品質のために設計および製造されていますが、商用価格レベルで提供されています。
これらのアダプターは、優れたRF性能(つまり、低挿入損失と低VSWR)を実現します。
アダプタはフルバンドアプリケーション向けに設計および製造されていますが、特定の同軸コネクタタイプのパフォーマンス制限により、周波数範囲の上限でパフォーマンスの低下が観察される場合があります。 導波管と同軸コネクタタイプの多くの可能な組み合わせのため、カスタムモデルが利用可能です。

Waveguide to coax adapters allow for an efficient transition between the rectangular waveguide and coax connector. Two mechanical configurations, a right angle and an end launch (in-line), are offered for various waveguide bands. These adapters are designed and manufactured for instrumentation grade quality, but offered at a commercial price level. These adapters deliver superior RF performance (i.e., low insertion loss and low VSWR). While the adapters are designed and manufactured for full band applications, performance degradation may be observed at the higher end of the frequency range due to the performance limitation of certain coax connector types. Because of the numerous possible combinations of waveguide and coax connector types custom models are available.

仕様

Model NumberData sheetMinimum FrequencyMaximum FrequencyInsertion LossReturn LossPower HandlingWaveguide PortCoax TypeCoax GenderConfiguration
SWC-081F-E1Datasheet90 GHz125 GHz1.0 dB14 dB5 W MaxWR-08 Waveguide1 mmFemaleEnd Launch (180°)
SWC-081M-E1Datasheet90 GHz125 GHz1.0 dB14 dB5 W MaxWR-08 Waveguide1 mmMaleEnd Launch (180°)
SWC-101F-E1Datasheet75 GHz110 GHz1.20 dB15 dB10 WWR-10 Waveguide1 mmFemaleEnd Launch (180°)
SWC-101F-E1-VDatasheet75 GHz110 GHz1.20 dB15 dB10 WWR-10 Waveguide1 mmFemaleEnd Launch (180°)
SWC-101M-E1Datasheet75 GHz110 GHz1.20 dB15 dB10 WWR-10 Waveguide1 mmMaleEnd Launch (180°)
SWC-101M-E1-VDatasheet75 GHz110 GHz1.20 dB15 dB10 WWR-10 Waveguide1 mmMaleEnd Launch (180°)
SWC-112NF-E7Datasheet7 GHz10 GHz0.2 dB20 dB150 WWR-112 WaveguideNFemaleEnd Launch (180°)
SWC-112NM-E7Datasheet7 GHz10 GHz0.2 dB20 dB150 WWR-112 WaveguideNMaleEnd Launch (180°)
SWC-12EF-E1Datasheet60 GHz90 GHz1.2 dB15 dB20 WWR-12 WaveguideE (1.35 mm)FemaleEnd Launch (180°)
SWC-12EM-E1Datasheet60 GHz90 GHz1.2 dB15 dB20 WWR-12 WaveguideE (1.35 mm)MaleEnd Launch (180°)
SWC-12VF-E1Datasheet60 GHz72 GHz0.80 dB14 dB10 W (CW)WR-12 Waveguide1.85 mmFemaleEnd Launch (180°)
SWC-12VM-E1Datasheet60 GHz72 GHz0.80 dB14 dB10 W (CW)WR-12 Waveguide1.85 mmMaleEnd Launch (180°)
SWC-121F-E1Datasheet60 GHz90 GHz1.0 dB15 dB10 WWR-12 Waveguide1 mmFemaleEnd Launch (180°)
SWC-121M-E1Datasheet60 GHz90 GHz1.0 dB15 dB10 WWR-12 Waveguide1 mmMaleEnd Launch (180°)
SWC-151F-E1-VDatasheet50 GHz75 GHz0.7 dB15 dB10 WWR-15 Waveguide1.0 mmFemaleEnd Launch (180°)
SWC-151M-E1-VDatasheet50 GHz75 GHz0.7 dB15 dB10 WWR-15 Waveguide1.0 mmMaleEnd Launch (180°)
SWC-15EF-E1Datasheet50 GHz75 GHz0.5 dB15 dB10 WWR-15 WaveguideE (1.35 mm)FemaleEnd Launch (180°)
SWC-15EM-E1Datasheet50 GHz75 GHz0.5 dB15 dB10 WWR-15 WaveguideE (1.35 mm)MaleEnd Launch (180°)
SWC-151F-E1Datasheet50 GHz75 GHz0.70 dB15 dB10 WWR-15 Waveguide1 mmFemaleEnd Launch (180°)
SWC-151M-E1Datasheet50 GHz75 GHz0.70 dB15 dB10 WWR-15 Waveguide1 mmMaleEnd Launch (180°)
SWC-15VF-E1Datasheet50 GHz70 GHz0.40 dB-40 WWR-15 WaveguideV (1.85 mm)FemaleEnd Launch (180°)
SWC-15VF-E1-VDatasheet50 GHz70 GHz0.70 dB16 dB40 WWR-15 WaveguideV (1.85 mm)FemaleEnd Launch (180°)
SWC-15VF-E1-ADatasheet50 GHz70 GHz0.70 dB16 dB40 WWR-15 WaveguideV (1.85 mm)FemaleEnd Launch (180°)
SWC-15VM-E1Datasheet50 GHz70 GHz0.40 dB-40 WWR-15 WaveguideV (1.85 mm)MaleEnd Launch (180°)
SWC-15VM-E1-VDatasheet50 GHz70 GHz0.7 dB16 dB40 WWR-15 WaveguideV (1.85 mm)MaleEnd Launch (180°)
SWC-15VM-E1-ADatasheet50 GHz70 GHz0.70 dB16 dB40 WWR-15 WaveguideV (1.85 mm)MaleEnd Launch (180°)
SWC-15VF-E1-RL20Datasheet50 GHz70 GHz0.4 dB20 dB Min40 WWR-15 WaveguideV (1.85 mm)FemaleEnd Launch (180°)
SWC-191F-E1Datasheet40 GHz60 GHz0.6 dB15 dB40 W MaxWR-19 Waveguide1 mmFemaleEnd Launch (180°)
SWC-191M-E1Datasheet40 GHz60 GHz0.6 dB15 dB40 WWR-19 Waveguide1 mmMaleEnd Launch (180°)
SWC-192F-E1Datasheet40 GHz50 GHz0.5 dB18 dB40 WWR-19 Waveguide2.4 mmFemaleEnd Launch (180°)
SWC-192M-E1Datasheet40 GHz50 GHz0.5 dB18 dB40 WWR-19 Waveguide2.4 mmMaleEnd Launch (180°)
SWC-19VF-E1Datasheet40 GHz60 GHz0.5 dB18 dB40 WWR-19 WaveguideV (1.85 mm)FemaleEnd Launch (180°)
SWC-19VF-E1-RL22Datasheet40 GHz60 GHz0.35 dB22 dB40 WWR-19 WaveguideV (1.85 mm)FemaleEnd Launch (180°)
SWC-19VM-E1Datasheet40 GHz60 GHz0.5 dB18 dB40 WWR-19 WaveguideV (1.85 mm)MaleEnd Launch (180°)
SWC-19VM-E1-RL22Datasheet40 GHz60 GHz0.35 dB22 dB40 WWR-19 WaveguideV (1.85 mm)MaleEnd Launch (180°)
SWC-22VF-E1Datasheet33 GHz50 GHz0.40 dB18 dB40 WWR-22 WaveguideV (1.85 mm)FemaleEnd Launch (180°)
SWC-22VF-E1-VDatasheet33 GHz50 GHz0.4 dB18 dB40 WWR-22 Waveguide1.85 mm (V)MaleEnd Launch (180°)
SWC-22VM-E1Datasheet33 GHz50 GHz0.4 dB18 dB40 WWR-22 WaveguideV (1.85 mm)MaleEnd Launch (180°)
SWC-22VM-E1-VDatasheet33 GHz50 GHz0.4 dB18 dB40 WWR-22 Waveguide1.85 mm (V)MaleEnd Launch (180°)
SWC-222F-E1Datasheet33 GHz50 GHz0.40 dB18 dB40 WWR-22 Waveguide2.4 mmFemaleEnd Launch (180°)
SWC-222F-E1-RL15Datasheet33 GHz50 GHz0.60 dB15 dB40 WWR-22 Waveguide2.4 mmFemaleEnd Launch (180°)
SWC-222F-E1-599Datasheet33 GHz50 GHz0.40 dB18 dB40 WWR-22 Waveguide2.4 mmFemaleEnd Launch (180°)
SWC-222M-E1Datasheet33 GHz50 GHz0.40 dB18 dB40 WWR-22 Waveguide2.4 mmMaleEnd Launch (180°)
SWC-222M-E1-RL15Datasheet33 GHz50 GHz0.60 dB15 dB40 WWR-22 Waveguide2.4 mmMaleEnd Launch (180°)
SWC-222M-E1-599Datasheet33 GHz50 GHz0.40 dB18 dB40 WWR-22 Waveguide2.4 mmMaleEnd Launch (180°)
SWC-222F-E1-RL22Datasheet33 GHz50 GHz0.30 dB22 dB40 WWR-22 Waveguide2.4 mmFemaleEnd Launch (180°)
SWC-222M-E1-RL22Datasheet33 GHz50 GHz0.3 dB22 dB40 WWR-22 Waveguide2.4 mmMaleEnd Launch (180°)
SWC-22KF-E1-VDatasheet33 GHz43 GHz0.40 dB18 dB50 WWR-22 WaveguideK (2.92 mm)FemaleEnd Launch (180°)
SWC-22KM-E1-VDatasheet33 GHz43 GHz0.40 dB18 dB50 WWR-22 WaveguideK (2.92 mm)MaleEnd Launch (180°)
SWC-22KF-E1Datasheet33 GHz40 GHz0.40 dB18 dB50 WWR-22 WaveguideK (2.92 mm)FemaleEnd Launch (180°)
SWC-22KM-E1Datasheet33 GHz40 GHz0.40 dB18 dB50 WWR-22 WaveguideK (2.92 mm)MaleEnd Launch (180°)
SWC-282F-E1Datasheet26.5 GHz40 GHz0.35 dB20 dB40 WWR-28 Waveguide2.4 mmFemaleEnd Launch (180°)
SWC-282M-E1Datasheet26.5 GHz40 GHz0.35 dB20 dB40 WWR-28 Waveguide2.4 mmMaleEnd Launch (180°)
SWC-28KF-E1-TDatasheet26.5 GHz40 GHz0.35 dB20 dB50 WWR-28 WaveguideK (2.92 mm)FemaleEnd Launch (180°)
SWC-28KF-E1-U320Datasheet26.5 GHz40 GHz0.35 dB20 dB50 WWR-28 Waveguide with Non-Standard U320 FlangeK (2.92 mm)FemaleEnd Launch (180°)
SWC-28KM-E1-TDatasheet26.5 GHz40 GHz0.35 dB20 dB50 WWR-28 WaveguideK (2.92 mm)MaleEnd Launch (180°)
SWC-28KM-E1-U320Datasheet26.5 GHz40 GHz0.35 dB20 dB50 WWR-28 Waveguide with Non-Standard U320 FlangeK (2.92 mm)MaleEnd Launch (180°)
SWC-28KF-E1Datasheet26.5 GHz40 GHz0.35 dB20 dB20 WWR-28 WaveguideK (2.92 mm)FemaleEnd Launch (180°)
SWC-28KF-E1-VDatasheet26.5 GHz40 GHz0.35 dB20 dB50 WWR-28 WaveguideK (2.92 mm)FemaleEnd Launch (180°)
SWC-28KM-E1Datasheet26.5 GHz40 GHz0.35 dB20 dB20 WWR-28 WaveguideK (2.92 mm)MaleEnd Launch (180°)
SWC-28KM-E1-VDatasheet26.5 GHz40 GHz0.35 dB20 dB50 WWR-28 WaveguideK (2.92 mm)MaleEnd Launch (180°)
SWC-28VF-E1Datasheet26.5 GHz40 GHz0.35 dB20 dB15 WWR-28 WaveguideV (1.85 mm)FemaleEnd Launch (180°)
SWC-28VM-E1Datasheet26.5 GHz40 GHz0.35 dB20 dB15 WWR-28 WaveguideV (1.85 mm)MaleEnd Launch (180°)
SWC-342F-E1Datasheet22 GHz33 GHz0.35 dB20 dB50 WWR-34 Waveguide2.4 mmFemaleEnd Launch (180°)
SWC-342M-E1Datasheet22 GHz33 GHz0.35 dB20 dB50 WWR-34 Waveguide2.4 mmMaleEnd Launch (180°)
SWC-34KF-E1Datasheet22 GHz33 GHz0.35 dB20 dB50 WWR-34 WaveguideK (2.92 mm)FemaleEnd Launch (180°)
SWC-34KM-E1Datasheet22 GHz33 GHz0.35 dB20 dB50 WWR-34 WaveguideK (2.92 mm)MaleEnd Launch (180°)
SWC-422F-E1Datasheet18 GHz26.5 GHz0.3 dB20 dB50 W (CW)WR-42 Waveguide2.4 mmFemaleEnd Launch (180°)
SWC-422M-E1Datasheet18 GHz26.5 GHz0.3 dB20 dB50 W (CW)WR-42 Waveguide2.4 mmMaleEnd Launch (180°)
SWC-42KF-E1-U220Datasheet18 GHz26.5 GHz0.30 dB20 dB50 WWR-42 Waveguide with Non-Standard UBR220 FlangeK (2.92 mm)FemaleEnd Launch (180°)
SWC-42KM-E1-U220Datasheet18 GHz26.5 GHz0.30 dB20 dB50 WWR-42 Waveguide with Non-Standard UBR220 FlangeK (2.92 mm)MaleEnd Launch (180°)
SWC-42KF-E1Datasheet18 GHz26.5 GHz0.3 dB20 dB50 WWR-42 WaveguideK (2.92 mm)FemaleEnd Launch (180°)
SWC-42KF-E1-VDatasheet18 GHz26.5 GHz0.30 dB20 dB50 WWR-42 WaveguideK (2.92 mm)FemaleEnd Launch (180°)
SWC-42KM-E1Datasheet18 GHz26.5 GHz0.3 dB20 dB50 WWR-42 WaveguideK (2.92 mm)MaleEnd Launch (180°)
SWC-42KM-E1-VDatasheet18 GHz26.5 GHz0.30 dB20 dB50 WWR-42 WaveguideK (2.92 mm)MaleEnd Launch (180°)
SWC-42SF-E1Datasheet18 GHz26.5 GHz0.3 dB17 dB50 WWR-42 WaveguideSMAFemaleEnd Launch (180°)
SWC-42SM-E1Datasheet18 GHz26.5 GHz0.3 dB17 dB50 WWR-42 WaveguideSMAMaleEnd Launch (180°)
SWC-51KF-E1Datasheet15 GHz22 GHz0.2 dB-50 WWR-51 WaveguideK (2.92 mm)FemaleEnd Launch (180°)
SWC-51KM-E1Datasheet15 GHz22 GHz0.2 dB-50 WWR-51 WaveguideK (2.92 mm)MaleEnd Launch (180°)
SWC-62SF-E5Datasheet12 GHz18 GHz0.3 dB20 dB150 WWR-62 WaveguideSMAFemaleEnd Launch (180°)
SWC-62SF-E7-2Datasheet12 GHz18 GHz0.3 dB20 dB150 WWR-62 WaveguideSMAFemaleEnd Launch (180°)
SWC-62SM-E5Datasheet12 GHz18 GHz0.3 dB20 dB50 WWR-62 WaveguideSMAMaleEnd Launch (180°)
SWC-62SM-E7-2Datasheet12 GHz18 GHz0.3 dB20 dB150 WWR-62 WaveguideSMAMaleEnd Launch (180°)
SWC-75SF-E5Datasheet10 GHz15 GHz0.3 dB20 dB150 WWR-75 WaveguideSMAFemaleEnd Launch (180°)
SWC-75SF-E7-2Datasheet10 GHz15 GHz0.3 dB20 dB150 WWR-75 WaveguideSMAFemaleEnd Launch (180°)
SWC-75SM-E5Datasheet10 GHz15 GHz0.3 dB20 dB150 WWR-75 WaveguideSMAMaleEnd Launch (180°)
SWC-75SM-E7-2Datasheet10 GHz15 GHz0.3 dB20 dB150 WWR-75 WaveguideSMAMaleEnd Launch (180°)
SWC-90SF-E5Datasheet8.2 GHz12.4 GHz0.3 dB20 dB150 WWR-90 WaveguideSMAFemaleEnd Launch (180°)
SWC-90SF-E7-2Datasheet8.2 GHz12.4 GHz0.3 dB20 dB150 WWR-90 WaveguideSMAFemaleEnd Launch (180°)
SWC-90SM-E5Datasheet8.2 GHz12.4 GHz0.3 dB20 dB150 WWR-90 WaveguideSMAMaleEnd Launch (180°)
SWC-90SM-E7-2Datasheet8.2 GHz12.4 GHz0.3 dB20 dB150 WWR-90 WaveguideSMAMaleEnd Launch (180°)
