WG Junction Narrow Band Isolators and Circulators

メーカー名:Eravant

製品仕様

Product Specifications

modelData sheetMinimum Frequency [GHz]Maximum Frequency [GHz]Insertion Loss [dB]Isolation [dB]Return Loss [dB]Forward Power Handling [W (CW)]Reverse Power Handling [W (CW)]RF PortDevice Type
SNW-1731930220-42-I1Datasheet17.219.40.220-51WR-42 WaveguideIsolator
SNW-1832130418-51-I1Datasheet18210.420-52WR-51 WaveguideIsolator
SNW-2232730318-42-CIDatasheet2226.50.31817--WR-42 WaveguideCirculator
SNW-2732930421-28-C8Datasheet27290.352120--WR-28 WaveguideCirculator
SNW-2933030325-28-I8Datasheet29300.3252020.5WR-28 WaveguideIsolator
SNW-2933130320-28-I1Datasheet29310.320-31WR-28 WaveguideIsolator
SNW-3433630518-28-I8-1Datasheet33.636.40.518-82WR-28 WaveguideIsolator
SNW-3433630320-28-C2Datasheet34360.3201531WR-28 WaveguideCirculator
SNW-3433630320-28-I1Datasheet34360.320-31WR-28 WaveguideIsolator
SNW-3834130518-22-IJ-VDatasheet37.540.50.5181951WR-22 WaveguideIsolator
SNW-3734030518-28-I1Datasheet37400.518-82WR-28 WaveguideIsolator
SNW-3834030420-28-C1Datasheet38400.320-31WR-28 WaveguideCirculator
SNW-4234630620-22-IJ1Datasheet42460.62018105WR-22 WaveguideIsolator
SNW-4434630520-19-C1Datasheet43.545.50.52017--WR-19 WaveguideCirculator
SNW-4434630520-19-I1Datasheet43.545.50.52017--WR-19 WaveguideIsolator

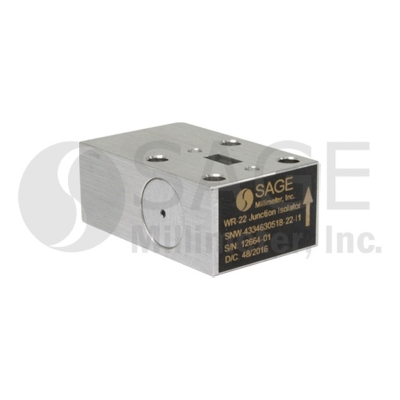

SNW-4334630518-22-IJ-2Datasheet43460.518175-WR-22 WaveguideIsolator
SNW-4334630518-22-IJ-599Datasheet43460.518175-WR-22 WaveguideIsolator
SNW-4634830518-22-I1Datasheet46480.518185-WR-22 WaveguideIsolator
SNW-4735130518-22-CJDatasheet47.251.40.5181951WR-22 WaveguideCirculator
SNW-4735130518-22-IJDatasheet47.251.40.5181951WR-22 WaveguideIsolator
SNW-4735130518-22-IJ-VDatasheet47.251.40.5181951WR-22 WaveguideIsolator
SNW-5435631016-15-I1Datasheet5456116-31WR-15 WaveguideIsolator
SNW-5435630718-15-C1Datasheet54560.718-31WR-15 WaveguideCirculator
SNW-5936131016-15-C1Datasheet5961116-31WR-15 WaveguideCirculator
SNW-5936131016-15-I1Datasheet5961116-31WR-15 WaveguideIsolator
SNW-6036230718-15-C1Datasheet60620.7181831WR-15 WaveguideCirculator
SNW-6436630718-15-C1Datasheet64660.718-31WR-15 WaveguideCirculator
SNW-6436630818-15-I1Datasheet64660.818-31WR-15 WaveguideIsolator
SNW-7137630818-12-C1Datasheet71760.8181631WR-12 WaveguideCirculator
SNW-7137630818-12-I1Datasheet71760.8181631WR-12 WaveguideIsolator
SNW-7537730818-12-I1Datasheet75770.8181531WR-12 WaveguideIsolator
SNW-7637831535-12-CMDatasheet76781.535-31WR-12 WaveguideCirculator
SNW-7638130818-12-C1Datasheet76810.8181531WR-12 WaveguideCirculator
SNW-7638130818-12-I1Datasheet76810.8181631WR-12 WaveguideIsolator
SNW-7838631015-10-IHDatasheet78861151431WR-10 WaveguideIsolator
SNW-7838630816-10-CHDatasheet78860.8161631WR-10 WaveguideCirculator
SNW-8138630818-12-C1Datasheet81860.818-31WR-12 WaveguideCirculator
SNW-8138630818-12-I1Datasheet81860.8181631WR-12 WaveguideIsolator
SNW-8939131018-10-I1Datasheet8991118-31WR-10 WaveguideIsolator

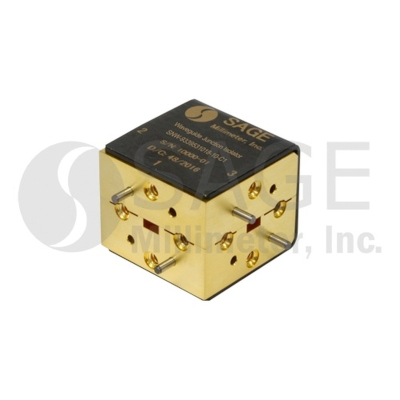

SNW-9339531018-10-C1Datasheet9395118-31WR-10 WaveguideCirculator
SNW-9339531018-10-I1Datasheet9395118-31WR-10 WaveguideIsolator
SNW-9439631535-10-CMDatasheet94961.5351833WR-10 WaveguideCirculator
SNW-9931041015-10-C1Datasheet99101115153 Max1 MaxWR-10 WaveguideCirculator

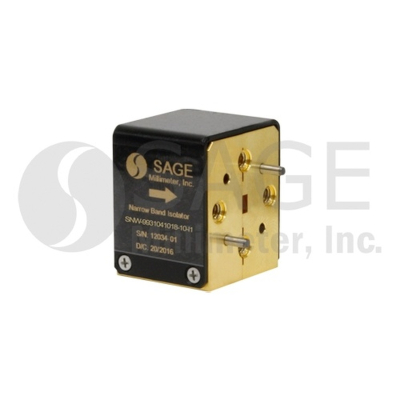

SNW-9931041018-10-I1Datasheet99101118-20.5WR-10 WaveguideIsolator
