Waveguide Twists

メーカー名:Eravant

製品仕様

Product Specifications

modelData sheetMinimum Frequency [GHz]Maximum Frequency [GHz]Angle [Degrees]OrientationBend Radius/LengthWaveguide Size
SWB-06045L-TB-1.0Datasheet11017045Left-Handed Twist1.00"WR-06
SWB-06045L-TBDatasheet11017045Left-Handed Twist1.25"WR-06
SWB-06090-TBDatasheet11017090Twist1.25"WR-06
SWB-08045L-TB-1.0Datasheet9014045Left-Handed Twist1.00"WR-08
SWB-08045L-TBDatasheet9014045Left-Handed Twist1.25"WR-08
SWB-08090-TBDatasheet9014090Twist1.25"WR-08
SWB-10045L-TB-1.0Datasheet7511045Left-Handed Twist1.00"WR-10
SWB-10090-TB-1.0Datasheet7511090Twist1.00"WR-10
SWB-10045L-TBDatasheet7511045Left-Handed Twist1.25"WR-10
SWB-10090-TBDatasheet7511090Twist1.25"WR-10
SWB-12045L-TB-1.0Datasheet609045Left-Handed Twist1.00"WR-12
SWB-12090-TB-1.0Datasheet609090Twist1.0"WR-12
SWB-12045L-TBDatasheet609045Left-Handed Twist1.25"WR-12
SWB-12045R-TB-1.0Datasheet609045Right-Handed Twist1.00"WR-12
SWB-12090-TBDatasheet609090Twist1.25"WR-12
SWB-15045L-TB-1.0Datasheet507545Left-Handed Twist1.00"WR-15
SWB-15045L-TBDatasheet507545Left-Handed Twist1.25"WR-15
SWB-15090-TBDatasheet507590Twist1.25"WR-15
SWB-19045L-TB-1.0Datasheet406045Left-Handed Twist1.00"WR-19
SWB-19045L-TBDatasheet406045Left-Handed Twist1.50"WR-19
SWB-19090-TBDatasheet406090Twist1.50"WR-19
SWB-22045L-TB-1.0Datasheet335045Left-Handed Twist1.00"WR-22

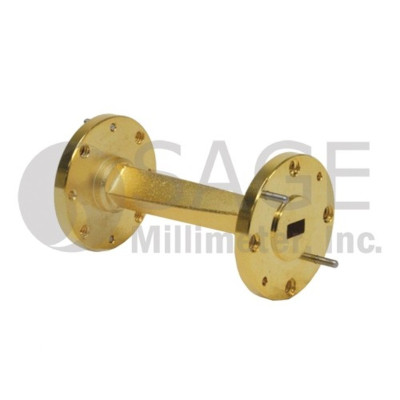

SWB-22045L-TBDatasheet335045Left-Handed Twist2.00"WR-22
SWB-22090-TBDatasheet335090Twist2.00"WR-22

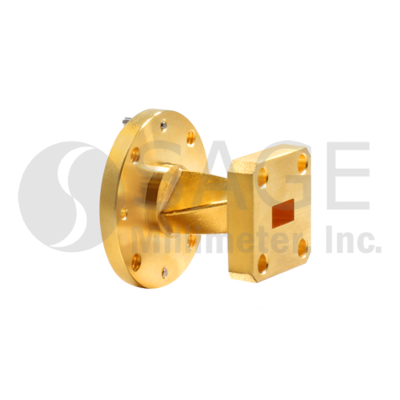

SWB-28045L-TB-383-1.0Datasheet26.54045Left-Handed Twist1.0"WR-28 UG-383/U
SWB-28090-TB-1.0Datasheet26.54090Twist1.00"WR-28
SWB-28045R-TBDatasheet26.54045Right-Handed Twist2.0"WR-28
SWB-28090-TBDatasheet26.54090Twist2.00"WR-28
SWB-34045L-TBDatasheet223345Left-Handed Twist2.00"WR-34
SWB-34090-TBDatasheet223390Twist2.00"WR-42
SWB-42045L-TBDatasheet1826.545Left-Handed Twist2.50"WR-42
SWB-42090-TBDatasheet1826.590Twist2.50"WR-42
