Waveguide to Coax Panel Mount Adapters

メーカー名:Eravant

製品仕様

Product Specifications

ModelData sheetMinimum Frequency [GHz]Maximum Frequency [GHz]Insertion Loss [dB]Return Loss [dB]Power Handling [W]Waveguide PortCoax TypeCoax Gender

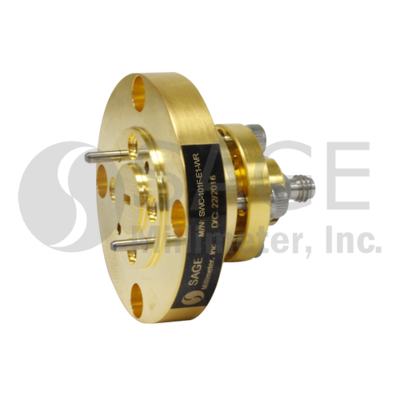

SWC-101F-E1-WRDatasheet751101.21510WR-10 Waveguide1 mmFemale
SWC-101M-E1-WRDatasheet751101.21510WR-10 Waveguide1 mmMale
SWC-121F-E1-WRDatasheet609011510WR-12 Waveguide1 mmFemale
SWC-121M-E1-WRDatasheet609011510WR-12 Waveguide1 mmMale
SWC-15VF-E1-WRDatasheet50700.71640WR-15 WaveguideV (1.85 mm)Female
SWC-15VM-E1-WRDatasheet50700.71640WR-15 WaveguideV (1.85 mm)Male

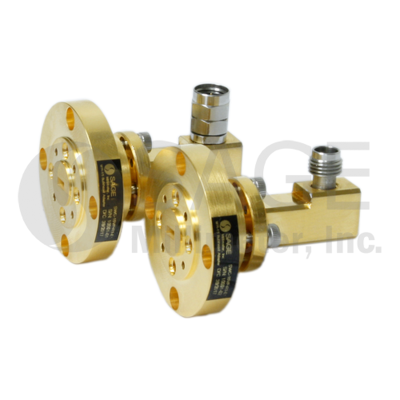

SWC-15VF-R1-WRDatasheet50700.71630WR-15 WaveguideV (1.85 mm)Female
SWC-15VM-R1-WRDatasheet50700.71630WR-15 WaveguideV (1.85 mm)Male
SWC-191F-E1-WRDatasheet40600.61540WR-19 WaveguideV (1.85 mm)Female
SWC-191M-E1-WRDatasheet40600.61540WR-19 WaveguideV (1.85 mm)Male
SWC-28KF-E1-WRDatasheet26.5400.352050WR-28 WaveguideK (2.92 mm)Female
SWC-28KM-E1-WRDatasheet26.5400.352050WR-28 WaveguideK (2.92 mm)Male

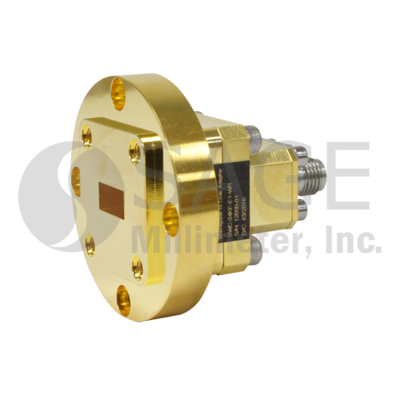

SWC-34KF-E1-WRDatasheet22330.352050WR-34 WaveguideK (2.92 mm)Female
SWC-34KM-E1-WRDatasheet22330.352050WR-34 WaveguideK (2.92 mm)Male
SWC-42KF-E1-WRDatasheet1826.50.32050WR-42 WaveguideK (2.92 mm)Female
SWC-42KM-E1-WRDatasheet1826.50.32050WR-42 WaveguideK (2.92 mm)Male
