Waveguide Shims and Spacers

メーカー名:Eravant

製品仕様

Product Specifications

modelData sheetMinimum Frequency [GHz]Maximum Frequency [GHz]Insertion LengthMilsWaveguide

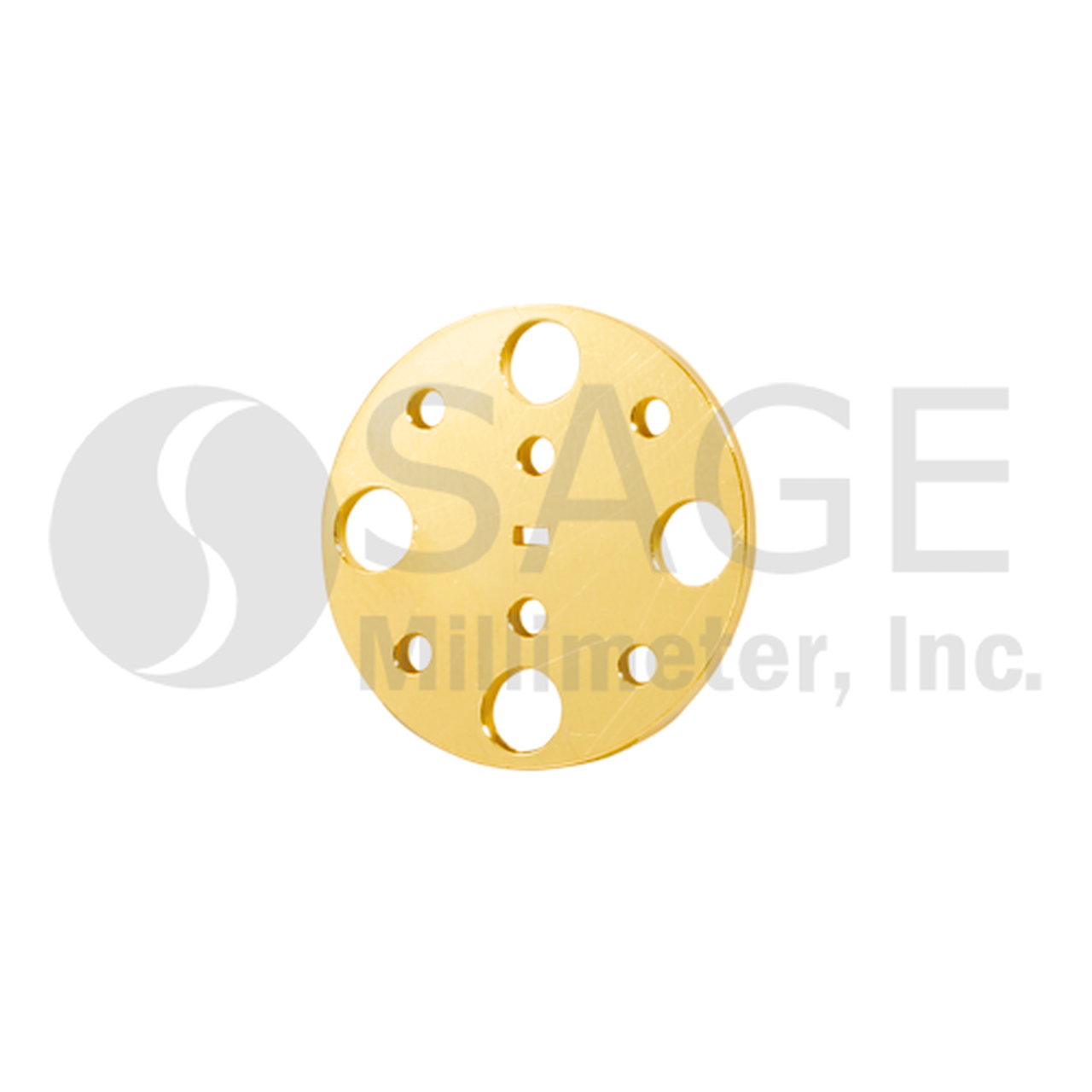

SWI-06014-SBDatasheet1101700.014" (L)14WR-06 Waveguide
SWI-06028-SBDatasheet1101700.028" (L)28WR-06 Waveguide
SWI-06042-SBDatasheet1101700.042" (L)42WR-06 Waveguide
SWI-05011-SBDatasheet1402200.011" (L)11WR-05 Waveguide
SWI-05021-SBDatasheet1402200.021" (L)21WR-05 Waveguide
SWI-05032-SBDatasheet1402200.032" (L)32WR-05 Waveguide
SWI-42084-SBDatasheet1826.50.084" (L)84WR-42 Waveguide
SWI-42168-SBDatasheet1826.50.168" (L)168WR-42 Waveguide
SWI-42252-SBDatasheet1826.50.252" (L)252WR-42 Waveguide
SWI-34069-SBDatasheet22330.069" (L)69WR-34 Waveguide
SWI-34138-SBDatasheet22330.138" (L)-WR-34 Waveguide
SWI-34208-SBDatasheet22330.208" (L)208WR-34 Waveguide
SWI-28057-SBDatasheet26.5400.057" (L)57WR-28 Waveguide
SWI-28061-SBDatasheet26.5400.061" (L)61WR-28 Waveguide
SWI-28097-SBDatasheet26.5400.097" (L)97WR-28 Waveguide
SWI-28115-SBDatasheet26.5400.115" (L)115WR-28 Waveguide
SWI-28121-SBDatasheet26.5400.121" (L)121WR-28 Waveguide
SWI-28182-SBDatasheet26.5400.182" (L)182WR-28 Waveguide
SWI-22046-SBDatasheet33500.046" (L)46WR-22 Waveguide
SWI-22092-SBDatasheet33500.092" (L)-WR-22 Waveguide
SWI-22138-SBDatasheet33550.138" (L)-WR-22 Waveguide
SWI-19038-SBDatasheet40600.038" (L)38WR-19 Waveguide
SWI-19076-SBDatasheet40600.076" (L)76WR-19 Waveguide
SWI-19114-SBDatasheet40600.114" (L)114WR-19 Waveguide
SWI-15031-SBDatasheet50750.031" (L)31WR-15 Waveguide
SWI-15061-SBDatasheet50750.061" (L)61WR-15 Waveguide
SWI-15092-SBDatasheet50750.092" (L)92WR-15 Waveguide
SWI-12026-SBDatasheet60900.026" (L)26WR-12 Waveguide
SWI-12052-SBDatasheet60900.052" (L)-WR-12 Waveguide
SWI-12077-SBDatasheet60900.077" (L)77WR-12 Waveguide
SWI-10021-SBDatasheet751100.021" (L)21WR-10 Waveguide
SWI-10041-SBDatasheet751100.041" (L)41WR-10 Waveguide
SWI-10062-SBDatasheet751100.062" (L)62WR-10 Waveguide
SWI-08017-SBDatasheet901400.017" (L)17WR-08 Waveguide
SWI-08033-SBDatasheet901400.033" (L)33WR-08 Waveguide
SWI-08050-SBDatasheet901400.050" (L)50WR-08 Waveguide
