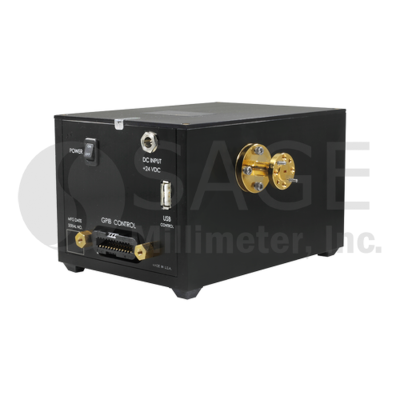

Waveguide Programmable Attenuators

メーカー名:Eravant

製品仕様

Product Specifications

Model NumberData sheetMinimum FrequencyMaximum FrequencyAttenuationReturn LossPower HandlingRF PortAttenuator Type
STA-60-06-P1Datasheet110 GHz170 GHz0 to 70 dB20 dB0.4 WWR-06 WaveguideProgrammable
STA-60-05-P1Datasheet140 GHz220 GHz0 to 60 dB20 dB0.15 WWR-05 WaveguideProgrammable
STA-60-28-P1-2Datasheet26.5 GHz40 GHz0 to 60 dB20 dB0.05 WWR-28 WaveguideProgrammable
STA-60-28-P1Datasheet26.5 GHz40 GHz0 to 70 dB22 dB2.5 WWR-28 WaveguideProgrammable
STA-60-22-P1Datasheet33 GHz50 GHz0 to 70 dB22 dB1.5 WWR-22 WaveguideProgrammable
STA-60-19-P1Datasheet40 GHz60 GHz0 to 70 dB22 dB1.5 WWR-19 WaveguideProgrammable
STA-60-15-P1Datasheet50 GHz75 GHz0 to 70 dB20 dB1 WWR-15 WaveguideProgrammable
STA-60-12-P1Datasheet60 GHz90 GHz0 to 70 dB20 dB0.8 WWR-12 WaveguideProgrammable
STA-60-10-P1Datasheet75 GHz110 GHz0 to 70 dB20 dB0.6 WWR-10 WaveguideProgrammable
STA-60-08-P1Datasheet90 GHz140 GHz0 to 70 dB20 dB0.5 WWR-08 WaveguideProgrammable

備考

Remarks
