〔電力分配器〕Waveguide Power Dividers

メーカー名:Eravant
導波管電力分割器(スプリッター)またはコンバイナは、ラボ、テスト機器、レーダーおよび通信システムで広く使用されています。
以下の標準モデルは18〜110 GHzをカバーしますが、最大170 GHzの周波数用に追加のモデルを提供できます。
これらの電力分配器は、最大32wayの2N方式の電力分配構成で使用できます。
以下のモデルには直角構成がリストされていますが、打ち上げ終了構成も利用できます。
これらの電力分割器は、詳細な設計と製造プロセスにより、低い挿入損失、高いポート分離、広い周波数範囲にわたるバランスの取れた同相電力分割を示します。

Waveguide Power DivideWaveguide power dividers (splitters) or combiners are widely used in labs, test instrumentation and radar and communication systems. The below standard models cover 18 to 110 GHz, however, additional models can be offered for frequencies up to 170 GHz. These power dividers are available in 2N way power dividing configurations, with a maximum of 32 ways. While the below models list right angle configurations, end launch configurations are also available. Through a detailed design and fabrication process, these power dividers exhibit low insertion loss, high port isolation and well-balanced, in-phase power dividing across a broad frequency range.rs

製品仕様

Product Specifications

ModelData sheetMinimum Frequency [GHz]Maximum Frequency [GHz]Insertion Loss [dB]Port Isolation [dB]Amplitude Imbalance [dB]Input/Output Return LossPower DivisionConfigurationInput/Output Ports
SWP-11417402-06-S1Datasheet1101701.520±0.615 dB2 WayRight Angle (90°)WR-06 WG
SWP-75311402-10-S1Datasheet751100.520±0.314 dB2 WayRight Angle (90°)WR-10 WG

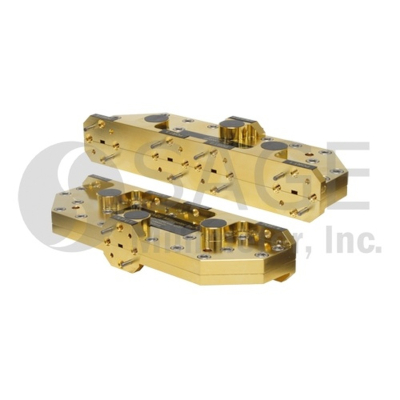

SWP-75311404-10-E1Datasheet75105120±0.41.2:14 WayIn-line (180°)WR-10 WG

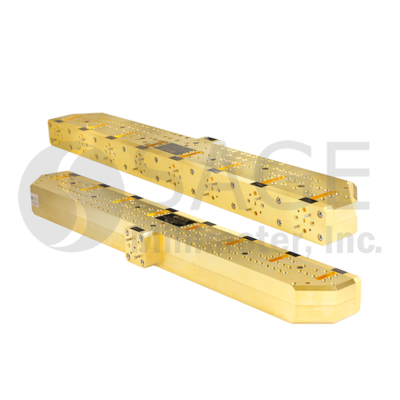

SWP-75311408-10-E2-HDatasheet75105420±0.514 dB8 WayIn-line (180°)WR-10 WG
SWP-90310404-10-E1Datasheet90105120±0.21.2:14 WayIn-line (180°)WR-10 WG
SWP-92396304-10-S1Datasheet9296120±0.21.5:14 WayRight Angle (90°)WR-10 WG
SWP-60390302-12-S1Datasheet60900.420±0.31.2:12 WayRight Angle (90°)WR-12 WG

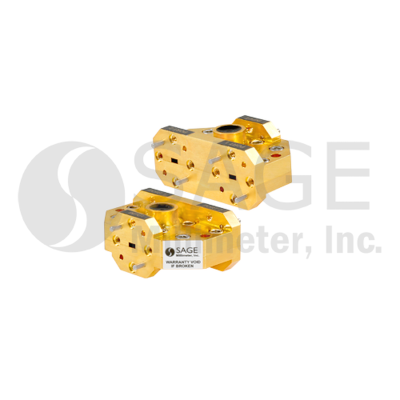

SWP-60390302-12-E1Datasheet60900.818±0.31.2:12 WayIn-line (180°)WR-12 WG
SWP-62386304-12-E1Datasheet62860.815±0.41.2:14 WayIn-line (180°)WR-12 WG
SWP-62386304-12-S1Datasheet62860.820±0.41.5:14 WayRight Angle (90°)WR-12 WG
SWP-71386302-12-E1Datasheet71860.818±0.31.5:12 WayIn-line (180°)WR-12 WG
SWP-71386304-12-E1Datasheet71860.815±0.41.2:14 WayIn-line (180°)WR-12 WG
SWP-71386302-12-S1Datasheet71860.420±0.31.5:12 WayRight Angle (90°)WR-12 WG
SWP-71386304-12-S2Datasheet7186120±0.31.5:14 WayRight Angle (90°)WR-12 WG
SWP-50375302-15-S1Datasheet50750.520±0.21.5:12 WayRight Angle (90°)WR-15 WG
SWP-50375302-15-E2Datasheet50750.520±0.215 dB2 WayIn-line (180°)WR-15 WG
SWP-50375304-15-E1Datasheet5075120±0.220 dB4 WayIn-line (180°)WR-15 WG
SWP-50370302-15-S1Datasheet50700.520±0.21.5:12 WayRight Angle (90°)WR-15 WG
SWP-55367304-15-E1Datasheet5567120±0.21.2:14 WayIn-line (180°)WR-15 WG
SWP-50366308-15-E1Datasheet50661.720±0.41.2:14 WayIn-line (180°)WR-15 WG
SWP-55365304-15-E2Datasheet5565125±0.4-4 WayIn-line (180°)WR-15 WG
SWP-59361304-15-E2Datasheet5961125±0.4-4 WayIn-line (180°)WR-15 WG
SWP-40360302-19-S1Datasheet40600.320-17 dB2 WayRight Angle (90°)WR-19 WG
SWP-43347302-19-S1Datasheet43470.320±0.21.3:12 WayRight Angle (90°)WR-19 WG
SWP-40360302-19-E2Datasheet40600.520-15 dB2 WayIn-line (180°)WR-19 WG
SWP-40350302-22-S1Datasheet40500.320-172 WayRight Angle (90°)WR-22 WG
SWP-40350304-22-E1-599Datasheet4050120±0.220 dB4 WayIn-line (180°)WR-22 WG
SWP-40350304-2F2F-E1Datasheet40501.820-15 dB4 WayIn-line (180°)2.4 mm (F)
SWP-46347304-2F2F-E1-SDatasheet45.5471.820±0.21.4:14 WayIn-line (180°)2.4 mm (F)
SWP-27340302-28-S1Datasheet27400.420±0.220 dB2 WayRight Angle (90°)WR-28 WG with UG-599/U Flange
SWP-27338302-28-S1Datasheet26.5380.420±0.220 dB2 WayRight Angle (90°)WR-28 WG with UG-599/U Flange
SWP-30340302-28-S1Datasheet30400.420±0.21.2:12 WayRight Angle (90°)WR-28 WG
SWP-30340304-28-E1Datasheet30400.520±0.415 dB4 WayIn-line (180°)WR-28 WG
SWP-27335304-28-E1Datasheet26.5350.525±0.4-4 WayIn-line (180°)WR-28 WG
SWP-27335316-28-C1Datasheet28.5351.220±0.21.2:116 WayIn-line (180°)WR-28 WG
SWP-29332304-28-E2-HDatasheet28.531.50.620±0.21.3:14 WayIn-line (180°)WR-28 WG
SWP-29331304-28-E1Datasheet28.530.50.525±0.40-4 WayIn-line (180°)WR-28 WG
SWP-29331308-28-E1Datasheet28.530.50.925±0.21.4:18 WayIn-line (180°)WR-28 WG
