Waveguide Motorized Switches

メーカー名:Eravant

製品仕様

Product Specifications

modelData sheetMinimum Frequency [GHz]Maximum Frequency [GHz]Insertion Loss [dB]Isolation [dB]Return Loss [dB]BiasSwitching Speed [mS]Power Handling [W (CW)]RF Ports
SWJ-42-TSDatasheet1826.50.16026±28 VDC/250 mA50100WR-42 Waveguide
SWJ-34-TSDatasheet22330.155523±28 VDC/250 mA50100WR-34 Waveguide
SWJ-28-TSDatasheet26.5400.155523±28 VDC/250 mA50100WR-28 Waveguide
SWJ-22-TSDatasheet33500.45020±28 VDC/250 mA50100WR-22 Waveguide
SWJ-19-TSDatasheet40600.25023±28 VDC/250 mA50100WR-19 Waveguide
SWJ-15-TSDatasheet50750.65020±28 VDC/250 mA125100WR-15 Waveguide

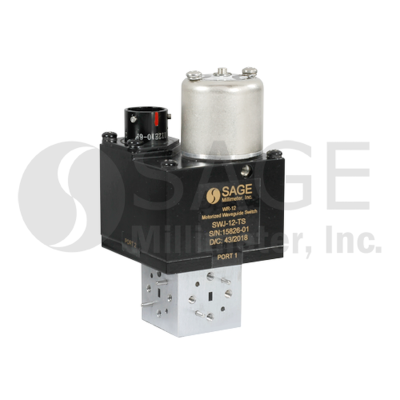

SWJ-12-TSDatasheet60900.75020+28 VDC/250 mA125100WR-12 Waveguide
SWJ-10-TSDatasheet751100.45020±28 VDC/250 mA125100WR-10 Waveguide

備考

Remarks
