Waveguide Low-Pass Filters

メーカー名:Eravant

製品仕様

Product Specifications

Model NumberData sheetMinimum Passband FrequencyMaximum Passband FrequencyMinimum Rejection Frequency, Low SideMaximum Rejection Frequency, Low SideMinimum Rejection Frequency, High SideMaximum Rejection Frequency, High SideRejectionWaveguide Port
SWF-15318340-75-L1Datasheet10 GHz15 GHzDC8 GHz18 GHz25 GHz40 dBWR-75 Waveguide
SWF-22325340-51-L1Datasheet15 GHz22 GHzDC12 GHz25 GHz40 GHz40 dBWR-51 Waveguide
SWF-32335340-28-L1Datasheet22 GHz32 GHzDC17 GHz37 GHz75 GHz40 dBWR-28 WG
SWF-34337340-28-L1Datasheet22 GHz34 GHzDC21 GHz37 GHz6740 dBWR-28 Waveguide
SWF-35340340-28-L1Datasheet22 GHz35 GHzDC20 GHz40 GHz72 GHz40 dBWR-28 WG
SWF-40348360-28-L1Datasheet26.5 GHz40 GHzDC21 GHz48 GHz90 GHz60 dBWR-28 Waveguide
SWF-60390350-28-L1Datasheet26 GHz60 GHzDC20 GHz90 GHz140 GHz50 dBWR-28 Waveguide
SWF-45350340-22-L1Datasheet30 GHz45 GHzDC25 GHz50 GHz135 GHz40 dBWR-22 WG
SWF-50354340-22-L1Datasheet30 GHz50 GHzDC25 GHz56 GHz100 GHz40 dBWR-22 WG
SWF-50354340-22-L1-1Datasheet30 GHz55 GHzDC25 GHz58 GHz100 GHz40 dBWR-22 WG
SWF-60364340-19-L1Datasheet36 GHz60 GHzDC29 GHz66 GHz120 GHz40 dBWR-19 WG
SWF-60366340-19-L1Datasheet36 GHz60 GHzDC30 GHz68 GHz120 GHz40 dBWR-19 WG
SWF-90311460-19-L1Datasheet36 GHz90 GHzDC30 GHz120 GHz200 GHz60 dBWR-19 WG

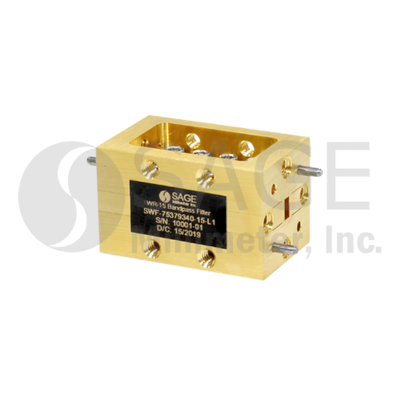

SWF-75379340-15-L1Datasheet50 GHz75 GHzDC40 GHz79 GHz120 GHz40 dBWR-15 Waveguide
SWF-75379340-12-L1Datasheet50 GHz75 GHzDC48 GHz79 GHz110 GHz40 dBWR-12 Waveguide
SWF-84387340-12-L1Datasheet50 GHz84 GHzDC48 GHz87 GHz110 GHz40 dBWR-12 Waveguide
SWF-90395340-12-L1Datasheet50 GHz90 GHzDC45 GHz95 GHz140 GHz40 dBWR-12 Waveguide
SWF-96312460-12-L1Datasheet60 GHz96 GHzDC49 GHz123 GHz200 GHz60 dBWR-12 Waveguide
SWF-11412440-10-L1Datasheet62 GHz110 GHzDC56 GHz120 GHz160 GHz50 dBWR-10 Waveguide

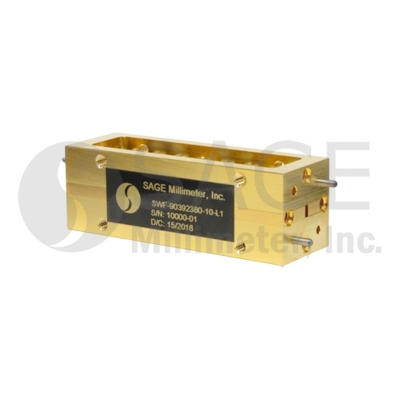

SWF-90392380-10-L1Datasheet62 GHz90 GHzDC59 GHz92 GHz140 GHz80 dBWR-10 Waveguide
SWF-12412460-10-L1Datasheet70 GHz118 GHzDC59 GHz123 GHz200 GHz60 dBWR-10 Waveguide

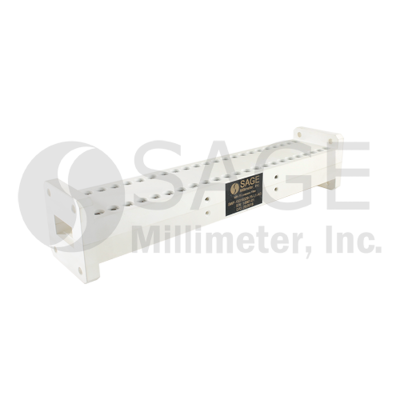

SWF-15316320-75-L1-AGDatasheet8.5 GHz14.5 GHzDC7.5 GHz15.5 GHz22 GHz30 dBWR-75 Waveguide

備考

Remarks
