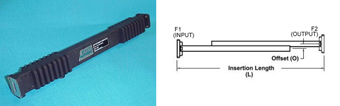

導波管:固定高電力高精度減衰器〔Waveguide High Power Fixed Precision〕

メーカー名:L3Harris Narda-ATM
●Electrical
Std. Attenuation values: 10, 20, 30, 40, 50dB
Nominal Attenuation accuracy: +/- 0.50dB
(+/- 0.75dB for WR42, WR34, WR28)
Freq. Sensitivity: +/- 0.60 dB
(+/- 0.75dB for WR42, WR34, WR28)

●Mechanical
Size: 下記参照
Body: Aluminum
仕上げ: Hi-Temp Black

製品仕様

Product Specifications

WG SizeFreq (GHz)Power WattVSWRStandard Model No.*Dimensions
Length
(L) Inches
Dimensions
Offset
(O) Inches
WR430
1.70 - 2.60
12001.15430-630HPA-dB-2-2
542.23
WR340
2.20 - 3.30
12001.15340-630HPA-dB-2-2
421.78
WR284
2.60 - 3.95
12001.15284-630HPA-dB-6-6
331.42
WR229
3.30 - 4.90
10001.15229-630HPA-dB-2-2
271.209
WR187
3.95 - 5.85
7501.15187-630HPA-dB-6-6
240.936
WR159
4.9 - 7.05
6251.15159-630HPA-dB-2-2
240.859
WR137
5.85 - 8.20
5001.15137-630HPA-dB-2-2
22.50.686
WR112
7.05 - 10.0
4251.15112-630HPA-dB-6-6
160.561
WR90
8.20 - 12.4
2251.1590-630HPA-dB-6-6
14.50.45
WR75
10.0 - 15.0
2001.1575-630HPA-dB-6-6
13.50.425
WR62
12.4 - 18.0
1001.1562-630HPA-dB-6-6
11.50.351
WR51
15.0 - 22.0
1001.1551-630HPA-dB-6-6
11.50.295
WR42
18.0 - 26.5
1001.1542-630HPA-dB-6-6
9.50.21
WR34
22.0 - 33.0
751.1534-630HPA-dB-6-6
9.50.21
WR28
26.5 - 40.0
751.1528-630HPA-dB-6-6
90.18

備考

Remarks
