Waveguide High-Pass Filters

メーカー名:Eravant

製品仕様

Product Specifications

modelData sheetMinimum Passband Frequency [GHz]Passband Insertion Loss [dB]Minimum Rejection FrequencyMaximum Rejection Frequency [GHz]Rejection [dB]Waveguide Port
SWF-10410440-08-H1Datasheet1042.5DC10040WR-08 Waveguide
SWF-13412460-08-H1Datasheet1292.5DC12460WR-08 Waveguide

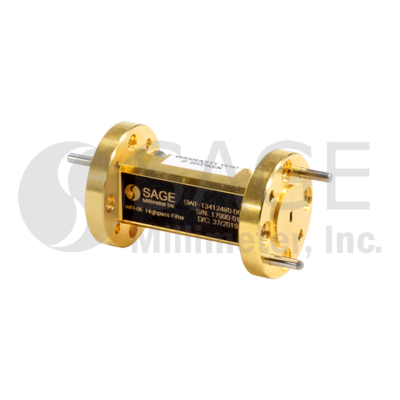

SWF-13413480-06-H1Datasheet1302.5DC12680WR-06 Waveguide
SWF-24323340-42-H1Datasheet24.10.5DC23.140WR-42 Waveguide

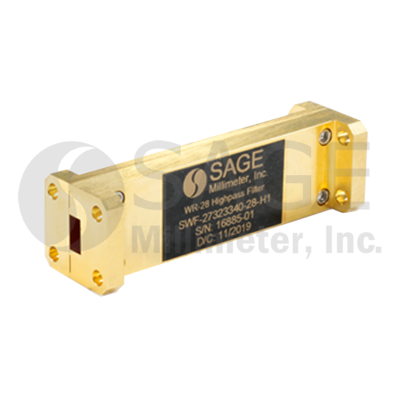

SWF-27323340-28-H1Datasheet26.50.5DC22.540WR-28 Waveguide
SWF-28324340-28-H1Datasheet280.5DC2440WR-28 Waveguide
SWF-29325340-28-H1Datasheet290.5DC2540WR-28 Waveguide
SWF-30326340-28-H1Datasheet300.5DC2640WR-28 Waveguide
SWF-34330340-22-H1Datasheet342DC3140WR-22 Waveguide
SWF-32332330-22-H1Datasheet35.51DC30.530WR-22 Waveguide
SWF-42340320-22-H2Datasheet41.51.5DC4020WR-22 Waveguide
SWF-44340340-19-H1Datasheet441DC4040WR-19 Waveguide
SWF-50346340-15-H1Datasheet501DC4640WR-15 Waveguide
SWF-55350340-15-H1-ADatasheet550.8DC5040WR-15 Waveguide
SWF-57356320-15-H1Datasheet571DC5620WR-15 Waveguide
SWF-57353340-15-H1-ADatasheet570.8DC5340WR-15 Waveguide
SWF-57353340-12-H1Datasheet570.8DC5340WR-12 Waveguide
SWF-60355340-12-H1Datasheet601DC5540WR-12 Waveguide
SWF-63357340-15-H1Datasheet631DC5740WR-15 Waveguide
SWF-63359340-12-H1Datasheet630.8DC5940WR-12 Waveguide
SWF-67363340-12-H1Datasheet671DC6540WR-12 Waveguide
SWF-70366340-12-H1Datasheet700.5DC6640WR-12 Waveguide
SWF-71367340-12-H1Datasheet710.8DC6740WR-12 Waveguide
SWF-75370340-10-H1Datasheet751DC7040WR-10 Waveguide
SWF-75371340-15-H1Datasheet751DC7140WR-15 Waveguide
SWF-81377340-12-H1Datasheet811DC7740WR-12 Waveguide
SWF-82380340-10-H1Datasheet821DC8040WR-10 Waveguide
SWF-84380340-10-H1Datasheet840.9DC8040WR-10 Waveguide
SWF-86382340-10-H1Datasheet861DC8240WR-10 Waveguide
SWF-90384340-10-H1Datasheet901DC8440WR-10 Waveguide

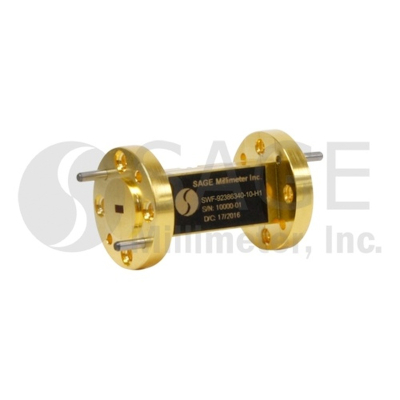

SWF-92386340-10-H1Datasheet921DC8640WR-10 Waveguide

備考

Remarks
