Waveguide Crossguide Couplers

メーカー名: Eravant

製品仕様

Product Specifications

ModelData sheetMinimum Frequency [GHz]Maximum Frequency [GHz]Insertion Loss [dB]Coupling [dB]Directivity [dB]VSWRCrossguide Coupler TypeInput/Output/Coupled Ports
SWX-75311420-10-3BDatasheet751100.720201.1:13-Port Split-BlockWR-10 WG
SWX-75311420-10-4BDatasheet751100.820201.1:14-Port Split-BlockWR-10 WG
SWX-10411415-10-4BDatasheet1001050.815151.1:14-Port Split-BlockWR-10 WG
SWX-92396320-10-4BDatasheet92960.820151.1:14-Port Split-BlockWR-10 WG
SWX-60390315-12-3BDatasheet60900.6151526 dB3-Port Split-BlockWR-12 WG
SWX-69390320-12-4BDatasheet69900.720151.2:14-Port Split-BlockWR-12 WG
SWX-71386320-12-4BDatasheet71860.720151.2:14-Port Split-BlockWR-12 WG
SWX-50375320-15-4BDatasheet50750.720201.1:14-Port Split-BlockWR-15 WG
SWX-50375330-15-4BDatasheet50750.730201.1:14-Port Split-BlockWR-15 WG
SWX-50375340-15-4BDatasheet50750.740201.1:14-Port Split-BlockWR-15 WG
SWX-40360320-19-4BDatasheet40600.520201.1:14-Port Split-BlockWR-19 WG
SWX-40360330-19-4BDatasheet40600.5302026 dB4-Port Split-BlockWR-19 WG
SWX-40360340-19-4BDatasheet40600.540201.1:14-Port Split-BlockWR-19 WG
SWX-40348320-19-4BDatasheet40480.520151.1:14-Port Split-BlockWR-19 WG
SWX-40348330-19-4BDatasheet40480.530151.1:14-Port Split-BlockWR-19 WG
SWX-40348340-19-4BDatasheet40480.440151.1:14-Port Split-BlockWR-19 WG
SWX-35345320-22-4BDatasheet35450.520151.1:14-Port Split-BlockWR-22 WG
SWX-35345330-22-4BDatasheet35450.530151.1:14-Port Split-BlockWR-22 WG
SWX-35345340-22-4BDatasheet35450.540151.1:14-Port Split-BlockWR-22 WG
SWX-31339315-28-4BDatasheet31390.515151.2:14-Port Split-BlockWR-28 WG
SWX-31339320-28-3BDatasheet31390.4201520 dB3-Port Split-BlockWR-28 WG
SWX-31339320-28-4BDatasheet31390.420151.2:14-Port Split-BlockWR-28 WG
SWX-31339330-28-4BDatasheet31390.330151.2:14-Port Split-BlockWR-28 WG
SWX-31339340-28-4BDatasheet31390.340151.2:14-Port Split-BlockWR-28 WG

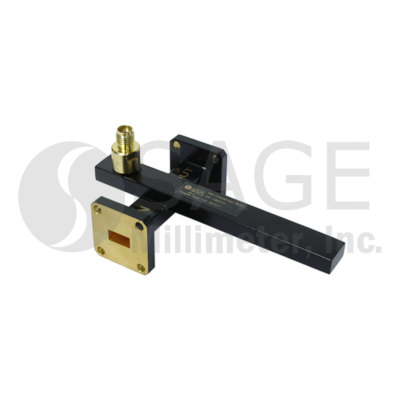

SWX-27329340-34KF-3W-BX1Datasheet26.528.5-401520 dB3-PortWR-34 WG, WR-34 WG, 2.92 mm (K)F
