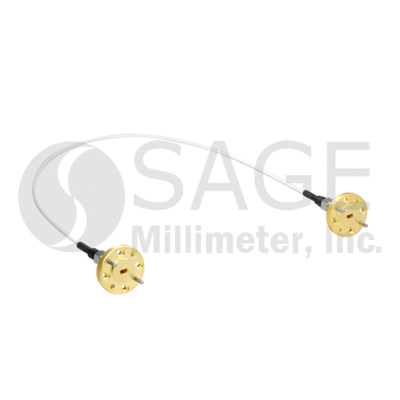

Waveguide Cable Assemblies

メーカー名:Eravant

製品仕様

Product Specifications

Model NumberData sheetMinimum FrequencyMaximum FrequencyReturn LossInsertion LossLengthWaveguides
SCW-15E15E012-F1Datasheet50 GHz75 GHz14 dB6.1 dB12"WR-15 Waveguide
SCW-15E15E006-F1Datasheet50 GHz75 GHz14 dB4.0 dB6"WR-15 Waveguide
SCW-1515012-F1Datasheet50 GHz75 GHz14 dB8.0 dB12"WR-15 Waveguide
SCW-1515006-F1Datasheet50 GHz75 GHz14 dB6.0 dB6"WR-15 Waveguide
SCW-12E12E012-F1Datasheet60 GHz90 GHz14 dB6.3 dB12"WR-12 Waveguide
SCW-12E12E006-F1Datasheet60 GHz90 GHz14 dB4.2 dB6"WR-12 Waveguide
SCW-1212012-F1Datasheet60 GHz90 GHz14 dB8.0 dB12"WR-12 Waveguide
SCW-1212006-F1Datasheet60 GHz90 GHz14 dB6.0 dB6"WR-12 Waveguide
SCW-1010012-F1Datasheet75 GHz110 GHz14 dB8.5 dB12"WR-10 Waveguide
SCW-1010006-F1Datasheet75 GHz110 GHz14 dB6.5 dB6"WR-10 Waveguide

備考

Remarks

お問い合わせからアフターフォローまで一貫して当社にお任せ下さい。
