Voltage Controlled Variable Attenuators

メーカー名: Eravant

製品仕様

Product Specifications

ModelData sheetMinimum Frequency [GHz]Maximum Frequency [GHz]Insertion Loss [dB]Attenuation [dB]Power Handling [dBm]Control BiasControl Speed [ns]RF Port
SKA-7531142520-1010-APDatasheet751102.520+200 to +5 VDC/5 mA100WR-10 Waveguide
SKA-7531142520-1010-A1Datasheet751102.520+200 to -5 VDC/5 mA100WR-10 Waveguide
SKA-9239633030-1010-APDatasheet9296330+200 to +5 VDC/5 mA100WR-10 Waveguide
SKA-9239633030-1010-A1Datasheet9296330+200 to -5 VDC/5 mA100WR-10 Waveguide
SKA-6039033030-1212-A1Datasheet60902.525+200 to -5 VDC/5 mA100WR-12 Waveguide
SKA-6039033030-1212-APDatasheet60902.525+200 to +5 VDC/5 mA100WR-12 Waveguide
SKA-7138633030-1212-A1Datasheet71862.525+200 to -5 VDC/5 mA100WR-12 Waveguide
SKA-7138633030-1212-APDatasheet71862.525+200 to +5 VDC/5 mA100WR-12 Waveguide
SKA-5037533030-1515-A1Datasheet50752.530+200 to -5 VDC/5 mA100WR-15 Waveguide
SKA-5037533030-1515-APDatasheet50752.530+200 to +5 VDC/5 mA100WR-15 Waveguide
SKA-4036032530-1919-A1Datasheet40602.530+200 to -5 VDC/5 mA100WR-19 Waveguide
SKA-3534532535-2222-APDatasheet35452.530+200 to +5 VDC/5 mA100WR-22 Waveguide
SKA-3534532535-2222-A1Datasheet35452.530+200 to -5 VDC/5 mA100WR-22 Waveguide
SKA-1834033537-KFKF-A1-MDatasheet18403.537+300 to -3 VDC-K(F)
SKA-2734032530-2828-A1Datasheet26.5401.2530+230 to -5 VDC/10 mA100WR-28 Waveguide
SKA-3034032530-2828-A1Datasheet30402.530+200 to -5 VDC/10 mA100WR-28 Waveguide
SKA-3034032530-2828-APDatasheet30402.530+200 to +5 VDC/10 mA100WR-28 Waveguide

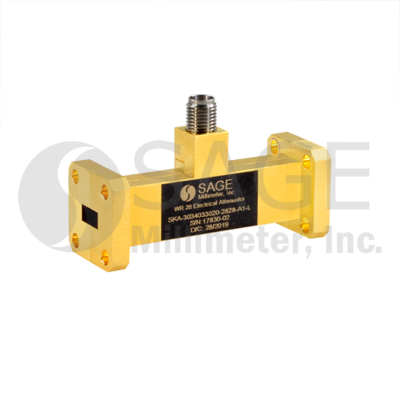

SKA-3034033020-2828-A1-LDatasheet3040320+200 to -5 VDC/10 mA100WR-28 Waveguide
SKA-3034033020-2828-AP-LDatasheet3040320+200 to +5 VDC/10 mA100WR-28 Waveguide

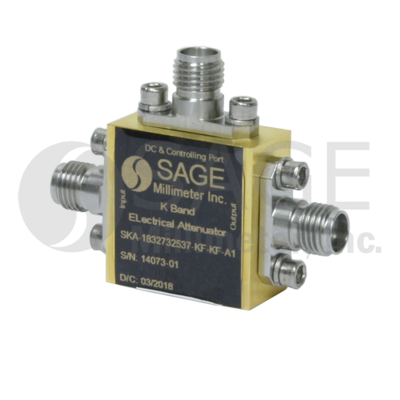

SKA-1832732537-KFKF-A1-MDatasheet1826.52.537+300 to -3 VDC-K(F)
SKA-1832732537-KFKF-AP-MDatasheet1826.52.537+300 to +3 VDC-K(F)
