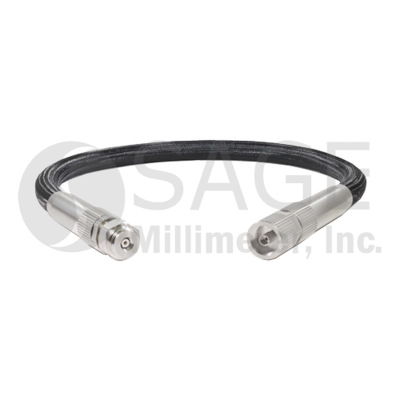

VNA Coaxial Cable Assemblies

メーカー名: Eravant

製品仕様

Product Specifications

Model NumberData sheetMinimum FrequencyMaximum FrequencyReturn LossImpedanceCable LengthCable TypeCable Outer DiameterMinimum Bending RadiusConnectors
STQ-CW-3F3F025-F1DatasheetDC26.5 GHz19 dB50 Ohms25"Flexible0.598"2.36"3.5 mm NMD Female and 3.5 mm Female
STQ-CW-3F3M025-F1DatasheetDC26.5 GHz19 dB50 Ohms25"Flexible0.598"2.36"3.5 mm NMD Female and 3.5 mm NMD Male
STQ-CW-KFKF025-F1DatasheetDC40 GHz17 dB50 Ohms25"Flexible0.598"2.36"2.92 mm NMD Female and 2.92 mm Female
STQ-CW-KFKM025-F1DatasheetDC40 GHz17 dB50 Ohms25"Flexible0.598"2.36"2.92 mm NMD Female and 2.92 mm NMD Male
STQ-CW-2F2F025-F1DatasheetDC50 GHz17 dB50 Ohms25"Flexible0.598"2.36"2.4 mm NMD Female and 2.4 mm Female
STQ-CW-2F2M025-F1DatasheetDC50 GHz17 dB50 Ohms25"Flexible0.598"2.36"2.4 mm NMD Female and 2.4 mm NMD Male
STQ-CW-VFVF025-F1DatasheetDC67 GHz15 dB50 Ohms25"Flexible0.598"2.36"1.85 mm NMD Female and 1.85 mm Female
STQ-CW-VFVM025-F1DatasheetDC67 GHz15 dB50 Ohms25"Flexible0.598"2.36"1.85 mm NMD Female and 1.85 mm NMD Male
STQ-CW-VFVM038-F1DatasheetDC67 GHz15 dB50 Ohms38"Flexible0.598"2.36"1.85 mm NMD Female and 1.85 mm NMD Male
STQ-CW-VFVM048-F1DatasheetDC67 GHz15 dB50 Ohms48"Flexible0.598"2.36"1.85 mm NMD Female and 1.85 mm NMD Male

備考

Remarks
