標準ゲイン・ホーン・アンテナ
仕様
| Model Number | Data sheet | Minimum Frequency | Maximum Frequency | Gain | 3 dB Beamwidth, E-Plane | 3 dB Beamwidth, H-Plane | Return Loss | Antenna Port |
|---|---|---|---|---|---|---|---|---|
| SAZ-2410-19-S1 |  | 40 GHz | 60 GHz | 24 dBi | 9.7° | 11° | 23 dB | WR-19 Waveguide |
| SAZ-2410-05-S1 | | 140 GHz | 220 GHz | 24 dBi | 9.7° | 10.9° | 23 dB | WR-05 Waveguide |
| SAZ-2410-06-S1 | | 110 GHz | 170 GHz | 24 dBi | 9.7° | 11° | 23 dB | WR-06 Waveguide |

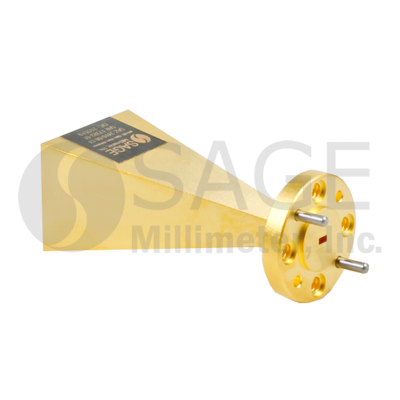

| SAZ-2410-08-S1 | | 90 GHz | 140 GHz | 24 dBi | 9.6° | 11° | 23 dB | WR-08 Waveguide |

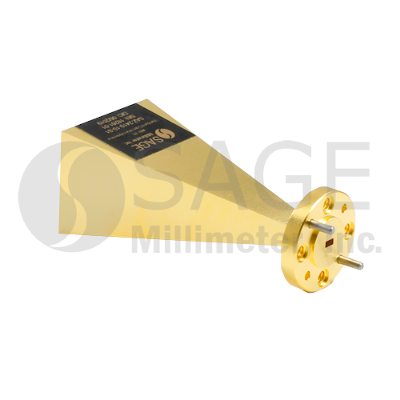

| SAZ-2410-10-S1 | | 75 GHz | 110 GHz | 24 dBi | 9.7° | 11° | 23 dB | WR-10 Waveguide |
| SAZ-2410-12-S1 | | 60 GHz | 90 GHz | 24 dBi | 9.7° | 11° | 23 dB | WR-12 Waveguide |
| SAZ-2410-15-S1 | | 50 GHz | 75 GHz | 24 dBi | 9.5° | 11° | 23 dB | WR-15 Waveguide |
| SAZ-2410-22-S1 | | 33 GHz | 50 GHz | 24 dBi | 9.7° | 11° | 23 dB | WR-22 Waveguide |
| SAZ-2410-28-S1 | | 26.5 GHz | 40 GHz | 24 dBi | 9.6° | 11° | 23 dB | WR-28 Waveguide |
| SAZ-2434432410-28-S1 | | 24 GHz | 44 GHz | 24 dBi | 9.4° | 10.8° | 20 dB | WR-28 Waveguide |
| SAZ-2410-34-S1 | | 22 GHz | 33 GHz | 24 dBi | 9.7° | 11° | 23 dB | WR-34 Waveguide |
| SAZ-2410-42-S1 | | 18 GHz | 26.5 GHz | 24 dBi | 9.7° | 11.0° | 23 dB | WR-42 Waveguide |
