SPST PIN Diode Switches

メーカー名:Eravant

製品仕様

Product Specifications

Model NumberData sheetMinimum FrequencyMaximum FrequencyInsertion LossIsolationBiasSwitching SpeedSwitch TypeRF Port
SKS-0525035050-2F2F-A3Datasheet0.5 GHz50 GHz5.0 dB50 dB±5 VDC/50 mA100 nsAbsorptive2.40 mm (F)
SKS-2734032030-2828-R1Datasheet26.5 GHz40 GHz2.0 dB30 dB±5 VDC/10 mA100 nsReflectiveWR-28 Waveguide
SKS-3433732330-2828-R1Datasheet34 GHz37 GHz2.3 dB30 dB±5 VDC/10 mA100 nsReflectiveWR-28 Waveguide
SKS-3534532535-2222-R1Datasheet35 GHz45 GHz2.3 dB35 dB±5 VDC/10 mA100 nsReflectiveWR-22 Waveguide
SKS-4036032530-1919-R1Datasheet40 GHz60 GHz2.5 dB30 dB±5 VDC/10 mA100 nsReflectiveWR-19 Waveguide
SKS-4535533030-VFVF-AADatasheet45 GHz55 GHz3.0 dB30 dB±5 VDC/50 mA100 nsAbsorptive2.92 mm (F)
SKS-5037533030-1515-R1Datasheet50 GHz75 GHz2.0 dB30 dB±5 VDC/10 mA100 nsReflectiveWR-15 Waveguide
SKS-6039033030-1212-R1Datasheet60 GHz90 GHz3.0 dB25 dB±5 VDC/10 mA100 nsReflectiveWR-12 Waveguide
SKS-7531142520-1010-R1Datasheet75 GHz110 GHz2.5 dB15 dB±5 VDC/10 mA100 nsReflectiveWR-10 Waveguide

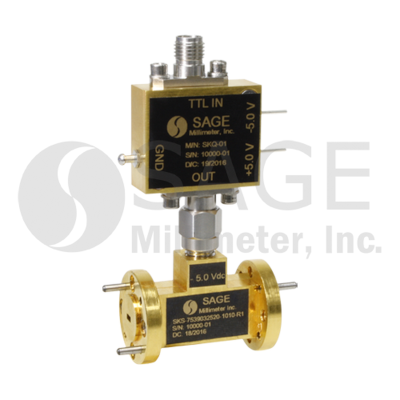

SKS-7539032520-1010-R1Datasheet75 GHz90 GHz2.5 dB15 dB±5 VDC/10 mA100 nsReflectiveWR-10 Waveguide

備考

Remarks
