Spot-Focusing Lens Antennas

メーカー名:Eravant

製品仕様

Product Specifications

ModelData sheetCenter Frequency [GHz]Focal LengthSpot SizePolarizationAntenna Port
SAQ-184010-05-S1Datasheet1801.0"0.076"LinearWR-05 Waveguide
SAQ-943205-10-S1Datasheet9420.5"1.30"LinearWR-10 Waveguide

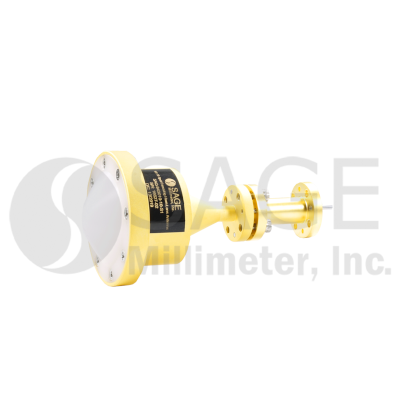

SAQ-943010-10-S1Datasheet941.0"0.18"LinearWR-10 Waveguide
SAQ-903017-10-S1Datasheet92.51.7"0.2"LinearWR-10 Waveguide
SAQ-813017-12-S1Datasheet811.7"0.2"LinearWR-12 Waveguide
SAQ-903071-10-S1Datasheet907.09"0.8"LinearWR-10 Waveguide
SAQ-603071-15-S1Datasheet607.09"0.8"LinearWR-15 Waveguide
SAQ-403085-219-S1Datasheet40.18.5"1"Linear and Circular0.219" Dia Circular WG
SAQ-333039-315-S1Datasheet26.5 to 403.94"1.2"Linear and Circular0.315" Dia Circular WG

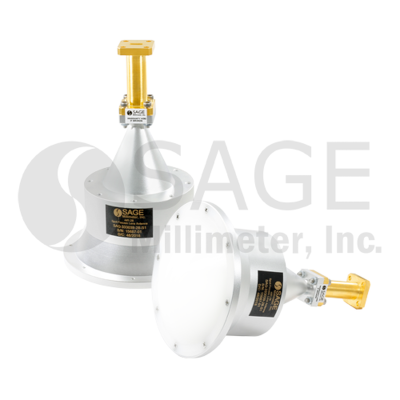

SAQ-333039-28-S1Datasheet26.5 to 403.94"1.2"LinearWR-28 WG
SAQ-353039-250-S1Datasheet353.94"1.16"Linear and Circular0.250" Dia Circular WG
SAQ-353039-28-S1Datasheet353.94"1.16"LinearWR-28 Waveguide
SAQ-273085-315-S1Datasheet26.88.5"1"Linear and CircularWR-28 Waveguide
SAQ-263079-28-S1Datasheet267.87"1.32"LinearWR-28 Waveguide
SAQ-243039-368-S1Datasheet243.94"0.67"Linear and Circular0.368" Dia Circular WG
SAQ-233039-396-S1Datasheet233.94"1.27"Linear and Circular0.396" Dia Circular WG
SAQ-133075-688-S1Datasheet13.47.5"1"Linear and CircularWR-62 Waveguide
SAQ-103039-938-S1Datasheet103.94"1.21"Linear and Circular0.938" Dia Circular WG

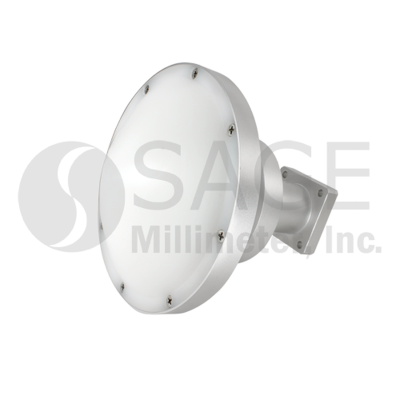

SAQ-103039-90-S1Datasheet10.33.94"1.75"LinearWR-90 Waveguide
