SPDT PIN Diode Switches

メーカー名:Eravant

製品仕様

Product Specifications

Model NumberData sheetMinimum FrequencyMaximum FrequencyInsertion LossIsolationPower HandlingBiasSwitching SpeedSwitch TypeRF Port
SKD-0524334560-KFKF-A3Datasheet0.5 GHz43 GHz4.5 dB60 dB-±5 VDC/ 100/50 mA100 nsAbsorptive2.92 mm (F)
SKD-1832732540-KFKF-R1Datasheet18 GHz26.5 GHz2.5 dB40 dB+20 dBm±5 VDC/30 mA100 nsReflective2.92 mm (F)
SKD-1832734560-KFKF-A3Datasheet18 GHz26.5 GHz4.5 dB60 dB-±5 VDC/ 100/50 mA100 nsAbsorptive2.92 mm (F)

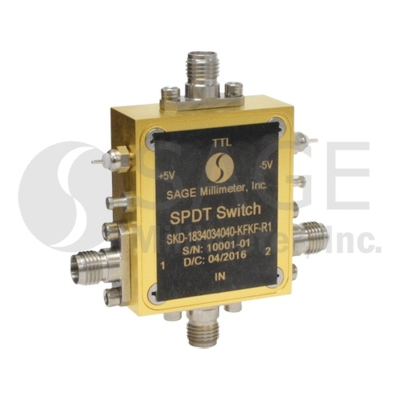

SKD-1834034040-KFKF-R1Datasheet18 GHz40 GHz4.0 dB40 dB+20 dBm±5 VDC/30 mA100 nsReflective2.92 mm (F)
SKD-1834034560-KFKF-A3Datasheet18 GHz40 GHz4.5 dB60 dB-±5 VDC/ 100/50 mA100 nsAbsorptive2.92 mm (F)
SKD-2239036025-1F1F-R1-MDatasheet22 GHz90 GHz6.0 dB25 dB±5 VDC/10 mA100 nsReflective1.0 mm Female
SKD-2734032735-KFKF-R1Datasheet26.5 GHz40 GHz2.7 dB35 dB+20 dBm±5 VDC/50 mA100 nsReflective2.92 mm (F)
SKD-2734034560-KFKF-A3Datasheet26.5 GHz40 GHz4.5 dB60 dB-±5 VDC/ 100/50 mA100 nsAbsorptive2.92 mm (F)
SKD-3335034530-2222-R1-MDatasheet33 GHz50 GHz4.5 dB30 dB+22 dBm±5 VDC/10 mA100 nsReflectiveWR-22 Waveguide
SKD-4535533030-VFVF-R3Datasheet45 GHz55 GHz3.0 dB30 dB-±5 VDC/50 mA100 nsReflective1.85 mm (F)
SKD-5037533035-1515-R1-MDatasheet50 GHz75 GHz3.0 dB35 dB+20 dBm±5 VDC/10 mA100 nsReflectiveWR-15 Waveguide
SKD-5039036025-1F1F-R1-MDatasheet50 GHz90 GHz6.0 dB25 dB±5 VDC/10 mA100 nsReflective1.0 mm Female
SKD-5537132725-1515-R1Datasheet55 GHz71 GHz2.7 dB25 dB+20 dBm±5 VDC/50 mA100 nsReflectiveWR-15 Waveguide
SKD-6039033025-1212-R1Datasheet60 GHz90 GHz3.0 dB25 dB+20 dBm±5 VDC/10 mA100 nsReflectiveWR-12 Waveguide
SKD-6039033530-1212-R1-MDatasheet60 GHz90 GHz3.5 dB30 dB+30 dBm±5 VDC/10 mA100 nsReflectiveWR-12 Waveguide

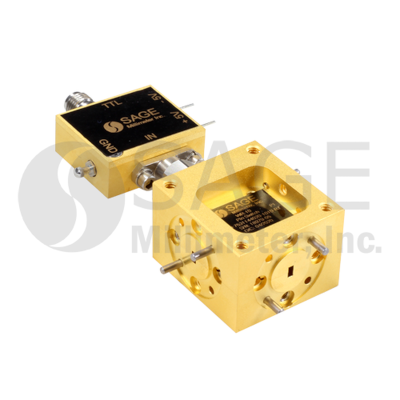

SKD-7531144020-1010-R1Datasheet75 GHz110 GHz4 dB20 dB+20 dBm±5 VDC/10 mA100 nsReflectiveWR-10 Waveguide

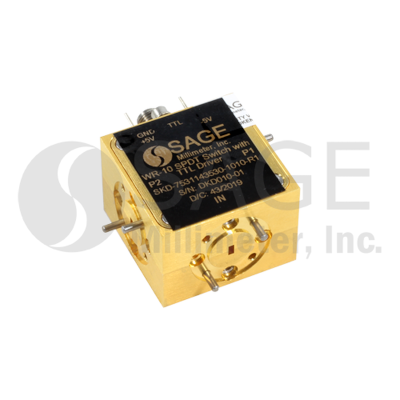

SKD-7531143530-1010-R1-MDatasheet75 GHz110 GHz3.5 dB30 dB+30 dBm±5 VDC/10 mA100 nsReflectiveWR-10 Waveguide
SKD-7538533025-1212-R1Datasheet75 GHz85 GHz3.0 dB25 dB+20 dBm±5 VDC/10 mA100 nsReflectiveWR-12 Waveguide
SKD-9031045030-1010-R1Datasheet90 GHz100 GHz5.0 dB30 dB+20 dBm±5 VDC/10 mA100 nsReflectiveWR-10 Waveguide
