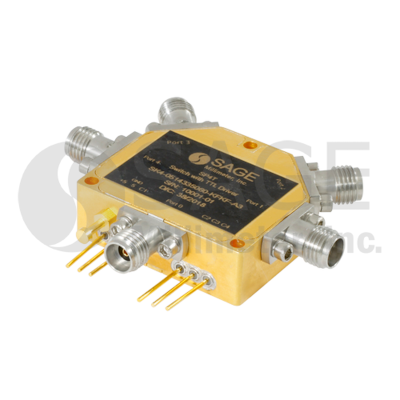

SP4T PIN Diode Switches

メーカー名:Eravant

製品仕様

Product Specifications

modelData sheetMinimum Frequency [GHz]Maximum Frequency [GHz]Insertion Loss [dB]Isolation [dB]Power Handling [dBm]BiasSwitching Speed [ns]Switch TypeRF Port
SK4-0524335060-KFKF-A3Datasheet0.543560-±5 VDC/ 100/50 mA100Absorptive2.92 mm (F)
SK4-1832735060-KFKF-A3Datasheet1826.5560-±5 VDC/ 100/50 mA100Absorptive2.92 mm (F)
SK4-1834035540-KFKF-R1Datasheet18405.54020±5 VDC/80 mA100Reflective2.92 mm (F)
SK4-1834035060-KFKF-A3Datasheet1840560-±5 VDC/ 100/50 mA100Absorptive2.92 mm (F)
SK4-2734035540-KFKF-R1Datasheet26.5405.54020±5 VDC/80 mA100Reflective2.92 mm (F)
SK4-2734035060-KFKF-A3Datasheet26.540560-±5 VDC/ 100/50 mA100Absorptive2.92 mm (F)
SK4-5037536535-1515-R1-MDatasheet50756.53520±5 VDC/100 mA100ReflectiveWR-15 Waveguide
SK4-5536536535-1515-R1-MDatasheet55656.53520±5 VDC/100 mA100ReflectiveWR-15 Waveguide
SK4-6039038030-1212-R1-MDatasheet609083020±5 VDC/30 mA100ReflectiveWR-12 Waveguide
SK4-6937738030-1212-R1-MDatasheet697783020±5 VDC/30 mA100ReflectiveWR-12 Waveguide

備考

Remarks
