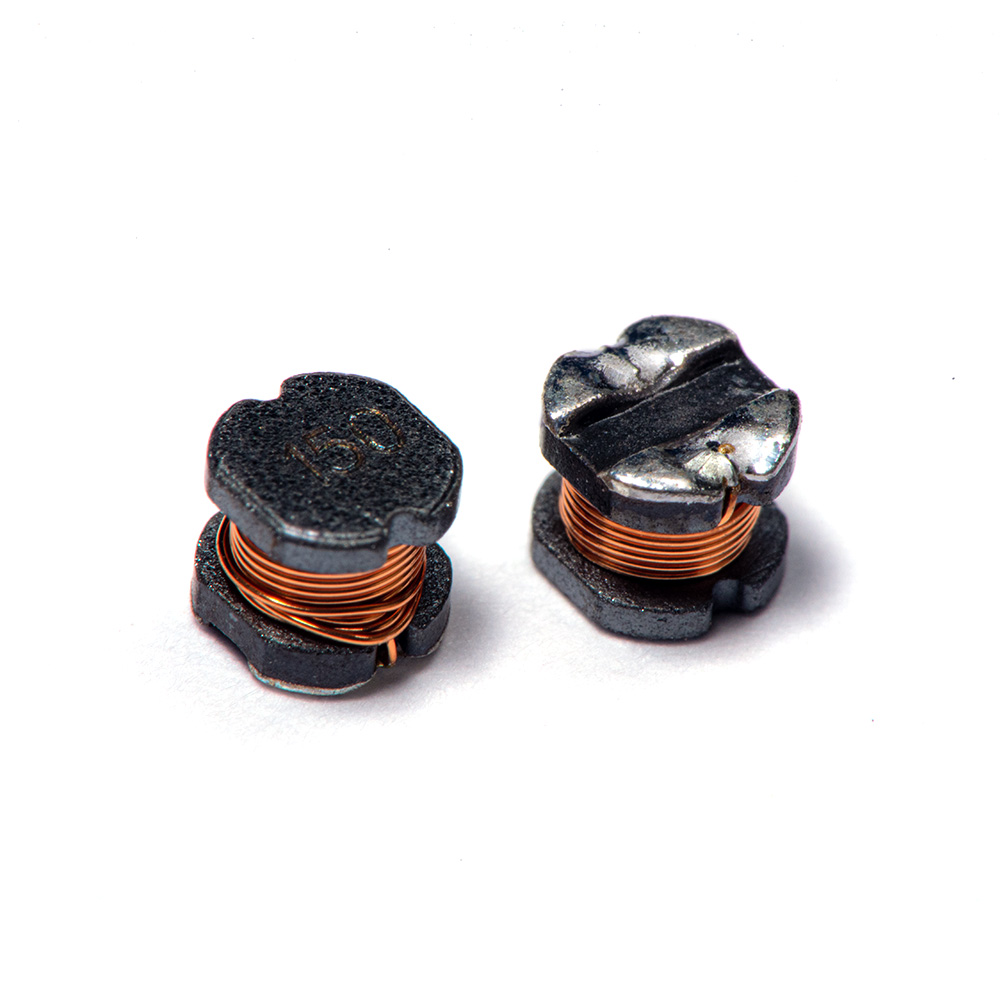

SMDパワーインダクタ〔SMD Power Inductor〕SR

高性能フェライトボディの銅線巻線と端子への直接接続により、指定されたインダクタンスが提供され、DC抵抗が低くなり、定格電流が高くなります。
SMDパワーインダクタ非シールドは、小規模および中規模の電力回路アプリケーションに使用できます。
インダクタの端子としてメタライズまたはリードフレームを使用し、SMTプロセスで利用可能な優れたはんだ付け能力とはんだ付け熱に対する耐性を備えています。
Copper wire winding on high performance ferrite body & direct connect to terminals offer specified inductance with lower DC resistance, higher current rating.
SMD power inductor Non-shielded is available for small & median power circuit application.
It use metalizes or lead frame as terminals of inductor with excellent solder ability & resistance to soldering heat ability available for SMT process.

製品仕様

Product Specifications

Part no.L*W*T [mm]Inductance [µH]RDC [Ω]Specification
SR03028R2ML3.2*2.8*2.58.20.2Datasheet
SR0302821KL3.2*2.8*2.582022.5Datasheet
SR0302820KL3.2*2.8*2.5822.1Datasheet
SR03026R8ML3.2*2.8*2.56.80.18Datasheet
SR0302681KL3.2*2.8*2.568018Datasheet
SR0302680KL3.2*2.8*2.5681.85Datasheet
SR03025R6ML3.2*2.8*2.55.60.16Datasheet
SR0302561KL3.2*2.8*2.556016Datasheet
SR0302560KL3.2*2.8*2.5561.45Datasheet
SR03024R7ML3.2*2.8*2.54.70.15Datasheet
SR0302471KL3.2*2.8*2.547014.3Datasheet
SR0302470KL3.2*2.8*2.5471.27Datasheet
SR03023R9ML3.2*2.8*2.53.90.12Datasheet
SR03023R3ML3.2*2.8*2.53.30.11Datasheet
SR0302391KL3.2*2.8*2.539010.8Datasheet
SR0302390KL3.2*2.8*2.5391.12Datasheet
SR0302331KL3.2*2.8*2.533010Datasheet
SR0302330KL3.2*2.8*2.5330.85Datasheet
SR03022R7ML3.2*2.8*2.52.70.1Datasheet
SR03022R2ML3.2*2.8*2.52.20.09Datasheet
SR0302271KL3.2*2.8*2.52708.6Datasheet
SR0302270ML3.2*2.8*2.5270.75Datasheet
SR0302221KL3.2*2.8*2.52205.7Datasheet
SR0302220ML3.2*2.8*2.5220.66Datasheet
SR03021R8ML3.2*2.8*2.51.80.08Datasheet
SR03021R5ML3.2*2.8*2.51.50.07Datasheet
SR03021R2ML3.2*2.8*2.51.20.07Datasheet
SR03021R0ML3.2*2.8*2.510.06Datasheet
SR0302181KL3.2*2.8*2.51805Datasheet
SR0302180ML3.2*2.8*2.5180.46Datasheet
SR0302151KL3.2*2.8*2.51504.6Datasheet
SR0302150ML3.2*2.8*2.5150.4Datasheet
SR0302122KL3.2*2.8*2.5120030Datasheet
SR0302121KL3.2*2.8*2.51203.2Datasheet
SR0302120ML3.2*2.8*2.5120.28Datasheet
SR0302102KL3.2*2.8*2.5100026Datasheet
SR0302101KL3.2*2.8*2.51002.85Datasheet
SR0302100ML3.2*2.8*2.5100.25Datasheet
SR04038R2ML4.5*4*3.28.20.132Datasheet
SR0403821KL4.5*4*3.282012Datasheet
SR0403820KL4.5*4*3.2821.27Datasheet
SR04036R8ML4.5*4*3.26.80.117Datasheet
SR0403681KL4.5*4*3.26808.6Datasheet
SR0403680KL4.5*4*3.2681.117Datasheet
SR04035R6ML4.5*4*3.25.60.101Datasheet
SR0403561KL4.5*4*3.25607.8Datasheet
SR0403560KL4.5*4*3.2560.937Datasheet
SR04034R7ML4.5*4*3.24.70.094Datasheet
SR0403471KL4.5*4*3.24707Datasheet
SR0403470KL4.5*4*3.2470.844Datasheet
SR04033R9ML4.5*4*3.23.90.076Datasheet
SR04033R3ML4.5*4*3.23.30.058Datasheet
SR0403391KL4.5*4*3.23906.4Datasheet
SR0403390KL4.5*4*3.2390.587Datasheet
SR0403331KL4.5*4*3.23306Datasheet
SR0403330KL4.5*4*3.2330.54Datasheet
SR04032R7ML4.5*4*3.22.70.052Datasheet
SR04032R2ML4.5*4*3.22.20.047Datasheet
SR0403271KL4.5*4*3.22705Datasheet
SR0403270ML4.5*4*3.2270.522Datasheet
SR0403221KL4.5*4*3.22204.4Datasheet
SR0403220ML4.5*4*3.2220.378Datasheet
SR04031R8ML4.5*4*3.21.80.042Datasheet
SR04031R4ML4.5*4*3.21.40.038Datasheet
SR04031R0ML4.5*4*3.210.033Datasheet
SR0403181KL4.5*4*3.21803.9Datasheet
SR0403180ML4.5*4*3.2180.338Datasheet
SR0403151KL4.5*4*3.21503.4Datasheet
SR0403150ML4.5*4*3.2150.235Datasheet
SR0403121KL4.5*4*3.21202.2Datasheet
SR0403120ML4.5*4*3.2120.21Datasheet
SR0403102KL4.5*4*3.2100014Datasheet
SR0403101KL4.5*4*3.21001.9Datasheet
SR0403100ML4.5*4*3.2100.182Datasheet
SR0502821ML5*4.5*282012Datasheet
SR0502681ML5*4.5*268010.5Datasheet
SR0502561ML5*4.5*25608.8Datasheet
SR0502471ML5*4.5*24706.5Datasheet
SR0502391ML5*4.5*23905.4Datasheet
SR0502331ML5*4.5*23305Datasheet
SR0502272ML5*4.5*2270040Datasheet
SR0502271ML5*4.5*22703.9Datasheet
SR0502222ML5*4.5*2220034.5Datasheet
SR0502221ML5*4.5*22203.2Datasheet
SR0502182ML5*4.5*2180028.5Datasheet
SR0502181ML5*4.5*21802.5Datasheet
SR0502152ML5*4.5*2150022Datasheet
SR0502151ML5*4.5*21502.2Datasheet
SR0502122ML5*4.5*2120018.5Datasheet
SR0502121ML5*4.5*21201.7Datasheet
SR0502102ML5*4.5*2100016Datasheet
SR0502101ML5*4.5*21001.5Datasheet
SR0503R50YL5*4.5*30.50.012Datasheet
SR05038R2ML5*4.5*38.20.099Datasheet
SR0503822JL5*4.5*3820092Datasheet
SR0503821KL5*4.5*382010Datasheet
SR0503820KL5*4.5*3820.88Datasheet
SR05036R8ML5*4.5*36.80.088Datasheet
SR0503682JL5*4.5*3680080Datasheet
SR0503681KL5*4.5*36807.5Datasheet
SR0503680KL5*4.5*3680.76Datasheet
SR05035R6ML5*4.5*35.60.072Datasheet
SR0503562JL5*4.5*3560072Datasheet
SR0503561KL5*4.5*35605.7Datasheet
SR0503560KL5*4.5*3560.71Datasheet
SR05034R7ML5*4.5*34.70.068Datasheet
SR0503472JL5*4.5*3470048Datasheet
SR0503471KL5*4.5*34704.9Datasheet
SR0503470KL5*4.5*3470.6Datasheet
SR05033R9ML5*4.5*33.90.062Datasheet
SR05033R3ML5*4.5*33.30.056Datasheet
SR0503392JL5*4.5*3390040Datasheet
SR0503391KL5*4.5*33903.7Datasheet
SR0503390KL5*4.5*3390.42Datasheet
SR0503332JL5*4.5*3330038Datasheet
SR0503331KL5*4.5*33303.3Datasheet
SR0503330KL5*4.5*3330.38Datasheet
SR05032R7ML5*4.5*32.70.04Datasheet
SR0503272JL5*4.5*3270026Datasheet
SR0503271KL5*4.5*32702.9Datasheet
SR0503270ML5*4.5*3270.32Datasheet
SR0503222JL5*4.5*3220022Datasheet
SR0503221KL5*4.5*32202.5Datasheet
SR0503220ML5*4.5*3220.28Datasheet
SR05031R8ML5*4.5*31.80.03Datasheet
SR05031R2ML5*4.5*31.20.02Datasheet
SR05031R0ML5*4.5*310.016Datasheet
SR0503182JL5*4.5*3180015Datasheet
SR0503181KL5*4.5*31802.3Datasheet
SR0503180ML5*4.5*3180.21Datasheet
SR0503153JL5*4.5*315000168Datasheet
SR0503152JL5*4.5*3150013Datasheet
SR0503151KL5*4.5*31502Datasheet
SR0503150ML5*4.5*3150.19Datasheet
SR0503123JL5*4.5*312000148Datasheet
SR0503122JL5*4.5*3120012Datasheet
SR0503121KL5*4.5*31201.7Datasheet
SR0503120ML5*4.5*3120.16Datasheet
SR0503103JL5*4.5*310000110Datasheet
SR0503102KL5*4.5*3100011.5Datasheet
SR0503101KL5*4.5*31001.6Datasheet
SR0503100ML5*4.5*3100.13Datasheet
SR06028R2ML5.6*2.5*2.38.20.11Datasheet
SR0602821KL5.6*2.5*2.38209.8Datasheet
SR0602820KL5.6*2.5*2.3821.1Datasheet
SR06026R8ML5.6*2.5*2.36.80.1Datasheet
SR0602681KL5.6*2.5*2.36807.5Datasheet
SR0602680KL5.6*2.5*2.3680.82Datasheet
SR06025R6ML5.6*2.5*2.35.60.085Datasheet
SR0602561KL5.6*2.5*2.35606.5Datasheet
SR0602560KL5.6*2.5*2.3560.7Datasheet
SR06024R7ML5.6*2.5*2.34.70.07Datasheet
SR0602471KL5.6*2.5*2.34705.2Datasheet
SR0602470KL5.6*2.5*2.3470.56Datasheet
SR06023R9ML5.6*2.5*2.33.90.06Datasheet
SR06023R3ML5.6*2.5*2.33.30.055Datasheet
SR0602391KL5.6*2.5*2.33904.3Datasheet
SR0602390KL5.6*2.5*2.3390.48Datasheet
SR0602331KL5.6*2.5*2.33303.8Datasheet
SR0602330KL5.6*2.5*2.3330.42Datasheet
SR06022R7ML5.6*2.5*2.32.70.05Datasheet
SR06022R2ML5.6*2.5*2.32.20.045Datasheet
SR0602271KL5.6*2.5*2.32703Datasheet
SR0602270ML5.6*2.5*2.3270.32Datasheet
SR0602221KL5.6*2.5*2.32202.2Datasheet
SR0602220ML5.6*2.5*2.3220.28Datasheet
SR06021R8ML5.6*2.5*2.31.80.04Datasheet
SR06021R4ML5.6*2.5*2.31.40.035Datasheet
SR06021R0ML5.6*2.5*2.310.03Datasheet
SR0602181KL5.6*2.5*2.31801.9Datasheet
SR0602180ML5.6*2.5*2.3180.22Datasheet
SR0602151KL5.6*2.5*2.31501.65Datasheet
SR0602150ML5.6*2.5*2.3150.18Datasheet
SR0602121KL5.6*2.5*2.31201.35Datasheet
SR0602120ML5.6*2.5*2.3120.15Datasheet
SR0602102KL5.6*2.5*2.3100011Datasheet
SR0602101KL5.6*2.5*2.31001.25Datasheet
SR0602100ML5.6*2.5*2.3100.14Datasheet
SR0603820KL5.6*3.7*2.3820.84Datasheet
SR06037R5ML5.6*3.7*2.37.50.12Datasheet
SR06036R8ML5.6*3.7*2.36.80.11Datasheet
SR0603680KL5.6*3.7*2.3680.72Datasheet
SR06035R0ML5.6*3.7*2.350.07Datasheet
SR0603560KL5.6*3.7*2.3560.615Datasheet
SR06034R7ML5.6*3.7*2.34.70.066Datasheet
SR0603471KL5.6*3.7*2.34704.55Datasheet
SR0603470KL5.6*3.7*2.3470.55Datasheet
SR06033R9ML5.6*3.7*2.33.90.05Datasheet
SR06033R3ML5.6*3.7*2.33.30.048Datasheet
SR0603391KL5.6*3.7*2.33903.4Datasheet
SR0603390KL5.6*3.7*2.3390.46Datasheet
SR0603331KL5.6*3.7*2.33303.2Datasheet
SR0603330KL5.6*3.7*2.3330.45Datasheet
SR06032R5ML5.6*3.7*2.32.50.045Datasheet
SR0603271KL5.6*3.7*2.32702.4Datasheet
SR0603270ML5.6*3.7*2.3270.3Datasheet
SR0603221KL5.6*3.7*2.32202Datasheet
SR0603220ML5.6*3.7*2.3220.275Datasheet
SR06031R5ML5.6*3.7*2.31.50.04Datasheet
SR0603181KL5.6*3.7*2.31801.6Datasheet
SR0603180ML5.6*3.7*2.3180.25Datasheet
SR0603151KL5.6*3.7*2.31501.43Datasheet
SR0603150ML5.6*3.7*2.3150.18Datasheet
SR0603121KL5.6*3.7*2.31201.1Datasheet
SR0603120ML5.6*3.7*2.3120.16Datasheet
SR0603101KL5.6*3.7*2.31000.95Datasheet
SR0603100ML5.6*3.7*2.3100.15Datasheet
SR08058R2ML7.5*5*2.68.20.05Datasheet
SR0805821KL7.5*5*2.68204Datasheet
SR0805820KL7.5*5*2.6820.37Datasheet
SR08056R8ML7.5*5*2.66.80.04Datasheet
SR0805681KL7.5*5*2.66802.8Datasheet
SR0805680KL7.5*5*2.6680.3Datasheet
SR08055R6ML7.5*5*2.65.60.035Datasheet
SR0805561KL7.5*5*2.65602.5Datasheet
SR0805560KL7.5*5*2.6560.24Datasheet
SR08054R7ML7.5*5*2.64.70.033Datasheet
SR0805472KL7.5*5*2.6470021Datasheet
SR0805471KL7.5*5*2.64701.96Datasheet
SR0805470KL7.5*5*2.6470.2Datasheet
SR08053R9ML7.5*5*2.63.90.024Datasheet
SR08053R3ML7.5*5*2.63.30.022Datasheet
SR0805392KL7.5*5*2.6390018Datasheet
SR0805391KL7.5*5*2.63901.77Datasheet
SR0805390KL7.5*5*2.6390.16Datasheet
SR0805332KL7.5*5*2.6330016.5Datasheet
SR0805331KL7.5*5*2.63301.26Datasheet
SR0805330KL7.5*5*2.6330.14Datasheet
SR08052R5ML7.5*5*2.62.50.02Datasheet
SR0805272KL7.5*5*2.6270011.8Datasheet
SR0805271KL7.5*5*2.62701.11Datasheet
SR0805270ML7.5*5*2.6270.12Datasheet
SR0805222KL7.5*5*2.6220010Datasheet
SR0805221KL7.5*5*2.62200.96Datasheet
SR0805220ML7.5*5*2.6220.11Datasheet
SR08051R5ML7.5*5*2.61.50.015Datasheet
SR0805182KL7.5*5*2.618009.2Datasheet
SR0805181KL7.5*5*2.61800.77Datasheet
SR0805180ML7.5*5*2.6180.1Datasheet
SR0805152KL7.5*5*2.615008Datasheet
SR0805151KL7.5*5*2.61500.68Datasheet
SR0805150ML7.5*5*2.6150.09Datasheet
SR0805122KL7.5*5*2.612006.8Datasheet
SR0805121KL7.5*5*2.61200.48Datasheet
SR0805120ML7.5*5*2.6120.08Datasheet
SR0805102KL7.5*5*2.610004.5Datasheet
SR0805101KL7.5*5*2.61000.45Datasheet
SR0805100ML7.5*5*2.6100.07Datasheet
SR09068R2ML9.5*10.5*68.20.065Datasheet
SR0906822KL9.5*10.5*6820028Datasheet
SR0906821KL9.5*10.5*68202.75Datasheet
SR0906820KL9.5*10.5*6820.33Datasheet
SR09066R8ML9.5*10.5*66.80.06Datasheet
SR0906682KL9.5*10.5*6680023Datasheet
SR0906681KL9.5*10.5*66802.4Datasheet
SR0906680KL9.5*10.5*6680.31Datasheet
SR09065R6ML9.5*10.5*65.60.055Datasheet
SR0906562KL9.5*10.5*6560020Datasheet
SR0906561KL9.5*10.5*65602.1Datasheet
SR0906560KL9.5*10.5*6560.26Datasheet
SR09064R7ML9.5*10.5*64.70.05Datasheet
SR0906472KL9.5*10.5*6470015Datasheet
SR0906471KL9.5*10.5*64701.63Datasheet
SR0906470KL9.5*10.5*6470.23Datasheet
SR09063R9ML9.5*10.5*63.90.043Datasheet
SR0906392KL9.5*10.5*6390013.5Datasheet
SR0906391KL9.5*10.5*63901.4Datasheet
SR0906390KL9.5*10.5*6390.19Datasheet
SR0906332KL9.5*10.5*6330010Datasheet
SR0906331KL9.5*10.5*63301.27Datasheet
SR0906330KL9.5*10.5*6330.18Datasheet
SR09062R7ML9.5*10.5*62.70.038Datasheet
SR09062R2ML9.5*10.5*62.20.032Datasheet
SR0906272KL9.5*10.5*627009Datasheet
SR0906271KL9.5*10.5*62701Datasheet
SR0906270KL9.5*10.5*6270.15Datasheet
SR0906222KL9.5*10.5*622008Datasheet
SR0906221KL9.5*10.5*62200.85Datasheet
SR0906220ML9.5*10.5*6220.13Datasheet
SR0906182KL9.5*10.5*618005.8Datasheet
SR0906181KL9.5*10.5*61800.64Datasheet
SR0906180ML9.5*10.5*6180.12Datasheet
SR0906152KL9.5*10.5*615005Datasheet
SR0906151KL9.5*10.5*61500.56Datasheet
SR0906150ML9.5*10.5*6150.11Datasheet
SR0906122KL9.5*10.5*612004Datasheet
SR0906121KL9.5*10.5*61200.43Datasheet
SR0906120ML9.5*10.5*6120.1Datasheet
SR0906103KL9.5*10.5*61000033Datasheet
SR0906102KL9.5*10.5*610003.5Datasheet
SR0906101KL9.5*10.5*61000.39Datasheet
SR0906100ML9.5*10.5*6100.09Datasheet
SR10068R2MS9.5*5.5*2.98.20.048Datasheet
SR1006821KS9.5*5.5*2.98202.55Datasheet
SR1006820KS9.5*5.5*2.9820.25Datasheet
SR10066R8MS9.5*5.5*2.96.80.044Datasheet
SR1006681KS9.5*5.5*2.96802.25Datasheet
SR1006680KS9.5*5.5*2.9680.22Datasheet
SR10065R6MS9.5*5.5*2.95.60.04Datasheet
SR1006561KS9.5*5.5*2.95601.9Datasheet
SR1006560KS9.5*5.5*2.9560.19Datasheet
SR10064R7MS9.5*5.5*2.94.70.036Datasheet
SR1006472KS9.5*5.5*2.9470018Datasheet
SR1006471KS9.5*5.5*2.94701.48Datasheet
SR1006470KS9.5*5.5*2.9470.17Datasheet
SR10063R9MS9.5*5.5*2.93.90.027Datasheet
SR10063R3MS9.5*5.5*2.93.30.024Datasheet
SR1006392KS9.5*5.5*2.9390014.8Datasheet
SR1006391KS9.5*5.5*2.93901.3Datasheet
SR1006390KS9.5*5.5*2.9390.14Datasheet
SR1006332KS9.5*5.5*2.9330013.5Datasheet
SR1006331KS9.5*5.5*2.93301.15Datasheet
SR1006330KS9.5*5.5*2.9330.12Datasheet
SR10062R2MS9.5*5.5*2.92.20.021Datasheet
SR1006272KS9.5*5.5*2.9270011.6Datasheet
SR1006271KS9.5*5.5*2.92700.97Datasheet
SR1006270MS9.5*5.5*2.9270.11Datasheet
SR1006222KS9.5*5.5*2.922007.6Datasheet
SR1006221KS9.5*5.5*2.92200.73Datasheet
SR1006220MS9.5*5.5*2.9220.1Datasheet
SR10061R5MS9.5*5.5*2.91.50.018Datasheet
SR1006182KS9.5*5.5*2.918006.8Datasheet
SR1006181KS9.5*5.5*2.91800.63Datasheet
SR1006180MS9.5*5.5*2.9180.09Datasheet
SR1006152KS9.5*5.5*2.915005Datasheet
SR1006151KS9.5*5.5*2.91500.47Datasheet
SR1006150MS9.5*5.5*2.9150.08Datasheet
SR1006122KS9.5*5.5*2.912004.2Datasheet
SR1006121KS9.5*5.5*2.91200.4Datasheet
SR1006120MS9.5*5.5*2.9120.07Datasheet
SR1006102KS9.5*5.5*2.910003.1Datasheet
SR1006101KS9.5*5.5*2.91000.35Datasheet
SR1006100MS9.5*5.5*2.9100.06Datasheet

備考

Remarks

ABC台湾エレクトロニクス社は、チップインダクタ、非シールドパワーインダクタ、シールドパワーインダクタ、セミシールドパワーインダクタ、大電流パワーインダクタ、コモンモードラインフィルタなどの幅広いDIPおよびSMDインダクタを供給しています。
ABC supply wide range DIP & SMD inductor such as chip inductor, non-shielded power inductor, shielded power inductor, semi-shielded power inductor, high current power inductor & common mode line filter.
お問い合わせからアフターフォローまで一貫して当社にお任せ下さい。
