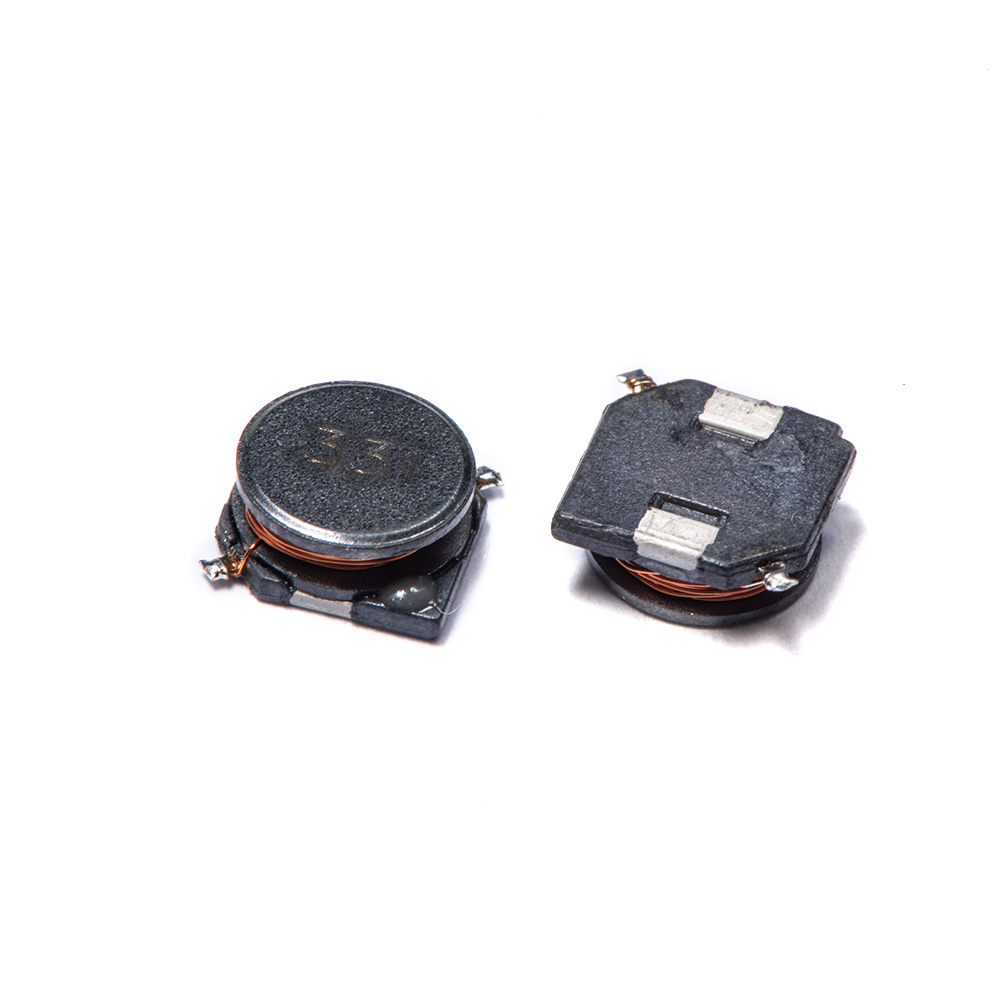

SMDパワーインダクタ〔SMD Power Inductor〕SB

高性能フェライトボディの銅線巻線と端子への直接接続により、指定されたインダクタンスが提供され、DC抵抗が低くなり、定格電流が高くなります。
SMDパワーインダクタ非シールドは、小規模および中規模の電力回路アプリケーションに使用できます。
インダクタの端子としてメタライズまたはリードフレームを使用し、SMTプロセスで利用可能な優れたはんだ付け能力とはんだ付け熱に対する耐性を備えています。
Copper wire winding on high performance ferrite body & direct connect to terminals offer specified inductance with lower DC resistance, higher current rating.
SMD power inductor Non-shielded is available for small & median power circuit application.
It use metalizes or lead frame as terminals of inductor with excellent solder ability & resistance to soldering heat ability available for SMT process.

製品仕様

Product Specifications

Part no.L*W*T [mm]Inductance [µH]RDC [Ω]Irms [A]Specification
SB70306R2ML7*7*36.20.0581.65Datasheet
SB7030681KL7*7*36804.350.18Datasheet
SB7030680KL7*7*3680.480.58Datasheet
SB70304R7ML7*7*34.70.0481.85Datasheet
SB7030471KL7*7*34702.80.22Datasheet
SB7030470KL7*7*3470.340.7Datasheet
SB70303R5ML7*7*33.50.0382.2Datasheet
SB7030331KL7*7*33302.20.26Datasheet
SB7030330ML7*7*3330.230.85Datasheet
SB70302R2ML7*7*32.20.032.6Datasheet
SB7030221KL7*7*32201.60.32Datasheet
SB7030220ML7*7*3220.161.02Datasheet
SB70301R5ML7*7*31.50.0272.75Datasheet
SB70301R0ML7*7*310.0223Datasheet
SB7030151KL7*7*31500.920.4Datasheet
SB7030150ML7*7*3150.1151.2Datasheet
SB7030102KL7*7*310006.20.15Datasheet
SB7030101KL7*7*31000.720.46Datasheet
SB7030100ML7*7*3100.0751.5Datasheet
SB70456R8ML7*7*4.56.80.0542.25Datasheet
SB7045681KL7*7*4.56802.40.3Datasheet
SB7045680KL7*7*4.5680.280.9Datasheet
SB70454R7ML7*7*4.54.70.0422.6Datasheet
SB7045471KL7*7*4.54701.850.34Datasheet
SB7045470KL7*7*4.5470.231Datasheet
SB70453R3ML7*7*4.53.30.0362.8Datasheet
SB7045331KL7*7*4.53301.240.42Datasheet
SB7045330ML7*7*4.5330.151.22Datasheet
SB70452R2ML7*7*4.52.20.0323.3Datasheet
SB7045221KL7*7*4.52200.930.5Datasheet
SB7045220ML7*7*4.5220.1251.4Datasheet
SB70451R5ML7*7*4.51.50.0273.5Datasheet
SB70451R2ML7*7*4.51.20.0223.8Datasheet
SB7045151KL7*7*4.51500.580.62Datasheet
SB7045150ML7*7*4.5150.0861.6Datasheet
SB7045102KL7*7*4.5100040.22Datasheet
SB7045101KL7*7*4.51000.430.75Datasheet
SB7045100ML7*7*4.5100.072Datasheet
SB10056R8ML12.7*10*56.80.0343.4Datasheet
SB1005682KL12.7*10*56800300.11Datasheet
SB1005681KL12.7*10*56802.60.35Datasheet
SB1005680KL12.7*10*5680.241.2Datasheet
SB10054R7ML12.7*10*54.70.0194.5Datasheet
SB1005472KL12.7*10*54700170.15Datasheet
SB1005471KL12.7*10*54701.70.45Datasheet
SB1005470KL12.7*10*5470.191.4Datasheet
SB10053R3ML12.7*10*53.30.0155Datasheet
SB1005332KL12.7*10*53300140.16Datasheet
SB1005331KL12.7*10*53301.150.55Datasheet
SB1005330KL12.7*10*5330.121.8Datasheet
SB10052R5ML12.7*10*52.50.0125.5Datasheet
SB1005222KL12.7*10*522008.20.2Datasheet
SB1005221KL12.7*10*52200.780.7Datasheet
SB1005220ML12.7*10*5220.0952Datasheet
SB10051R5ML12.7*10*51.50.0096.5Datasheet
SB10051R0ML12.7*10*510.0077.5Datasheet
SB1005152KL12.7*10*515006.30.25Datasheet
SB1005151KL12.7*10*51500.590.8Datasheet
SB1005150ML12.7*10*5150.062.5Datasheet
SB1005103KL12.7*10*510000390.1Datasheet
SB1005102KL12.7*10*510003.90.3Datasheet
SB1005101KL12.7*10*51000.331Datasheet
SB1005100ML12.7*10*5100.0452.9Datasheet
SB16086R8M26.6*4.45*2.926.80.131.4Datasheet
SB1608681M26.6*4.45*2.926809.20.12Datasheet
SB1608680M26.6*4.45*2.92680.860.4Datasheet
SB16084R7M26.6*4.45*2.924.70.091.5Datasheet
SB1608471M26.6*4.45*2.924705.060.15Datasheet
SB1608470M26.6*4.45*2.92470.640.5Datasheet
SB16083R3M26.6*4.45*2.923.30.082Datasheet
SB1608331M26.6*4.45*2.923303.80.16Datasheet
SB1608330M26.6*4.45*2.92330.510.6Datasheet
SB16082R2M26.6*4.45*2.922.20.072.4Datasheet
SB1608221M26.6*4.45*2.922203.110.2Datasheet
SB1608220M26.6*4.45*2.92220.370.8Datasheet
SB16081R5M26.6*4.45*2.921.50.052.8Datasheet
SB16081R0M26.6*4.45*2.9210.052.9Datasheet
SB1608151M26.6*4.45*2.9215020.25Datasheet
SB1608150M26.6*4.45*2.92150.231Datasheet
SB1608102M26.6*4.45*2.92100013.80.07Datasheet
SB1608101M26.6*4.45*2.921001.270.3Datasheet
SB1608100M26.6*4.45*2.92100.161.1Datasheet
SB08056R8MF10.5*8*56.80.043.4Datasheet
SB0805680YF10.5*8*5680.271.2Datasheet
SB08054R7MF10.5*8*54.70.0284.2Datasheet
SB0805470YF10.5*8*5470.21.4Datasheet
SB08053R3MF10.5*8*53.30.0225Datasheet
SB0805331YF10.5*8*53301.50.46Datasheet
SB0805330MF10.5*8*5330.1451.72Datasheet
SB0805221YF10.5*8*52200.860.62Datasheet
SB0805220MF10.5*8*5220.12Datasheet
SB0805151YF10.5*8*51500.560.75Datasheet
SB0805150MF10.5*8*5150.072.4Datasheet
SB0805101YF10.5*8*51000.41Datasheet
SB0805100MF10.5*8*5100.053Datasheet
SB1806681KL18.2*14*6.66801.20.7Datasheet
SB1806680ML18.2*14*6.6680.132.1Datasheet
SB18065R6ML18.2*14*6.65.60.0156.4Datasheet
SB1806471KL18.2*14*6.64700.820.8Datasheet
SB1806470ML18.2*14*6.6470.0952.5Datasheet
SB18063R3ML18.2*14*6.63.30.00987.6Datasheet
SB1806331KL18.2*14*6.63300.581Datasheet
SB1806330ML18.2*14*6.6330.0683Datasheet
SB18062R2ML18.2*14*6.62.20.00689Datasheet
SB1806221KL18.2*14*6.62200.421.1Datasheet
SB1806220ML18.2*14*6.6220.0453.6Datasheet
SB18061R0ML18.2*14*6.610.00410Datasheet
SB1806151KL18.2*14*6.61500.271.4Datasheet
SB1806150ML18.2*14*6.6150.0354.3Datasheet
SB1806102KL18.2*14*6.610001.80.5Datasheet
SB1806101KL18.2*14*6.61000.191.7Datasheet
SB1806100ML18.2*14*6.6100.0255.3Datasheet
SB2207R80ML22*15*70.80.002316Datasheet
SB22078R2ML22*15*78.20.01557Datasheet
SB2207820KL22*15*7820.1442.2Datasheet
SB22076R8ML22*15*76.80.01427.5Datasheet
SB2207680KL22*15*7680.1122.4Datasheet
SB22075R6ML22*15*75.60.01247.8Datasheet
SB2207560KL22*15*7560.09652.6Datasheet
SB22074R7ML22*15*74.70.00888.5Datasheet
SB2207470KL22*15*7470.09122.8Datasheet
SB22073R3ML22*15*73.30.00789Datasheet
SB2207390KL22*15*7390.0653.2Datasheet
SB2207330YL22*15*7330.05843.4Datasheet
SB22072R7ML22*15*72.70.00710Datasheet
SB2207270YL22*15*7270.04353.8Datasheet
SB2207220YL22*15*7220.03944Datasheet
SB22071R8ML22*15*71.80.004513Datasheet
SB22071R2ML22*15*71.20.003215Datasheet
SB2207180YL22*15*7180.0334.6Datasheet
SB2207150YL22*15*7150.02885Datasheet
SB2207120YL22*15*7120.02365.5Datasheet
SB2207101KL22*15*71000.1682Datasheet
SB2207100ML22*15*7100.01726.5Datasheet

備考

Remarks

ABC台湾エレクトロニクス社は、チップインダクタ、非シールドパワーインダクタ、シールドパワーインダクタ、セミシールドパワーインダクタ、大電流パワーインダクタ、コモンモードラインフィルタなどの幅広いDIPおよびSMDインダクタを供給しています。
ABC supply wide range DIP & SMD inductor such as chip inductor, non-shielded power inductor, shielded power inductor, semi-shielded power inductor, high current power inductor & common mode line filter.
