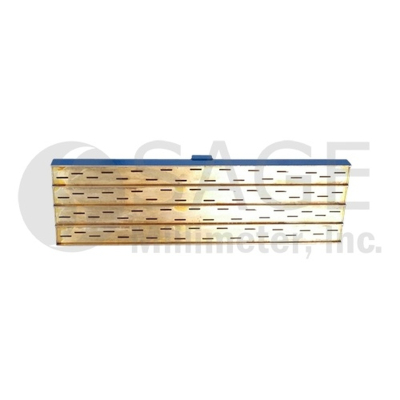

Slotted Waveguide Array Antennas

メーカー名:Eravant

製品仕様

Product Specifications

ModelData sheetMinimum Frequency [GHz]Maximum Frequency [GHz]Gain [dBi]3 dB Beamwidth, Vertical3 dB Beamwidth, HorizontalSide Lobe Level [dB]Return Loss [dB]PolarizationAntenna Port

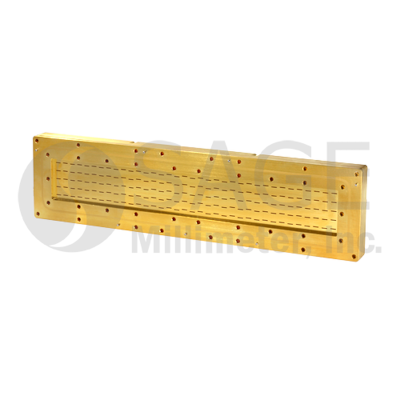

SAW-3533532716-28-L2-WRDatasheet34.7535.252716°-1513Linear, VerticalWR-28 Waveguide
SAW-3533532515-28-LX1Datasheet34.8535.152515°4.6°-1513Linear, VerticalWR-28 Waveguide

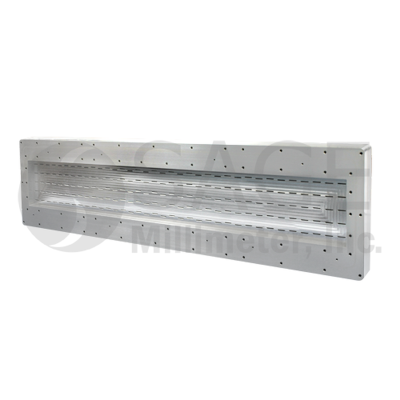

SAW-9629822716-90-L2-WRDatasheet9.69.82716°-1513Linear, VerticalWR-90 Waveguide

備考

Remarks

お問い合わせからアフターフォローまで一貫して当社にお任せ下さい。
