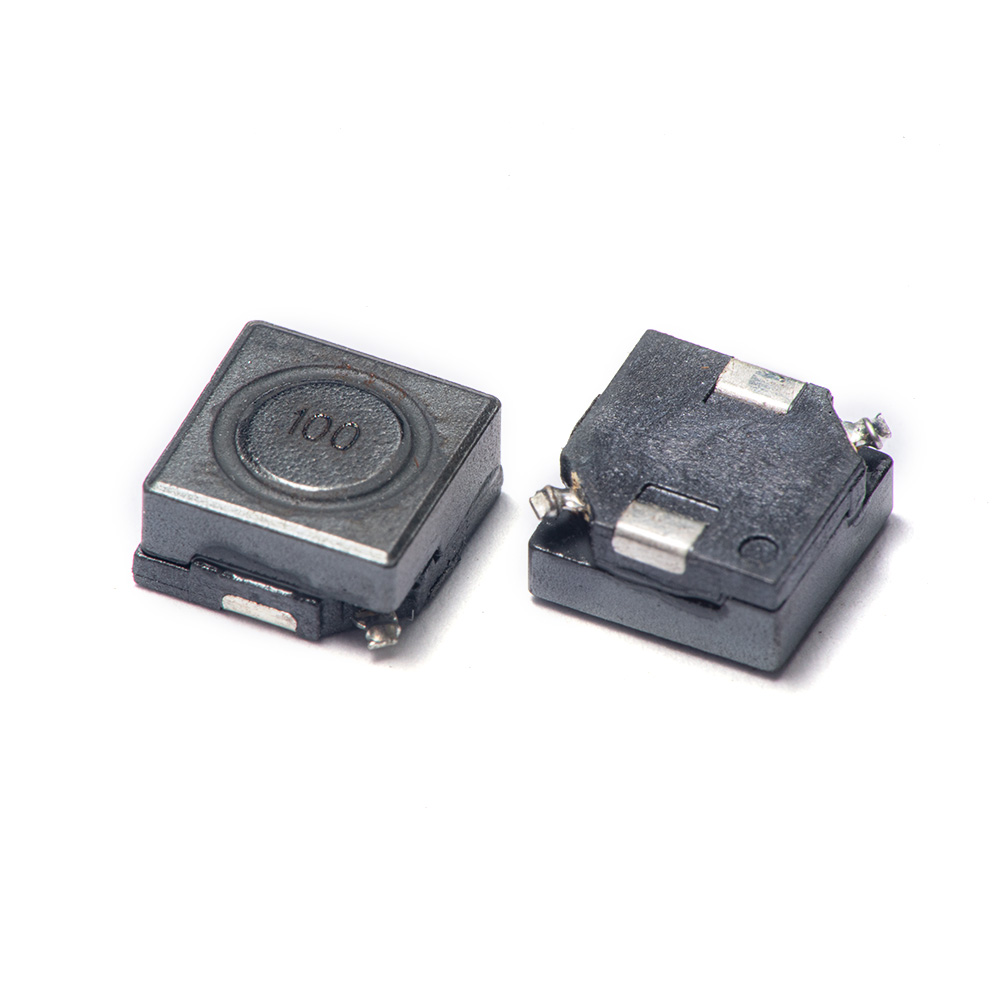

シールド付きSMDパワーインダクタ〔Shielded SMD Power Inductor〕SS

SMDシールドパワーインダクタは、外側のフェライトリングを使用して磁束を収集します。
インダクタの外側を通る磁路を減らして、他のコンポーネントや回路に影響を与えることができます。
高密度PCBアセンブリに適しています。
SMD shielded power inductor use outside ferrite ring to collect magnetic flux.
It can reduce magnetic path through go outside of inductor to influence other component or circuit.
It is good for high density PCB assembly.

製品仕様

Product Specifications

Part no.L*W*T [mm]Inductance [µH]RDC [Ω]Specification
SS0603102KL6.5*6.5*3.1100014Datasheet
SS0603681KL6.5*6.5*3.168010.5Datasheet
SS0603471KL6.5*6.5*3.14706.7Datasheet
SS0603331KL6.5*6.5*3.13304.2Datasheet
SS0603221KL6.5*6.5*3.12202.7Datasheet
SS0603151KL6.5*6.5*3.11501.9Datasheet
SS0603101KL6.5*6.5*3.11001.5Datasheet
SS0603680KL6.5*6.5*3.1680.9Datasheet
SS0603470KL6.5*6.5*3.1470.55Datasheet
SS0603330KL6.5*6.5*3.1330.43Datasheet
SS0603220ML6.5*6.5*3.1220.27Datasheet
SS0603150ML6.5*6.5*3.1150.18Datasheet
SS0603100ML6.5*6.5*3.1100.12Datasheet
SS06036R8ML6.5*6.5*3.16.80.1Datasheet
SS06034R7ML6.5*6.5*3.14.70.07Datasheet
SS06033R3ML6.5*6.5*3.13.30.055Datasheet
SS06032R5ML6.5*6.5*3.12.50.04Datasheet
SS06031R5ML6.5*6.5*3.11.50.032Datasheet
SS0604102KL6.5*6.5*4.610006.1Datasheet
SS0604681KL6.5*6.5*4.66804.8Datasheet
SS0604471KL6.5*6.5*4.64703.3Datasheet
SS0604331KL6.5*6.5*4.63302.1Datasheet
SS0604221KL6.5*6.5*4.62201.7Datasheet
SS0604151KL6.5*6.5*4.61501Datasheet
SS0604101KL6.5*6.5*4.61000.65Datasheet
SS0604680KL6.5*6.5*4.6680.52Datasheet
SS0604470KL6.5*6.5*4.6470.36Datasheet
SS0604330KL6.5*6.5*4.6330.25Datasheet
SS0604220ML6.5*6.5*4.6220.19Datasheet
SS0604150ML6.5*6.5*4.6150.13Datasheet
SS0604100ML6.5*6.5*4.6100.12Datasheet
SS06046R8ML6.5*6.5*4.66.80.07Datasheet
SS06044R7ML6.5*6.5*4.64.70.06Datasheet
SS06043R3ML6.5*6.5*4.63.30.05Datasheet
SS06042R5ML6.5*6.5*4.62.50.035Datasheet
SS06041R5ML6.5*6.5*4.61.50.028Datasheet
SS0805102KF8*10.5*4.510005Datasheet
SS0805821KF8*10.5*4.58204Datasheet
SS0805681KF8*10.5*4.56803.4Datasheet
SS0805561KF8*10.5*4.55603Datasheet
SS0805471KF8*10.5*4.54702.25Datasheet
SS0805331KF8*10.5*4.53301.8Datasheet
SS0805271KF8*10.5*4.52701.4Datasheet
SS0805221KF8*10.5*4.52201.18Datasheet
SS0805181KF8*10.5*4.51801.05Datasheet
SS0805151KF8*10.5*4.51500.9Datasheet
SS0805121KF8*10.5*4.51200.75Datasheet
SS0805101KF8*10.5*4.51000.6Datasheet
SS0805820KF8*10.5*4.5820.55Datasheet
SS0805680KF8*10.5*4.5680.44Datasheet
SS0805560KF8*10.5*4.5560.38Datasheet
SS0805470YF8*10.5*4.5470.28Datasheet
SS0805390YF8*10.5*4.5390.26Datasheet
SS0805330YF8*10.5*4.5330.24Datasheet
SS0805270YF8*10.5*4.5270.2Datasheet
SS0805220YF8*10.5*4.5220.18Datasheet
SS0805180YF8*10.5*4.5180.16Datasheet
SS0805150MF8*10.5*4.5150.14Datasheet
SS0805120MF8*10.5*4.5120.12Datasheet
SS0805100MF8*10.5*4.5100.1Datasheet
SS08058R2MF8*10.5*4.58.20.08Datasheet
SS08055R6MF8*10.5*4.55.60.065Datasheet
SS08053R9MF8*10.5*4.53.90.055Datasheet
SS08052R2MF8*10.5*4.52.20.04Datasheet
SS1003471YL10.1*12.7*2.74705.1Datasheet
SS1003391YL10.1*12.7*2.73904.6Datasheet
SS1003331YL10.1*12.7*2.73303.6Datasheet
SS1003271YL10.1*12.7*2.72703.1Datasheet
SS1003221ML10.1*12.7*2.72202.2Datasheet
SS1003181ML10.1*12.7*2.71802.2Datasheet
SS1003151ML10.1*12.7*2.71501.8Datasheet
SS1003121ML10.1*12.7*2.71201.52Datasheet
SS1003101ML10.1*12.7*2.71001.4Datasheet
SS1003820ML10.1*12.7*2.7821.2Datasheet
SS1003680ML10.1*12.7*2.7680.8Datasheet
SS1003560ML10.1*12.7*2.7560.68Datasheet
SS1003470ML10.1*12.7*2.7470.65Datasheet
SS1003390ML10.1*12.7*2.7390.56Datasheet
SS1003330ML10.1*12.7*2.7330.45Datasheet
SS1003270ML10.1*12.7*2.7270.4Datasheet
SS1003220ML10.1*12.7*2.7220.3Datasheet
SS1003180ML10.1*12.7*2.7180.27Datasheet
SS1003150ML10.1*12.7*2.7150.2Datasheet
SS1003120ML10.1*12.7*2.7120.185Datasheet
SS1003100ML10.1*12.7*2.7100.145Datasheet
SS10037R5ML10.1*12.7*2.77.50.1Datasheet
SS10034R7ML10.1*12.7*2.74.70.078Datasheet
SS10033R9ML10.1*12.7*2.73.90.07Datasheet
SS10033R0ML10.1*12.7*2.730.062Datasheet
SS10032R2ML10.1*12.7*2.72.20.045Datasheet
SS10031R8ML10.1*12.7*2.71.80.038Datasheet
SS1005332KL10.1*12.7*4.9330010Datasheet
SS1005272KL10.1*12.7*4.927008.6Datasheet
SS1005222KL10.1*12.7*4.922006.5Datasheet
SS1005182KL10.1*12.7*4.918005.7Datasheet
SS1005152KL10.1*12.7*4.915005.2Datasheet
SS1005122KL10.1*12.7*4.912003.6Datasheet
SS1005102KL10.1*12.7*4.910003.2Datasheet
SS1005821KL10.1*12.7*4.98202.6Datasheet
SS1005681KL10.1*12.7*4.96802.3Datasheet
SS1005561KL10.1*12.7*4.95601.8Datasheet
SS1005471KL10.1*12.7*4.94701.6Datasheet
SS1005391KL10.1*12.7*4.93901.4Datasheet
SS1005331KL10.1*12.7*4.93301.2Datasheet
SS1005271KL10.1*12.7*4.92701.1Datasheet
SS1005221KL10.1*12.7*4.92200.8Datasheet
SS1005181KL10.1*12.7*4.91800.7Datasheet
SS1005151KL10.1*12.7*4.91500.52Datasheet
SS1005121KL10.1*12.7*4.91200.46Datasheet
SS1005101KL10.1*12.7*4.91000.42Datasheet
SS1005820YL10.1*12.7*4.9820.38Datasheet
SS1005680YL10.1*12.7*4.9680.34Datasheet
SS1005560YL10.1*12.7*4.9560.21Datasheet
SS1005470YL10.1*12.7*4.9470.19Datasheet
SS1005390YL10.1*12.7*4.9390.18Datasheet
SS1005330YL10.1*12.7*4.9330.16Datasheet
SS1005270YL10.1*12.7*4.9270.12Datasheet
SS1005220YL10.1*12.7*4.9220.1Datasheet
SS1005180YL10.1*12.7*4.9180.09Datasheet
SS1005150ML10.1*12.7*4.9150.085Datasheet
SS1005120ML10.1*12.7*4.9120.08Datasheet
SS1005100ML10.1*12.7*4.9100.065Datasheet
SS10057R0ML10.1*12.7*4.970.055Datasheet
SS10054R7ML10.1*12.7*4.94.70.04Datasheet
SS10053R0ML10.1*12.7*4.930.03Datasheet
SS10052R2ML10.1*12.7*4.92.20.027Datasheet
SS10051R5ML10.1*12.7*4.91.50.02Datasheet
SS10051R0ML10.1*12.7*4.910.017Datasheet
SS1205821KP12.7*12.7*58203Datasheet
SS1205681KP12.7*12.7*56802.4Datasheet
SS1205561KP12.7*12.7*55602.2Datasheet
SS1205471KP12.7*12.7*54701.98Datasheet
SS1205391KP12.7*12.7*53901.5Datasheet
SS1205331KP12.7*12.7*53301.34Datasheet
SS1205271KP12.7*12.7*52701Datasheet
SS1205221KP12.7*12.7*52200.84Datasheet
SS1205181KP12.7*12.7*51800.75Datasheet
SS1205151KP12.7*12.7*51500.58Datasheet
SS1205121KP12.7*12.7*51200.5Datasheet
SS1205101KP12.7*12.7*51000.4Datasheet
SS1205750YP12.7*12.7*5750.33Datasheet
SS1205680YP12.7*12.7*5680.28Datasheet
SS1205560YP12.7*12.7*5560.24Datasheet
SS1205500YP12.7*12.7*5500.2Datasheet
SS1205390MP12.7*12.7*5390.16Datasheet
SS1205330MP12.7*12.7*5330.145Datasheet
SS1205250MP12.7*12.7*5250.12Datasheet
SS1205220MP12.7*12.7*5220.095Datasheet
SS1205180MP12.7*12.7*5180.082Datasheet
SS1205150MP12.7*12.7*5150.07Datasheet
SS1205120MP12.7*12.7*5120.065Datasheet
SS1205100MP12.7*12.7*5100.054Datasheet
SS12057R5MP12.7*12.7*57.50.04Datasheet
SS12055R0MP12.7*12.7*550.035Datasheet
SS12052R5MP12.7*12.7*52.50.024Datasheet
SS1206152KP12.7*12.7*615003.5Datasheet
SS1206122KP12.7*12.7*612002.65Datasheet
SS1206102KP12.7*12.7*610002.3Datasheet
SS1206821KP12.7*12.7*68201.7Datasheet
SS1206681KP12.7*12.7*66801.5Datasheet
SS1206561KP12.7*12.7*65601.32Datasheet
SS1206471KP12.7*12.7*64700.97Datasheet
SS1206391KP12.7*12.7*63900.87Datasheet
SS1206331KP12.7*12.7*63300.66Datasheet
SS1206271KP12.7*12.7*62700.52Datasheet
SS1206221KP12.7*12.7*62200.46Datasheet
SS1206181KP12.7*12.7*61800.38Datasheet
SS1206151KP12.7*12.7*61500.32Datasheet
SS1206121YP12.7*12.7*61200.26Datasheet
SS1206101YP12.7*12.7*61000.22Datasheet
SS1206820YP12.7*12.7*6820.185Datasheet
SS1206680YP12.7*12.7*6680.17Datasheet
SS1206560YP12.7*12.7*6560.155Datasheet
SS1206470YP12.7*12.7*6470.13Datasheet
SS1206390YP12.7*12.7*6390.1Datasheet
SS1206330YP12.7*12.7*6330.09Datasheet
SS1206270MP12.7*12.7*6270.068Datasheet
SS1206220MP12.7*12.7*6220.062Datasheet
SS1206180MP12.7*12.7*6180.05Datasheet
SS1206150MP12.7*12.7*6150.042Datasheet
SS1206120MP12.7*12.7*6120.038Datasheet
SS1206100MP12.7*12.7*6100.035Datasheet
SS12067R5MP12.7*12.7*67.50.025Datasheet
SS12065R0MP12.7*12.7*650.022Datasheet
SS12062R5MP12.7*12.7*62.50.016Datasheet
SS1208152KP12.7*12.7*815002.35Datasheet
SS1208122KP12.7*12.7*812002Datasheet
SS1208102KP12.7*12.7*810001.65Datasheet
SS1208821KP12.7*12.7*88201.15Datasheet
SS1208681KP12.7*12.7*86801Datasheet
SS1208561KP12.7*12.7*85600.9Datasheet
SS1208471KP12.7*12.7*84700.85Datasheet
SS1208391KP12.7*12.7*83900.67Datasheet
SS1208331KP12.7*12.7*83300.65Datasheet
SS1208271KP12.7*12.7*82700.4Datasheet
SS1208221KP12.7*12.7*82200.38Datasheet
SS1208181YP12.7*12.7*81800.27Datasheet
SS1208151YP12.7*12.7*81500.24Datasheet
SS1208121YP12.7*12.7*81200.19Datasheet
SS1208101YP12.7*12.7*81000.17Datasheet
SS1208820YP12.7*12.7*8820.15Datasheet
SS1208680YP12.7*12.7*8680.135Datasheet
SS1208560YP12.7*12.7*8560.11Datasheet
SS1208470YP12.7*12.7*8470.085Datasheet
SS1208390YP12.7*12.7*8390.076Datasheet
SS1208330YP12.7*12.7*8330.062Datasheet
SS1208270MP12.7*12.7*8270.048Datasheet
SS1208220MP12.7*12.7*8220.043Datasheet
SS1208180MP12.7*12.7*8180.04Datasheet
SS1208150MP12.7*12.7*8150.036Datasheet
SS1208120MP12.7*12.7*8120.025Datasheet
SS1208100MP12.7*12.7*8100.021Datasheet
SS12086R5MP12.7*12.7*86.50.018Datasheet
SS12084R5MP12.7*12.7*84.50.014Datasheet
SS12082R5MP12.7*12.7*82.50.0114Datasheet
SS1210102MF12*12*1010001.65Datasheet
SS1210821MF12*12*108201.32Datasheet
SS1210681MF12*12*106801.2Datasheet
SS1210561MF12*12*105600.9Datasheet
SS1210471MF12*12*104700.82Datasheet
SS1210391MF12*12*103900.6Datasheet
SS1210331MF12*12*103300.45Datasheet
SS1210271MF12*12*102700.41Datasheet
SS1210221MF12*12*102200.315Datasheet
SS1210181MF12*12*101800.25Datasheet
SS1210151MF12*12*101500.19Datasheet
SS1210121MF12*12*101200.17Datasheet
SS1210101MF12*12*101000.135Datasheet
SS1210820MF12*12*10820.112Datasheet
SS1210680MF12*12*10680.102Datasheet
SS1210560MF12*12*10560.09Datasheet
SS1210470MF12*12*10470.072Datasheet
SS1210390MF12*12*10390.066Datasheet
SS1210330MF12*12*10330.052Datasheet
SS1210270MF12*12*10270.04Datasheet
SS1210220MF12*12*10220.038Datasheet
SS1210180MF12*12*10180.035Datasheet
SS1210150MF12*12*10150.032Datasheet
SS1210120MF12*12*10120.022Datasheet
SS1210100MF12*12*10100.018Datasheet
SS12108R2YF12*12*108.20.017Datasheet
SS12106R8YF12*12*106.80.015Datasheet
SS12105R6YF12*12*105.60.0135Datasheet
SS12104R7YF12*12*104.70.012Datasheet
SS12103R3YF12*12*103.30.01Datasheet
SS12102R2YF12*12*102.20.009Datasheet
SS12101R8YF12*12*101.80.075Datasheet
SS12101R0YF12*12*1010.006Datasheet
SS1240102KL12.5*12.5*410003Datasheet
SS1240821KL12.5*12.5*48202.4Datasheet
SS1240681KL12.5*12.5*46802Datasheet
SS1240561KL12.5*12.5*45601.5Datasheet
SS1240471KL12.5*12.5*44701.35Datasheet
SS1240391KL12.5*12.5*43901.15Datasheet
SS1240331KL12.5*12.5*43300.95Datasheet
SS1240271KL12.5*12.5*42700.78Datasheet
SS1240221KL12.5*12.5*42200.6Datasheet
SS1240181KL12.5*12.5*41800.55Datasheet
SS1240151KL12.5*12.5*41500.44Datasheet
SS1240121KL12.5*12.5*41200.37Datasheet
SS1240101ML12.5*12.5*41000.3Datasheet
SS1240820ML12.5*12.5*4820.25Datasheet
SS1240680ML12.5*12.5*4680.2Datasheet
SS1240560ML12.5*12.5*4560.17Datasheet
SS1240470ML12.5*12.5*4470.135Datasheet
SS1240390ML12.5*12.5*4390.12Datasheet
SS1240330ML12.5*12.5*4330.097Datasheet
SS1240270ML12.5*12.5*4270.085Datasheet
SS1240220ML12.5*12.5*4220.0675Datasheet
SS1240180ML12.5*12.5*4180.055Datasheet
SS1240150ML12.5*12.5*4150.047Datasheet
SS1240120ML12.5*12.5*4120.038Datasheet
SS1240100ML12.5*12.5*4100.032Datasheet
SS12408R2ML12.5*12.5*48.20.027Datasheet
SS12406R8ML12.5*12.5*46.80.023Datasheet
SS12405R6ML12.5*12.5*45.60.02Datasheet
SS12404R7ML12.5*12.5*44.70.018Datasheet
SS12403R3YL12.5*12.5*43.30.015Datasheet
SS12402R4YL12.5*12.5*42.40.0115Datasheet
SS12401R5YL12.5*12.5*41.50.0095Datasheet
SS12401R0YL12.5*12.5*410.007Datasheet
SS1258102KF12*12*610001.85Datasheet
SS1258821KF12*12*68201.6Datasheet
SS1258681KF12*12*66801.2Datasheet
SS1258561KF12*12*65601Datasheet
SS1258471KF12*12*64700.9Datasheet
SS1258391KF12*12*63900.7Datasheet
SS1258331KF12*12*63300.63Datasheet
SS1258271KF12*12*62700.48Datasheet
SS1258221KF12*12*62200.42Datasheet
SS1258181KF12*12*61800.32Datasheet
SS1258151KF12*12*61500.28Datasheet
SS1258121KF12*12*61200.25Datasheet
SS1258101MF12*12*61000.19Datasheet
SS1258820MF12*12*6820.16Datasheet
SS1258680MF12*12*6680.13Datasheet
SS1258560MF12*12*6560.12Datasheet
SS1258470MF12*12*6470.1Datasheet
SS1258390MF12*12*6390.08Datasheet
SS1258330MF12*12*6330.075Datasheet
SS1258270MF12*12*6270.065Datasheet
SS1258220MF12*12*6220.052Datasheet
SS1258180MF12*12*6180.045Datasheet
SS1258150MF12*12*6150.04Datasheet
SS1258120MF12*12*6120.032Datasheet
SS1258100MF12*12*6100.028Datasheet
SS12588R2YF12*12*68.20.025Datasheet
SS12586R8YF12*12*66.80.023Datasheet
SS12585R6YF12*12*65.60.022Datasheet
SS12584R7YF12*12*64.70.02Datasheet
SS12583R3YF12*12*63.30.016Datasheet
SS12582R2YF12*12*62.20.014Datasheet
SS12581R8YF12*12*61.80.013Datasheet
SS12581R0YF12*12*610.01Datasheet
SS1260102KF12.5*12.5*610001.7Datasheet
SS1260821KF12.5*12.5*68201.5Datasheet
SS1260681KF12.5*12.5*66801.15Datasheet
SS1260561KF12.5*12.5*65601Datasheet
SS1260471KF12.5*12.5*64700.82Datasheet
SS1260391KF12.5*12.5*63900.7Datasheet
SS1260331KF12.5*12.5*63300.58Datasheet
SS1260271KF12.5*12.5*62700.45Datasheet
SS1260221KF12.5*12.5*62200.38Datasheet
SS1260181KF12.5*12.5*61800.32Datasheet
SS1260151KF12.5*12.5*61500.26Datasheet
SS1260121KF12.5*12.5*61200.21Datasheet
SS1260101MF12.5*12.5*61000.18Datasheet
SS1260820MF12.5*12.5*6820.145Datasheet
SS1260680MF12.5*12.5*6680.11Datasheet
SS1260560MF12.5*12.5*6560.1Datasheet
SS1260470MF12.5*12.5*6470.086Datasheet
SS1260390MF12.5*12.5*6390.07Datasheet
SS1260330MF12.5*12.5*6330.06Datasheet
SS1260270MF12.5*12.5*6270.045Datasheet
SS1260220MF12.5*12.5*6220.043Datasheet
SS1260180MF12.5*12.5*6180.036Datasheet
SS1260150MF12.5*12.5*6150.027Datasheet
SS1260120MF12.5*12.5*6120.023Datasheet
SS1260100MF12.5*12.5*6100.02Datasheet
SS12608R2YF12.5*12.5*68.20.0195Datasheet
SS12607R6YF12.5*12.5*67.60.019Datasheet
SS12606R8YF12.5*12.5*66.80.018Datasheet
SS12606R1YF12.5*12.5*66.10.017Datasheet
SS12605R6YF12.5*12.5*65.60.0162Datasheet
SS12604R7YF12.5*12.5*64.70.0155Datasheet
SS12603R5YF12.5*12.5*63.50.013Datasheet
SS12603R3YF12.5*12.5*63.30.012Datasheet
SS12602R4YF12.5*12.5*62.40.0115Datasheet
SS12602R2YF12.5*12.5*62.20.0105Datasheet
SS12601R5YF12.5*12.5*61.50.0095Datasheet
SS12601R2YF12.5*12.5*61.20.008Datasheet
SS12601R0YF12.5*12.5*610.0078Datasheet
SS1278102KF12*12*810001.7Datasheet
SS1278821KF12*12*88201.5Datasheet
SS1278681KF12*12*86801.3Datasheet
SS1278561KF12*12*85600.96Datasheet
SS1278471KF12*12*84700.88Datasheet
SS1278391KF12*12*83900.68Datasheet
SS1278331KF12*12*83300.6Datasheet
SS1278271KF12*12*82700.53Datasheet
SS1278221KF12*12*82200.4Datasheet
SS1278181KF12*12*81800.3Datasheet
SS1278151KF12*12*81500.27Datasheet
SS1278121KF12*12*81200.23Datasheet
SS1278101MF12*12*81000.18Datasheet
SS1278820MF12*12*8820.15Datasheet
SS1278680MF12*12*8680.12Datasheet
SS1278560MF12*12*8560.11Datasheet
SS1278470MF12*12*8470.1Datasheet
SS1278390MF12*12*8390.085Datasheet
SS1278330MF12*12*8330.08Datasheet
SS1278270MF12*12*8270.06Datasheet
SS1278220MF12*12*8220.05Datasheet
SS1278180MF12*12*8180.043Datasheet
SS1278150MF12*12*8150.038Datasheet
SS1278120MF12*12*8120.032Datasheet
SS1278100MF12*12*8100.03Datasheet
SS12788R2MF12*12*88.20.028Datasheet
SS12786R0MF12*12*860.024Datasheet
SS12784R7MF12*12*84.70.02Datasheet
SS12781R4MF12*12*81.40.011Datasheet
SS1280102KF12.5*12.5*7.510001.7Datasheet
SS1280821KF12.5*12.5*7.58201.5Datasheet
SS1280681KF12.5*12.5*7.56801.3Datasheet
SS1280561KF12.5*12.5*7.55600.96Datasheet
SS1280471KF12.5*12.5*7.54700.88Datasheet
SS1280391KF12.5*12.5*7.53900.68Datasheet
SS1280331KF12.5*12.5*7.53300.6Datasheet
SS1280271KF12.5*12.5*7.52700.45Datasheet
SS1280221KF12.5*12.5*7.52200.4Datasheet
SS1280181KF12.5*12.5*7.51800.3Datasheet
SS1280151KF12.5*12.5*7.51500.27Datasheet
SS1280121KF12.5*12.5*7.51200.2Datasheet
SS1280101MF12.5*12.5*7.51000.15Datasheet
SS1280820MF12.5*12.5*7.5820.13Datasheet
SS1280680MF12.5*12.5*7.5680.12Datasheet
SS1280560MF12.5*12.5*7.5560.1Datasheet
SS1280470MF12.5*12.5*7.5470.08Datasheet
SS1280390MF12.5*12.5*7.5390.07Datasheet
SS1280330MF12.5*12.5*7.5330.057Datasheet
SS1280270MF12.5*12.5*7.5270.052Datasheet
SS1280220MF12.5*12.5*7.5220.0386Datasheet
SS1280180MF12.5*12.5*7.5180.035Datasheet
SS1280150MF12.5*12.5*7.5150.0285Datasheet
SS1280120MF12.5*12.5*7.5120.028Datasheet
SS1280100MF12.5*12.5*7.5100.0195Datasheet
SS12808R2YF12.5*12.5*7.58.20.0205Datasheet
SS12807R5YF12.5*12.5*7.57.50.0175Datasheet
SS12806R8YF12.5*12.5*7.56.80.0185Datasheet
SS12805R6YF12.5*12.5*7.55.60.016Datasheet
SS12804R7YF12.5*12.5*7.54.70.0155Datasheet
SS12804R5YF12.5*12.5*7.54.50.0135Datasheet
SS12803R3YF12.5*12.5*7.53.30.012Datasheet
SS12802R4YF12.5*12.5*7.52.40.01Datasheet
SS12801R4YF12.5*12.5*7.51.40.0098Datasheet
SS12801R1YF12.5*12.5*7.51.10.0065Datasheet
SS1608103ML6.5*4.4*2.91000032.8Datasheet
SS1608682ML6.5*4.4*2.9680025Datasheet
SS1608472ML6.5*4.4*2.9470013.9Datasheet
SS1608332ML6.5*4.4*2.9330011Datasheet
SS1608222ML6.5*4.4*2.922008.5Datasheet
SS1608152ML6.5*4.4*2.915004.2Datasheet
SS1608102ML6.5*4.4*2.910003.4Datasheet
SS1608681ML6.5*4.4*2.96802.2Datasheet
SS1608561ML6.5*4.4*2.95612Datasheet
SS1608471ML6.5*4.4*2.94701.8Datasheet
SS1608331ML6.5*4.4*2.93301.4Datasheet
SS1608221ML6.5*4.4*2.92200.77Datasheet
SS1608151ML6.5*4.4*2.91500.59Datasheet
SS1608101ML6.5*4.4*2.91000.48Datasheet
SS1608680ML6.5*4.4*2.9680.29Datasheet
SS1608470ML6.5*4.4*2.9470.23Datasheet
SS1608330ML6.5*4.4*2.9330.19Datasheet
SS1608220ML6.5*4.4*2.9220.11Datasheet
SS1608150ML6.5*4.4*2.9150.09Datasheet
SS1608100ML6.5*4.4*2.9100.075Datasheet
SS16086R8ML6.5*4.4*2.96.80.065Datasheet
SS16084R7ML6.5*4.4*2.94.70.06Datasheet
SS16083R3ML6.5*4.4*2.93.30.055Datasheet
SS16082R2ML6.5*4.4*2.92.20.05Datasheet
SS16081R5ML6.5*4.4*2.91.50.045Datasheet
SS16081R0ML6.5*4.4*2.910.04Datasheet
SS1806102ML14*18.2*6.810002.45Datasheet
SS1806681ML14*18.2*6.86801.7Datasheet
SS1806471ML14*18.2*6.84701.15Datasheet
SS1806331ML14*18.2*6.83300.92Datasheet
SS1806221ML14*18.2*6.82200.6Datasheet
SS1806151ML14*18.2*6.81500.5Datasheet
SS1806101ML14*18.2*6.81000.32Datasheet
SS1806680ML14*18.2*6.8680.2Datasheet
SS1806470ML14*18.2*6.8470.13Datasheet
SS1806330ML14*18.2*6.8330.1Datasheet
SS1806220ML14*18.2*6.8220.07Datasheet
SS1806150ML14*18.2*6.8150.052Datasheet
SS1806100ML14*18.2*6.8100.04Datasheet
SS6028102ML6*6*2.810008.2Datasheet
SS6028681ML6*6*2.86805.4Datasheet
SS6028471ML6*6*2.84703.6Datasheet
SS6028331ML6*6*2.83302.45Datasheet
SS6028221ML6*6*2.82201.7Datasheet
SS6028151ML6*6*2.81501.2Datasheet
SS6028101ML6*6*2.81000.84Datasheet
SS6028680ML6*6*2.8680.6Datasheet
SS6028470ML6*6*2.8470.38Datasheet
SS6028330ML6*6*2.8330.28Datasheet
SS6028220ML6*6*2.8220.22Datasheet
SS6028150ML6*6*2.8150.14Datasheet
SS6028100ML6*6*2.8100.105Datasheet
SS60286R8ML6*6*2.86.80.07Datasheet
SS60284R7ML6*6*2.84.70.05Datasheet
SS60283R3ML6*6*2.83.30.044Datasheet
SS60282R2ML6*6*2.82.20.032Datasheet
SS60281R5ML6*6*2.81.50.025Datasheet
SS60281R0ML6*6*2.810.022Datasheet
SS7032102ML7*7*3.210005.4Datasheet
SS7032681ML7*7*3.26803.75Datasheet
SS7032471ML7*7*3.24702.4Datasheet
SS7032331ML7*7*3.23301.9Datasheet
SS7032221ML7*7*3.22201.3Datasheet
SS7032151ML7*7*3.21500.8Datasheet
SS7032101ML7*7*3.21000.54Datasheet
SS7032680ML7*7*3.2680.38Datasheet
SS7032470ML7*7*3.2470.27Datasheet
SS7032330ML7*7*3.2330.2Datasheet
SS7032220ML7*7*3.2220.135Datasheet
SS7032150ML7*7*3.2150.095Datasheet
SS7032100ML7*7*3.2100.068Datasheet
SS70326R8ML7*7*3.26.80.054Datasheet
SS70324R7ML7*7*3.24.70.042Datasheet
SS70323R3ML7*7*3.23.30.027Datasheet
SS7045102MS7*7*4.510002.37Datasheet
SS7045821MS7*7*4.58201.85Datasheet
SS7045681MS7*7*4.56801.6Datasheet
SS7045561MS7*7*4.55601.34Datasheet
SS7045471MS7*7*4.54701.1Datasheet
SS7045391MS7*7*4.53901Datasheet
SS7045331MS7*7*4.53300.73Datasheet
SS7045271MS7*7*4.52700.6Datasheet
SS7045221MS7*7*4.52200.69Datasheet
SS7045181MS7*7*4.51800.6Datasheet
SS7045151MS7*7*4.51500.46Datasheet
SS7045121MS7*7*4.51200.38Datasheet
SS7045101MS7*7*4.51000.3Datasheet
SS7045820MS7*7*4.5820.27Datasheet
SS7045680MS7*7*4.5680.21Datasheet
SS7045560MS7*7*4.5560.18Datasheet
SS7045470MS7*7*4.5470.16Datasheet
SS7045390MS7*7*4.5390.13Datasheet
SS7045330MS7*7*4.5330.115Datasheet
SS7045270MS7*7*4.5270.1Datasheet
SS7045220MS7*7*4.5220.082Datasheet
SS7045180MS7*7*4.5180.07Datasheet
SS7045150MS7*7*4.5150.062Datasheet
SS7045120MS7*7*4.5120.054Datasheet
SS7045100MS7*7*4.5100.048Datasheet
SS70458R2MS7*7*4.58.20.041Datasheet
SS70456R8MS7*7*4.56.80.036Datasheet
SS70455R6MS7*7*4.55.60.035Datasheet
SS70454R7MS7*7*4.54.70.033Datasheet
SS70453R9MS7*7*4.53.90.03Datasheet
SS70453R3MS7*7*4.53.30.027Datasheet
SS70452R2MS7*7*4.52.20.022Datasheet
SS70451R0MS7*7*4.510.02Datasheet

備考

Remarks

ABC台湾エレクトロニクス社は、チップインダクタ、非シールドパワーインダクタ、シールドパワーインダクタ、セミシールドパワーインダクタ、大電流パワーインダクタ、コモンモードラインフィルタなどの幅広いDIPおよびSMDインダクタを供給しています。
ABC supply wide range DIP & SMD inductor such as chip inductor, non-shielded power inductor, shielded power inductor, semi-shielded power inductor, high current power inductor & common mode line filter.
お問い合わせからアフターフォローまで一貫して当社にお任せ下さい。
