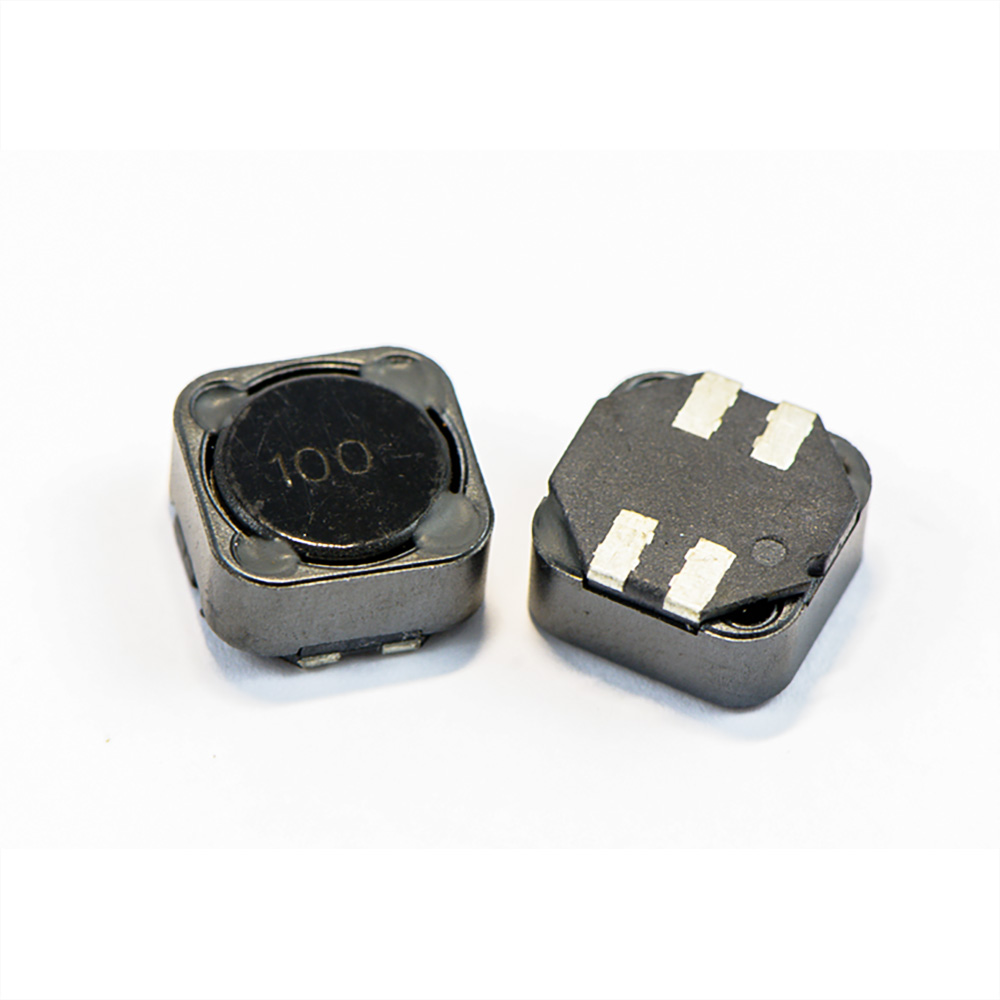

シールド付きSMDパワーインダクタ〔Shielded SMD Power Inductor〕SF
SMDシールドパワーインダクタは、外側のフェライトリングを使用して磁束を収集します。
インダクタの外側を通る磁路を減らして、他のコンポーネントや回路に影響を与えることができます。
高密度PCBアセンブリに適しています。
SMD shielded power inductor use outside ferrite ring to collect magnetic flux.
It can reduce magnetic path through go outside of inductor to influence other component or circuit.
It is good for high density PCB assembly.
インダクタの外側を通る磁路を減らして、他のコンポーネントや回路に影響を与えることができます。
高密度PCBアセンブリに適しています。
SMD shielded power inductor use outside ferrite ring to collect magnetic flux.
It can reduce magnetic path through go outside of inductor to influence other component or circuit.
It is good for high density PCB assembly.
製品仕様
Product Specifications
| Part no. | L*W*T [mm] | Inductance [µH] | RDC [Ω] | Irms [A] | Specification |
|---|---|---|---|---|---|
| SF1258R47YS | 12.5*12.5*6 | 0.47 | 0.0053 | 17.6 |  |
| SF12588R2YS | 12.5*12.5*6 | 8.2 | 0.0194 | 5.54 | |
| SF1258821MS | 12.5*12.5*6 | 820 | 1.46 | 0.6 | |
| SF1258820MS | 12.5*12.5*6 | 82 | 0.15 | 2.05 | |
| SF12586R8YS | 12.5*12.5*6 | 6.8 | 0.0186 | 6.64 | |
| SF1258681MS | 12.5*12.5*6 | 680 | 1.212 | 0.7 | |
| SF1258680MS | 12.5*12.5*6 | 68 | 0.1165 | 2.22 | |
| SF12584R7YS | 12.5*12.5*6 | 4.7 | 0.0137 | 7.18 | |
| SF1258471MS | 12.5*12.5*6 | 470 | 0.83 | 0.87 | |
| SF1258470MS | 12.5*12.5*6 | 47 | 0.086 | 2.71 | |
| SF12583R3YS | 12.5*12.5*6 | 3.3 | 0.0101 | 9.26 | |
| SF1258331MS | 12.5*12.5*6 | 330 | 0.574 | 1.06 | |
| SF1258330MS | 12.5*12.5*6 | 33 | 0.0618 | 3.28 | |
| SF12582R2YS | 12.5*12.5*6 | 2.2 | 0.0085 | 10.9 | |
| SF1258221MS | 12.5*12.5*6 | 220 | 0.354 | 1.19 | |
| SF1258220MS | 12.5*12.5*6 | 22 | 0.0451 | 3.7 | |
| SF12581R5YS | 12.5*12.5*6 | 1.5 | 0.0073 | 13.8 | |
| SF12581R0YS | 12.5*12.5*6 | 1 | 0.0062 | 15 | |
| SF1258151MS | 12.5*12.5*6 | 150 | 0.2538 | 1.48 | |
| SF1258150MS | 12.5*12.5*6 | 15 | 0.0329 | 4.27 | |
| SF1258102MS | 12.5*12.5*6 | 1000 | 1.854 | 0.57 | |
| SF1258101MS | 12.5*12.5*6 | 100 | 0.1713 | 1.78 | |
| SF1258100MS | 12.5*12.5*6 | 10 | 0.0246 | 5.35 | |
| SF1278R47YS | 12.5*12.5*8 | 0.47 | 0.0055 | 17.9 | |
| SF12788R2YS | 12.5*12.5*8 | 8.2 | 0.0191 | 6.32 | |
| SF1278821MS | 12.5*12.5*8 | 820 | 1.632 | 0.65 | |
| SF1278820MS | 12.5*12.5*8 | 82 | 0.153 | 2.09 | |
| SF12786R8YS | 12.5*12.5*8 | 6.8 | 0.0183 | 7.34 | |
| SF1278681MS | 12.5*12.5*8 | 680 | 1.296 | 0.76 | |
| SF1278680MS | 12.5*12.5*8 | 68 | 0.123 | 2.44 | |
| SF12784R7YS | 12.5*12.5*8 | 4.7 | 0.0135 | 8.25 | |
| SF1278471MS | 12.5*12.5*8 | 470 | 0.865 | 0.85 | |
| SF1278470MS | 12.5*12.5*8 | 47 | 0.0898 | 2.95 | |
| SF12783R3YS | 12.5*12.5*8 | 3.3 | 0.011 | 10.4 | |
| SF1278331MS | 12.5*12.5*8 | 330 | 0.54 | 1.04 | |
| SF1278330MS | 12.5*12.5*8 | 33 | 0.0664 | 3.23 | |
| SF12782R2YS | 12.5*12.5*8 | 2.2 | 0.0092 | 12.5 | |
| SF1278221MS | 12.5*12.5*8 | 220 | 0.343 | 1.29 | |
| SF1278220MS | 12.5*12.5*8 | 22 | 0.0503 | 4 | |
| SF12781R5YS | 12.5*12.5*8 | 1.5 | 0.0076 | 13.5 | |
| SF12781R0YS | 12.5*12.5*8 | 1 | 0.0067 | 15.5 | |
| SF1278151MS | 12.5*12.5*8 | 150 | 0.261 | 1.59 | |
| SF1278150MS | 12.5*12.5*8 | 15 | 0.0333 | 5.03 | |
| SF1278102MS | 12.5*12.5*8 | 1000 | 1.992 | 0.61 | |
| SF1278101MS | 12.5*12.5*8 | 100 | 0.175 | 1.96 | |
| SF1278100MS | 12.5*12.5*8 | 10 | 0.0241 | 6.04 | |
備考
Remarks
ABC台湾エレクトロニクス社は、チップインダクタ、非シールドパワーインダクタ、シールドパワーインダクタ、セミシールドパワーインダクタ、大電流パワーインダクタ、コモンモードラインフィルタなどの幅広いDIPおよびSMDインダクタを供給しています。
ABC supply wide range DIP & SMD inductor such as chip inductor, non-shielded power inductor, shielded power inductor, semi-shielded power inductor, high current power inductor & common mode line filter.
ABC supply wide range DIP & SMD inductor such as chip inductor, non-shielded power inductor, shielded power inductor, semi-shielded power inductor, high current power inductor & common mode line filter.
