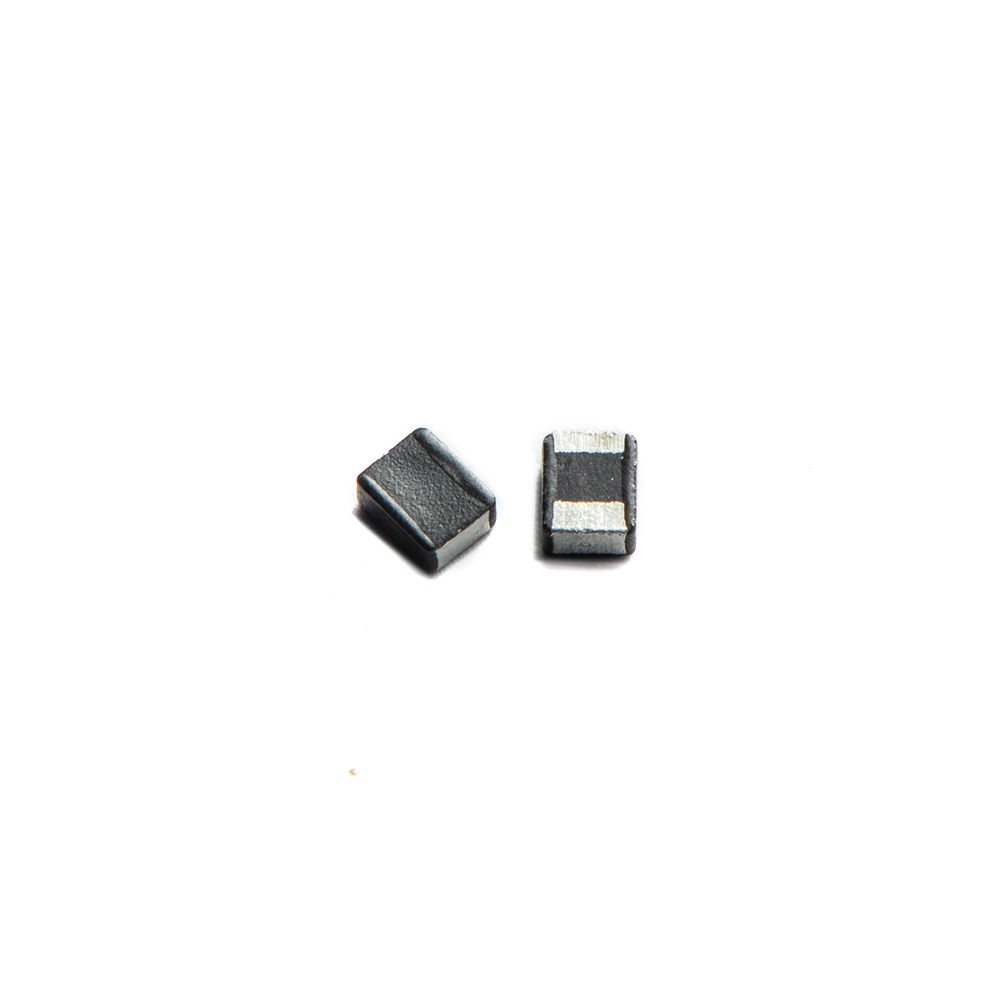

シールド付きSMDパワーインダクタ〔Shielded SMD Power Inductor〕HC

SMDシールドパワーインダクタは、外側のフェライトリングを使用して磁束を収集します。
インダクタの外側を通る磁路を減らして、他のコンポーネントや回路に影響を与えることができます。
高密度PCBアセンブリに適しています。
SMD shielded power inductor use outside ferrite ring to collect magnetic flux.
It can reduce magnetic path through go outside of inductor to influence other component or circuit.
It is good for high density PCB assembly.

製品仕様

Product Specifications

Part no.L*W*T [mm]Inductance [µH]RDC [Ω]Irms [A]Specification
HC0310R68KL3.4*3.1*10.680.03054.6Datasheet
HC0310R47KL3.4*3.1*10.470.02255.6Datasheet
HC03104R7KL3.4*3.1*14.70.1831.8Datasheet
HC03103R3KL3.4*3.1*13.30.1352.1Datasheet
HC03102R2KL3.4*3.1*12.20.09952.3Datasheet
HC03101R5KL3.4*3.1*11.50.0882.4Datasheet
HC03101R0KL3.4*3.1*110.0493.4Datasheet
HC0312R68KL3.4*3.1*1.20.680.02125.6Datasheet
HC0312R47KL3.4*3.1*1.20.470.01536.6Datasheet
HC03124R7KL3.4*3.1*1.24.70.1751.9Datasheet
HC03123R3KL3.4*3.1*1.23.30.112.4Datasheet
HC03122R2KL3.4*3.1*1.22.20.06353.1Datasheet
HC03121R5KL3.4*3.1*1.21.50.0493.6Datasheet
HC03121R0KL3.4*3.1*1.210.0294.7Datasheet
HC0315R68KL3.4*3.1*1.50.680.01467.1Datasheet
HC0315R47KL3.4*3.1*1.50.470.01069Datasheet
HC03154R7KL3.4*3.1*1.54.70.132.3Datasheet
HC03153R3KL3.4*3.1*1.53.30.112.5Datasheet
HC03152R2KL3.4*3.1*1.52.20.0513.7Datasheet
HC03151R5KL3.4*3.1*1.51.50.04054.1Datasheet
HC03151R0KL3.4*3.1*1.510.02435.6Datasheet
HC0320R68KL3.4*3.1*20.680.01267.4Datasheet
HC0320R47KL3.4*3.1*20.470.01257.4Datasheet
HC03204R7KL3.4*3.1*24.70.1322.2Datasheet
HC03203R3KL3.4*3.1*23.30.1022.5Datasheet
HC03202R2KL3.4*3.1*22.20.05653.4Datasheet
HC03201R5KL3.4*3.1*21.50.04054Datasheet
HC03201R0KL3.4*3.1*210.01826.3Datasheet
HC0410R68KL4.4*4.1*10.680.02955.2Datasheet
HC0410R47KL4.4*4.1*10.470.0295.2Datasheet
HC04106R8KL4.4*4.1*16.80.211.8Datasheet
HC04104R7KL4.4*4.1*14.70.181.9Datasheet
HC04103R3KL4.4*4.1*13.30.12.4Datasheet
HC04102R2KL4.4*4.1*12.20.0753Datasheet
HC04101R5KL4.4*4.1*11.50.0563.9Datasheet
HC04101R0KL4.4*4.1*110.03754.5Datasheet
HC0410100KL4.4*4.1*1100.2981.4Datasheet
HC0412R68KL4.4*4.1*1.20.680.02135.6Datasheet
HC0412R47KL4.4*4.1*1.20.470.01327.6Datasheet
HC04126R8KL4.4*4.1*1.26.80.1911.9Datasheet
HC04124R7KL4.4*4.1*1.24.70.1092.6Datasheet
HC04123R3KL4.4*4.1*1.23.30.092.8Datasheet
HC04122R2KL4.4*4.1*1.22.20.0494.1Datasheet
HC04121R5KL4.4*4.1*1.21.50.03694.8Datasheet
HC04121R0KL4.4*4.1*1.210.02525.3Datasheet
HC0412100KL4.4*4.1*1.2100.2131.7Datasheet
HC0415R68KL4.4*4.1*1.50.680.01188.6Datasheet
HC0415R47KL4.4*4.1*1.50.470.00979.3Datasheet
HC04156R8KL4.4*4.1*1.56.80.1082.5Datasheet
HC04154R7KL4.4*4.1*1.54.70.0852.8Datasheet
HC04153R3KL4.4*4.1*1.53.30.07083.2Datasheet
HC04152R2KL4.4*4.1*1.52.20.04134.2Datasheet
HC04151R5KL4.4*4.1*1.51.50.02575.4Datasheet
HC04151R0KL4.4*4.1*1.510.01936.1Datasheet
HC0415100KL4.4*4.1*1.5100.1981.9Datasheet
HC0420R68KL4.4*4.1*20.680.01149.3Datasheet
HC0420R47KL4.4*4.1*20.470.007510.5Datasheet
HC04206R8KL4.4*4.1*26.80.12.6Datasheet
HC04204R7KL4.4*4.1*24.70.0783.1Datasheet
HC04203R3KL4.4*4.1*23.30.04453.9Datasheet
HC04202R2KL4.4*4.1*22.20.02954.8Datasheet
HC04201R5KL4.4*4.1*21.50.02086Datasheet
HC04201R0KL4.4*4.1*210.01557.3Datasheet
HC0420100KL4.4*4.1*2100.21.8Datasheet
HC0510R68KL5.4*5.1*10.680.0374.6Datasheet
HC0510R47KL5.4*5.1*10.470.03255Datasheet
HC05106R8KL5.4*5.1*16.80.1672.2Datasheet
HC05104R7KL5.4*5.1*14.70.1282.4Datasheet
HC05103R3KL5.4*5.1*13.30.0892.8Datasheet
HC05102R2KL5.4*5.1*12.20.0633.4Datasheet
HC05101R5KL5.4*5.1*11.50.0553.6Datasheet
HC05101R0KL5.4*5.1*110.0484Datasheet
HC0510100KL5.4*5.1*1100.291.6Datasheet
HC0512R68KL5.4*5.1*1.20.680.01527.6Datasheet
HC0512R47KL5.4*5.1*1.20.470.0138.3Datasheet
HC05126R8KL5.4*5.1*1.26.80.1482.2Datasheet
HC05124R7KL5.4*5.1*1.24.70.08453.1Datasheet
HC05123R3KL5.4*5.1*1.23.30.073.2Datasheet
HC05122R2KL5.4*5.1*1.22.20.04334.2Datasheet
HC05121R5KL5.4*5.1*1.21.50.02456.2Datasheet
HC05121R0KL5.4*5.1*1.210.02056.5Datasheet
HC0512100KL5.4*5.1*1.2100.172.1Datasheet
HC0515R68KL5.4*5.1*1.50.680.01228.1Datasheet
HC0515R47KL5.4*5.1*1.50.470.00949.5Datasheet
HC05156R8KL5.4*5.1*1.56.80.1222.7Datasheet
HC05154R7KL5.4*5.1*1.54.70.06323.7Datasheet
HC05153R3KL5.4*5.1*1.53.30.04334.7Datasheet
HC05152R2KL5.4*5.1*1.52.20.03265.3Datasheet
HC05151R5KL5.4*5.1*1.51.50.0216.3Datasheet
HC05151R0KL5.4*5.1*1.510.0157.5Datasheet
HC0515100KL5.4*5.1*1.5100.142.4Datasheet
HC0520R68KL5.4*5.1*20.680.007810.7Datasheet
HC0520R47KL5.4*5.1*20.470.005912.5Datasheet
HC05206R8KL5.4*5.1*26.80.06853.5Datasheet
HC05204R7KL5.4*5.1*24.70.04674.2Datasheet
HC05203R3KL5.4*5.1*23.30.03454.8Datasheet
HC05202R2KL5.4*5.1*22.20.02246.2Datasheet
HC05201R5KL5.4*5.1*21.50.01687.2Datasheet
HC05201R0KL5.4*5.1*210.01188.5Datasheet
HC0520100KL5.4*5.1*2100.132.4Datasheet
HC0610R68KL7.1*6.7*10.680.0374.7Datasheet
HC0610R47KL7.1*6.7*10.470.0354.7Datasheet
HC06106R8KL7.1*6.7*16.80.152.3Datasheet
HC06104R7KL7.1*6.7*14.70.1132.8Datasheet
HC06103R3KL7.1*6.7*13.30.0853.2Datasheet
HC06102R2KL7.1*6.7*12.20.07153.3Datasheet
HC06101R5KL7.1*6.7*11.50.0633.5Datasheet
HC06101R0KL7.1*6.7*110.0454.4Datasheet
HC0610100KL7.1*6.7*1100.2062Datasheet
HC0612R68KL7.1*6.7*1.20.680.027Datasheet
HC0612R47KL7.1*6.7*1.20.470.01487.7Datasheet
HC06126R8KL7.1*6.7*1.26.80.1073Datasheet
HC06124R7KL7.1*6.7*1.24.70.073.9Datasheet
HC06123R3KL7.1*6.7*1.23.30.04315Datasheet
HC06122R2KL7.1*6.7*1.22.20.03325.5Datasheet
HC06121R5KL7.1*6.7*1.21.50.02856Datasheet
HC06121R0KL7.1*6.7*1.210.02386.2Datasheet
HC0612100KL7.1*6.7*1.2100.1352.7Datasheet
HC0615R68KL7.1*6.7*1.50.680.009610.3Datasheet
HC0615R47KL7.1*6.7*1.50.470.007512.5Datasheet
HC06156R8KL7.1*6.7*1.56.80.0753.6Datasheet
HC06154R7KL7.1*6.7*1.54.70.0534.3Datasheet
HC06153R3KL7.1*6.7*1.53.30.03715.3Datasheet
HC06152R2KL7.1*6.7*1.52.20.02876Datasheet
HC06151R5KL7.1*6.7*1.51.50.02057Datasheet
HC06151R0KL7.1*6.7*1.510.0159.8Datasheet
HC0615100KL7.1*6.7*1.5100.10253Datasheet
HC0620R68KL7.1*6.7*20.680.00613Datasheet
HC0620R47KL7.1*6.7*20.470.004615.5Datasheet
HC06206R8KL7.1*6.7*26.80.0544.5Datasheet
HC06204R7KL7.1*6.7*24.70.0345.7Datasheet
HC06203R3KL7.1*6.7*23.30.02586.6Datasheet
HC06202R2KL7.1*6.7*22.20.01528.8Datasheet
HC06201R5KL7.1*6.7*21.50.01329Datasheet
HC06201R0KL7.1*6.7*210.00911Datasheet
HC0620100KL7.1*6.7*2100.0823.6Datasheet

備考

Remarks

ABC台湾エレクトロニクス社は、チップインダクタ、非シールドパワーインダクタ、シールドパワーインダクタ、セミシールドパワーインダクタ、大電流パワーインダクタ、コモンモードラインフィルタなどの幅広いDIPおよびSMDインダクタを供給しています。
ABC supply wide range DIP & SMD inductor such as chip inductor, non-shielded power inductor, shielded power inductor, semi-shielded power inductor, high current power inductor & common mode line filter.
