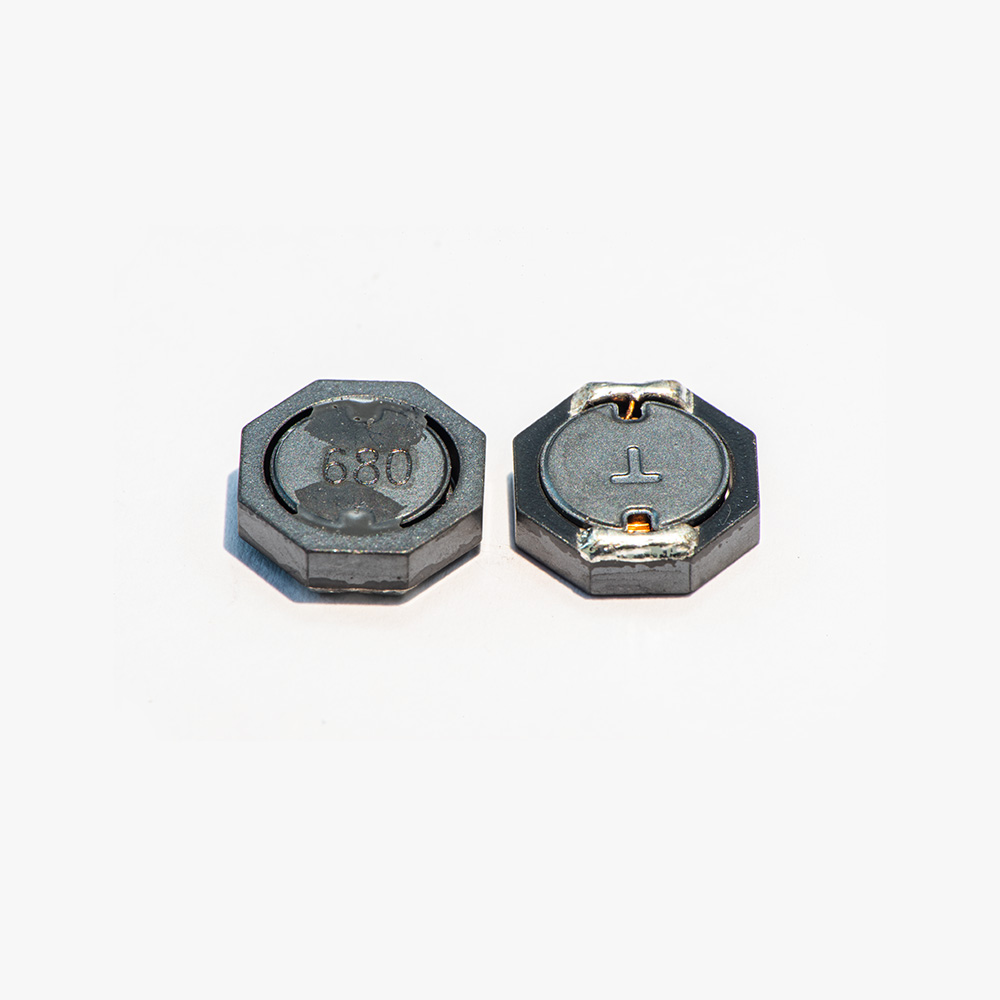

シールド付きSMDパワーインダクタ〔Shielded SMD Power Inductor〕ASU

SMDシールドパワーインダクタは、外側のフェライトリングを使用して磁束を収集します。
インダクタの外側を通る磁路を減らして、他のコンポーネントや回路に影響を与えることができます。
高密度PCBアセンブリに適しています。
SMD shielded power inductor use outside ferrite ring to collect magnetic flux.
It can reduce magnetic path through go outside of inductor to influence other component or circuit.
It is good for high density PCB assembly.

製品仕様

Product Specifications

Part no.L*W*T [mm]Inductance [µH]RDC [Ω]Irms [A]Specification
ASU10288R2YFB10*10*2.88.20.0373.3Datasheet
ASU1028820YFB10*10*2.8820.420.9Datasheet
ASU10286R8YFB10*10*2.86.80.0333.5Datasheet
ASU1028680YFB10*10*2.8680.31Datasheet
ASU1028560YFB10*10*2.8560.271.1Datasheet
ASU10284R7YFB10*10*2.84.70.0234.5Datasheet
ASU1028470YFB10*10*2.8470.231.3Datasheet
ASU10283R3YFB10*10*2.83.30.024.6Datasheet
ASU1028330YFB10*10*2.8330.181.25Datasheet
ASU10282R2YFB10*10*2.82.20.0155.3Datasheet
ASU1028220YFB10*10*2.8220.1351.6Datasheet
ASU10281R5YFB10*10*2.81.50.016.5Datasheet
ASU10281R0YFB10*10*2.810.00657Datasheet
ASU1028151YFB10*10*2.81500.680.65Datasheet
ASU1028150YFB10*10*2.8150.092Datasheet
ASU1028121YFB10*10*2.81200.560.7Datasheet
ASU1028101YFB10*10*2.81000.470.85Datasheet
ASU1028100YFB10*10*2.8100.0532.8Datasheet
ASU10306R2YFB10*10*2.86.20.0423.9Datasheet
ASU1030680YFB10*10*2.8680.371.22Datasheet
ASU10304R7YFB10*10*2.84.70.03254.4Datasheet
ASU1030470YFB10*10*2.8470.271.35Datasheet
ASU10303R5YFB10*10*2.83.50.0275.2Datasheet
ASU1030330YFB10*10*2.8330.1951.74Datasheet
ASU1030220YFB10*10*2.8220.1452.1Datasheet
ASU1030151YFB10*10*2.81500.840.84Datasheet
ASU1030150YFB10*10*2.8150.0952.55Datasheet
ASU1030101YFB10*10*2.81000.521.02Datasheet
ASU1030100YFB10*10*2.8100.0583.1Datasheet
ASU10386R2YFB10*10*3.86.20.0244Datasheet
ASU1038680YFB10*10*3.8680.2161.3Datasheet
ASU10385R0YFB10*10*3.850.0224.6Datasheet
ASU1038470YFB10*10*3.8470.161.65Datasheet
ASU10383R5YFB10*10*3.83.50.0155.5Datasheet
ASU1038331YFB10*10*3.833010.55Datasheet
ASU1038330YFB10*10*3.8330.1121.8Datasheet
ASU10382R2YFB10*10*3.82.20.01056.8Datasheet
ASU1038221YFB10*10*3.82200.740.65Datasheet
ASU1038220YFB10*10*3.8220.0752.2Datasheet
ASU10381R5YFB10*10*3.81.50.00757.2Datasheet
ASU1038151YFB10*10*3.81500.4760.9Datasheet
ASU1038150YFB10*10*3.8150.052.8Datasheet
ASU1038101YFB10*10*3.81000.31.1Datasheet
ASU1038100YFB10*10*3.8100.0353.8Datasheet
ASU10406R2YFB10*10*3.86.20.0284.7Datasheet
ASU1040680YFB10*10*3.8680.321.45Datasheet
ASU10405R0YFB10*10*3.850.0235.2Datasheet
ASU1040470YFB10*10*3.8470.221.62Datasheet
ASU10403R8YFB10*10*3.83.80.0186.6Datasheet
ASU1040331YFB10*10*3.83301.350.62Datasheet
ASU1040330YFB10*10*3.8330.142.05Datasheet
ASU1040221YFB10*10*3.82200.950.78Datasheet
ASU1040220YFB10*10*3.8220.0982.55Datasheet
ASU1040150YFB10*10*3.8150.0782.9Datasheet
ASU1040101YFB10*10*3.81000.4151.18Datasheet
ASU1040100YFB10*10*3.8100.0424.4Datasheet
ASU10488R2YFB10*10*4.88.20.023.8Datasheet
ASU1048820YFB10*10*4.8820.21.1Datasheet
ASU10486R8YFB10*10*4.86.80.0184.1Datasheet
ASU1048680YFB10*10*4.8680.171.25Datasheet
ASU1048560YFB10*10*4.8560.1451.4Datasheet
ASU10484R7YFB10*10*4.84.70.01254.75Datasheet
ASU1048470YFB10*10*4.8470.121.5Datasheet
ASU10483R0YFB10*10*4.830.016Datasheet
ASU1048331YFB10*10*4.83300.640.52Datasheet
ASU1048330YFB10*10*4.8330.0841.7Datasheet
ASU10482R2YFB10*10*4.82.20.00726.3Datasheet
ASU1048221YFB10*10*4.82200.4550.7Datasheet
ASU1048220YFB10*10*4.8220.0552Datasheet
ASU10481R5YFB10*10*4.81.50.00587.2Datasheet
ASU1048151YFB10*10*4.81500.3050.8Datasheet
ASU1048150YFB10*10*4.8150.042.7Datasheet
ASU1048101YFB10*10*4.81000.221Datasheet
ASU1048100YFB10*10*4.8100.0253.7Datasheet
ASU1050681YFB10*10*4.86801.760.56Datasheet
ASU1050680YFB10*10*4.8680.1861.75Datasheet
ASU10504R7YFB10*10*4.84.70.0195.2Datasheet
ASU1050471YFB10*10*4.84701.350.65Datasheet
ASU1050470YFB10*10*4.8470.132.1Datasheet
ASU1050331YFB10*10*4.83300.90.84Datasheet
ASU1050330YFB10*10*4.8330.092.7Datasheet
ASU1050221YFB10*10*4.82200.610.95Datasheet
ASU1050220YFB10*10*4.8220.0762.9Datasheet
ASU1050151YFB10*10*4.81500.431.15Datasheet
ASU1050102YFB10*10*4.810002.760.47Datasheet
ASU1050101YFB10*10*4.81000.261.5Datasheet
ASU1050100YFB10*10*4.8100.0344.4Datasheet
ASU10656R5YFB10*10*6.66.50.0355Datasheet
ASU1065680YFB10*10*6.6680.251.85Datasheet
ASU10654R2YFB10*10*6.64.20.0235.6Datasheet
ASU1065470YFB10*10*6.6470.212.1Datasheet
ASU1065330YFB10*10*6.6330.122.7Datasheet
ASU10652R8YFB10*10*6.62.80.0196.5Datasheet
ASU1065220YFB10*10*6.6220.0733.8Datasheet
ASU1065101YFB10*10*6.61000.291.8Datasheet
ASU1065100YFB10*10*6.6100.0414.9Datasheet
ASU3028470YLB3.3*3.3*2.8470.810.32Datasheet
ASU3028330YLB3.3*3.3*2.8330.450.47Datasheet
ASU3028220YLB3.3*3.3*2.8220.270.6Datasheet
ASU3028150YLB3.3*3.3*2.8150.230.66Datasheet
ASU3028100YLB3.3*3.3*2.8100.160.72Datasheet
ASU50286R8YLB5.2*5.2*2.86.80.0562Datasheet
ASU5028680YLB5.2*5.2*2.8680.550.56Datasheet
ASU50284R7YLB5.2*5.2*2.84.70.0452.2Datasheet
ASU5028470YLB5.2*5.2*2.8470.360.7Datasheet
ASU50283R3YLB5.2*5.2*2.83.30.0322.8Datasheet
ASU5028330YLB5.2*5.2*2.8330.260.8Datasheet
ASU50282R2YLB5.2*5.2*2.82.20.0273.2Datasheet
ASU5028220YLB5.2*5.2*2.8220.210.95Datasheet
ASU50281R2YLB5.2*5.2*2.81.20.0223.5Datasheet
ASU5028150YLB5.2*5.2*2.8150.141.1Datasheet
ASU5028101YLB5.2*5.2*2.81000.80.47Datasheet
ASU5028100YLB5.2*5.2*2.8100.0851.8Datasheet
ASU60258R2YFB6.5*6.2*2.58.20.0522.2Datasheet
ASU60256R8YFB6.5*6.2*2.56.80.0422.4Datasheet
ASU6025680YFB6.5*6.2*2.5680.3650.8Datasheet
ASU60254R7YFB6.5*6.2*2.54.70.0352.7Datasheet
ASU6025470YFB6.5*6.2*2.5470.251Datasheet
ASU60253R3YFB6.5*6.2*2.53.30.0273.2Datasheet
ASU6025330YFB6.5*6.2*2.5330.181.2Datasheet
ASU60252R2YFB6.5*6.2*2.52.20.0243.4Datasheet
ASU6025221YFB6.5*6.2*2.52201.250.42Datasheet
ASU6025220YFB6.5*6.2*2.5220.131.6Datasheet
ASU60251R2YFB6.5*6.2*2.51.20.0194Datasheet
ASU6025151YFB6.5*6.2*2.51500.770.54Datasheet
ASU6025150YFB6.5*6.2*2.5150.0861.8Datasheet
ASU6025101YFB6.5*6.2*2.51000.50.7Datasheet
ASU6025100YFB6.5*6.2*2.5100.0572Datasheet
ASU80288R2YFB8*8*2.88.20.0542.6Datasheet
ASU80286R8YFB8*8*2.86.80.0452.8Datasheet
ASU8028680YFB8*8*2.8680.390.85Datasheet
ASU80284R7YFB8*8*2.84.70.0263.7Datasheet
ASU8028470YFB8*8*2.8470.231.2Datasheet
ASU80283R3YFB8*8*2.83.30.0233.6Datasheet
ASU8028330YFB8*8*2.8330.1851.3Datasheet
ASU80282R5YFB8*8*2.82.50.0184.5Datasheet
ASU8028220YFB8*8*2.8220.131.6Datasheet
ASU8028150YFB8*8*2.8150.0852Datasheet
ASU8028101YFB8*8*2.81000.50.75Datasheet
ASU8028100YFB8*8*2.8100.0572.6Datasheet
ASU80306R8YFB8*8*2.86.80.0463.6Datasheet
ASU8030680YFB8*8*2.8680.3151.25Datasheet
ASU80304R7YFB8*8*2.84.70.034.6Datasheet
ASU8030470YFB8*8*2.8470.261.45Datasheet
ASU80303R3YFB8*8*2.83.30.0225Datasheet
ASU8030330YFB8*8*2.8330.181.6Datasheet
ASU8030220YFB8*8*2.8220.132Datasheet
ASU8030150YFB8*8*2.8150.12.2Datasheet
ASU8030101YFB8*8*2.81000.520.85Datasheet
ASU8030100YFB8*8*2.8100.063Datasheet
ASU80406R2YFB8*8*3.86.20.0324.2Datasheet
ASU8040680YFB8*8*3.8680.261.35Datasheet
ASU80404R2YFB8*8*3.84.20.0225.3Datasheet
ASU8040470YFB8*8*3.8470.191.55Datasheet
ASU80403R3YFB8*8*3.83.30.0186Datasheet
ASU8040330YFB8*8*3.8330.151.9Datasheet
ASU8040220YFB8*8*3.8220.112.2Datasheet
ASU8040151YFB8*8*3.81500.560.9Datasheet
ASU8040150YFB8*8*3.8150.072.8Datasheet
ASU8040101YFB8*8*3.81000.411.05Datasheet
ASU8040100YFB8*8*3.8100.0523.7Datasheet
ASU80456R2YFB8*8*4.56.20.0364.2Datasheet
ASU8045680YFB8*8*4.5680.41.25Datasheet
ASU80454R7YFB8*8*4.54.70.02754.6Datasheet
ASU8045470YFB8*8*4.5470.271.45Datasheet
ASU80453R5YFB8*8*4.53.50.0255Datasheet
ASU8045330YFB8*8*4.5330.152Datasheet
ASU8045220YFB8*8*4.5220.1222.25Datasheet
ASU8045101YFB8*8*4.51000.51Datasheet
ASU8045100YFB8*8*4.5100.0483.5Datasheet
ASU80586R8YFB8*8*5.86.80.025.5Datasheet
ASU8058680YFB8*8*5.8680.132Datasheet
ASU80585R2YFB8*8*5.85.20.01755.8Datasheet
ASU8058470YFB8*8*5.8470.12.3Datasheet
ASU80583R9YFB8*8*5.83.90.0166.5Datasheet
ASU8058330YFB8*8*5.8330.0722.7Datasheet
ASU8058220YFB8*8*5.8220.0523.4Datasheet
ASU8058101YFB8*8*5.81000.161.7Datasheet
ASU8058100YFB8*8*5.8100.0254.6Datasheet
