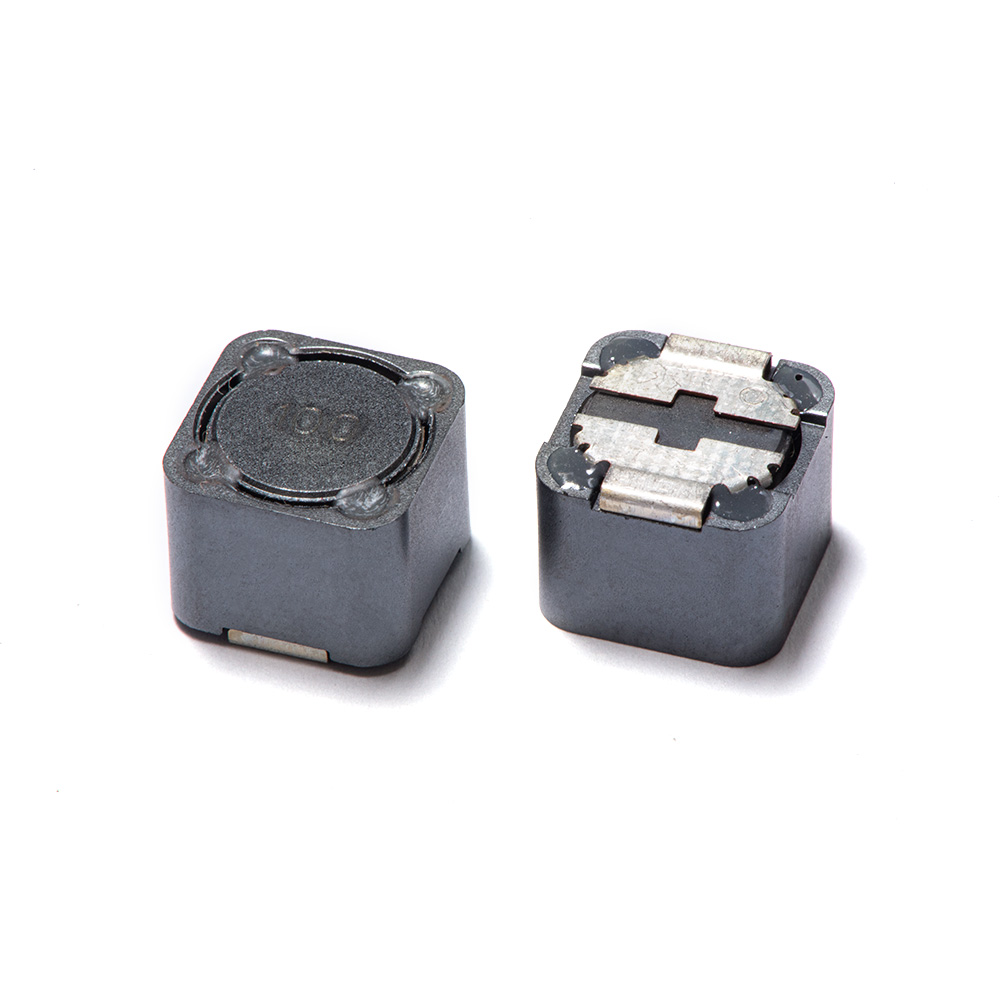

シールド付きSMDパワーインダクタ〔Shielded SMD Power Inductor〕ASS

SMDシールドパワーインダクタは、外側のフェライトリングを使用して磁束を収集します。
インダクタの外側を通る磁路を減らして、他のコンポーネントや回路に影響を与えることができます。
高密度PCBアセンブリに適しています。
SMD shielded power inductor use outside ferrite ring to collect magnetic flux.
It can reduce magnetic path through go outside of inductor to influence other component or circuit.
It is good for high density PCB assembly.

製品仕様

Product Specifications

Part no.L*W*T [mm]Inductance [µH]RDC [Ω]Irms [A]Specification
ASS12108R2YFB12*12*108.20.0177.25Datasheet
ASS1210821MFB12*12*108201.320.85Datasheet
ASS1210820MFB12*12*10820.1122.8Datasheet
ASS12106R8YFB12*12*106.80.0157.85Datasheet
ASS1210681MFB12*12*106801.21Datasheet
ASS1210680MFB12*12*10680.1023Datasheet
ASS12105R6YFB12*12*105.60.01358Datasheet
ASS1210561MFB12*12*105600.91.1Datasheet
ASS1210560MFB12*12*10560.093.4Datasheet
ASS12104R7YFB12*12*104.70.0128.5Datasheet
ASS1210471MFB12*12*104700.821.2Datasheet
ASS1210470MFB12*12*10470.0723.8Datasheet
ASS12103R3YFB12*12*103.30.019Datasheet
ASS1210391MFB12*12*103900.61.3Datasheet
ASS1210390MFB12*12*10390.0664.2Datasheet
ASS1210331MFB12*12*103300.451.4Datasheet
ASS1210330MFB12*12*10330.0524.4Datasheet
ASS12102R2YFB12*12*102.20.0099.5Datasheet
ASS1210271MFB12*12*102700.411.5Datasheet
ASS1210270MFB12*12*10270.045Datasheet
ASS1210221MFB12*12*102200.3151.7Datasheet
ASS1210220MFB12*12*10220.0385.2Datasheet
ASS12101R8YFB12*12*101.80.007510.2Datasheet
ASS12101R0YFB12*12*1010.00611Datasheet
ASS1210181MFB12*12*101800.251.9Datasheet
ASS1210180MFB12*12*10180.0355.5Datasheet
ASS1210151MFB12*12*101500.192.2Datasheet
ASS1210150MFB12*12*10150.0325.8Datasheet
ASS1210121MFB12*12*101200.172.3Datasheet
ASS1210120MFB12*12*10120.0226.3Datasheet
ASS1210102MFB12*12*1010001.650.75Datasheet
ASS1210101MFB12*12*101000.1352.5Datasheet
ASS1210100MFB12*12*10100.0186.5Datasheet
ASS1240821KLB12.5*12.5*48202.40.45Datasheet
ASS1240820MLB12.5*12.5*4820.251.35Datasheet
ASS1240681KLB12.5*12.5*468020.5Datasheet
ASS1240680MLB12.5*12.5*4680.21.5Datasheet
ASS1240561KLB12.5*12.5*45601.50.55Datasheet
ASS1240560MLB12.5*12.5*4560.171.8Datasheet
ASS1240471KLB12.5*12.5*44701.350.62Datasheet
ASS1240470MLB12.5*12.5*4470.1352Datasheet
ASS1240391KLB12.5*12.5*43901.150.7Datasheet
ASS1240390MLB12.5*12.5*4390.122.15Datasheet
ASS1240331KLB12.5*12.5*43300.950.75Datasheet
ASS1240330MLB12.5*12.5*4330.0972.3Datasheet
ASS1240271KLB12.5*12.5*42700.780.8Datasheet
ASS1240270MLB12.5*12.5*4270.0852.55Datasheet
ASS1240221KLB12.5*12.5*42200.60.92Datasheet
ASS1240220MLB12.5*12.5*4220.06753Datasheet
ASS1240181KLB12.5*12.5*41800.550.98Datasheet
ASS1240180MLB12.5*12.5*4180.0553.2Datasheet
ASS1240151KLB12.5*12.5*41500.441.1Datasheet
ASS1240150MLB12.5*12.5*4150.0473.5Datasheet
ASS1240121KLB12.5*12.5*41200.371.2Datasheet
ASS1240120MLB12.5*12.5*4120.0383.8Datasheet
ASS1240102KLB12.5*12.5*4100030.42Datasheet
ASS1240101MLB12.5*12.5*41000.31.25Datasheet
ASS1240100MLB12.5*12.5*4100.0324Datasheet
ASS12608R2YFB12.5*12.5*68.20.01955.7Datasheet
ASS1260821KFB12.5*12.5*68201.50.73Datasheet
ASS1260820MFB12.5*12.5*6820.1451.95Datasheet
ASS12607R6YFB12.5*12.5*67.60.0196Datasheet
ASS12606R8YFB12.5*12.5*66.80.0186.3Datasheet
ASS12606R1YFB12.5*12.5*66.10.0176.6Datasheet
ASS1260681KFB12.5*12.5*66801.150.8Datasheet
ASS1260680MFB12.5*12.5*6680.112.1Datasheet
ASS12605R6YFB12.5*12.5*65.60.01626.7Datasheet
ASS1260561KFB12.5*12.5*656010.88Datasheet
ASS1260560MFB12.5*12.5*6560.12.3Datasheet
ASS12604R7YFB12.5*12.5*64.70.01556.8Datasheet
ASS1260471KFB12.5*12.5*64700.820.95Datasheet
ASS1260470MFB12.5*12.5*6470.0862.6Datasheet
ASS12603R5YFB12.5*12.5*63.50.0137.5Datasheet
ASS12603R3YFB12.5*12.5*63.30.0127.6Datasheet
ASS1260391KFB12.5*12.5*63900.71.08Datasheet
ASS1260390MFB12.5*12.5*6390.072.8Datasheet
ASS1260331KFB12.5*12.5*63300.581.15Datasheet
ASS1260330MFB12.5*12.5*6330.063Datasheet
ASS12602R4YFB12.5*12.5*62.40.01157.8Datasheet
ASS12602R2YFB12.5*12.5*62.20.01058.2Datasheet
ASS1260271KFB12.5*12.5*62700.451.3Datasheet
ASS1260270MFB12.5*12.5*6270.0453.6Datasheet
ASS1260221KFB12.5*12.5*62200.381.38Datasheet
ASS1260220MFB12.5*12.5*6220.0434Datasheet
ASS12601R5YFB12.5*12.5*61.50.00958.8Datasheet
ASS12601R2YFB12.5*12.5*61.20.0089.2Datasheet
ASS12601R0YFB12.5*12.5*610.00789.4Datasheet
ASS1260181KFB12.5*12.5*61800.321.4Datasheet
ASS1260180MFB12.5*12.5*6180.0364.2Datasheet
ASS1260151KFB12.5*12.5*61500.261.55Datasheet
ASS1260150MFB12.5*12.5*6150.0275Datasheet
ASS1260121KFB12.5*12.5*61200.211.65Datasheet
ASS1260120MFB12.5*12.5*6120.0235.2Datasheet
ASS1260102KFB12.5*12.5*610001.70.68Datasheet
ASS1260101MFB12.5*12.5*61000.181.7Datasheet
ASS1260100MFB12.5*12.5*6100.025.5Datasheet
ASS12808R2YFB12.5*12.5*7.58.20.002056.2Datasheet
ASS1280821KFB12.5*12.5*7.58200.150.7Datasheet
ASS1280820MFB12.5*12.5*7.5820.0132.3Datasheet
ASS12806R8YFB12.5*12.5*7.56.80.001857.6Datasheet
ASS1280681KFB12.5*12.5*7.56800.130.75Datasheet
ASS1280680MFB12.5*12.5*7.5680.0122.4Datasheet
ASS1280561KFB12.5*12.5*7.55600.0960.8Datasheet
ASS1280560MFB12.5*12.5*7.5560.012.6Datasheet
ASS12804R7YFB12.5*12.5*7.54.70.001558.2Datasheet
ASS1280471KFB12.5*12.5*7.54700.0880.9Datasheet
ASS1280470MFB12.5*12.5*7.5470.0082.9Datasheet
ASS12803R9YFB12.5*12.5*7.53.90.00148.4Datasheet
ASS1280391KFB12.5*12.5*7.53900.0681Datasheet
ASS1280390MFB12.5*12.5*7.5390.0073.2Datasheet
ASS1280331KFB12.5*12.5*7.53300.061.1Datasheet
ASS1280330MFB12.5*12.5*7.5330.00573.5Datasheet
ASS1280271KFB12.5*12.5*7.52700.0451.2Datasheet
ASS1280270MFB12.5*12.5*7.5270.00523.9Datasheet
ASS1280221KFB12.5*12.5*7.52200.041.6Datasheet
ASS1280220MFB12.5*12.5*7.5220.003864.3Datasheet
ASS1280181KFB12.5*12.5*7.51800.031.75Datasheet
ASS1280180MFB12.5*12.5*7.5180.00354.8Datasheet
ASS1280151KFB12.5*12.5*7.51500.0271.85Datasheet
ASS1280150MFB12.5*12.5*7.5150.002855.2Datasheet
ASS1280122KFB12.5*12.5*7.512000.220.55Datasheet
ASS1280121KFB12.5*12.5*7.51200.021.95Datasheet
ASS1280120MFB12.5*12.5*7.5120.00285.6Datasheet
ASS1280102KFB12.5*12.5*7.510000.170.68Datasheet
ASS1280101MFB12.5*12.5*7.51000.0152.1Datasheet
ASS1280100MFB12.5*12.5*7.5100.001956Datasheet
ASS1806681MLB18.2*14*6.86801.70.54Datasheet
ASS1806680MLB18.2*14*6.8680.21.6Datasheet
ASS1806471MLB18.2*14*6.84701.150.64Datasheet
ASS1806470MLB18.2*14*6.8470.132Datasheet
ASS1806331MLB18.2*14*6.83300.920.8Datasheet
ASS1806330MLB18.2*14*6.8330.12.5Datasheet
ASS1806221MLB18.2*14*6.82200.61Datasheet
ASS1806220MLB18.2*14*6.8220.073Datasheet
ASS1806151MLB18.2*14*6.81500.51.05Datasheet
ASS1806150MLB18.2*14*6.8150.0523.6Datasheet
ASS1806102MLB18.2*14*6.810002.450.45Datasheet
ASS1806101MLB18.2*14*6.81000.321.3Datasheet
ASS1806100MLB18.2*14*6.8100.044Datasheet

備考

Remarks

ABC台湾エレクトロニクス社は、チップインダクタ、非シールドパワーインダクタ、シールドパワーインダクタ、セミシールドパワーインダクタ、大電流パワーインダクタ、コモンモードラインフィルタなどの幅広いDIPおよびSMDインダクタを供給しています。
ABC supply wide range DIP & SMD inductor such as chip inductor, non-shielded power inductor, shielded power inductor, semi-shielded power inductor, high current power inductor & common mode line filter.
