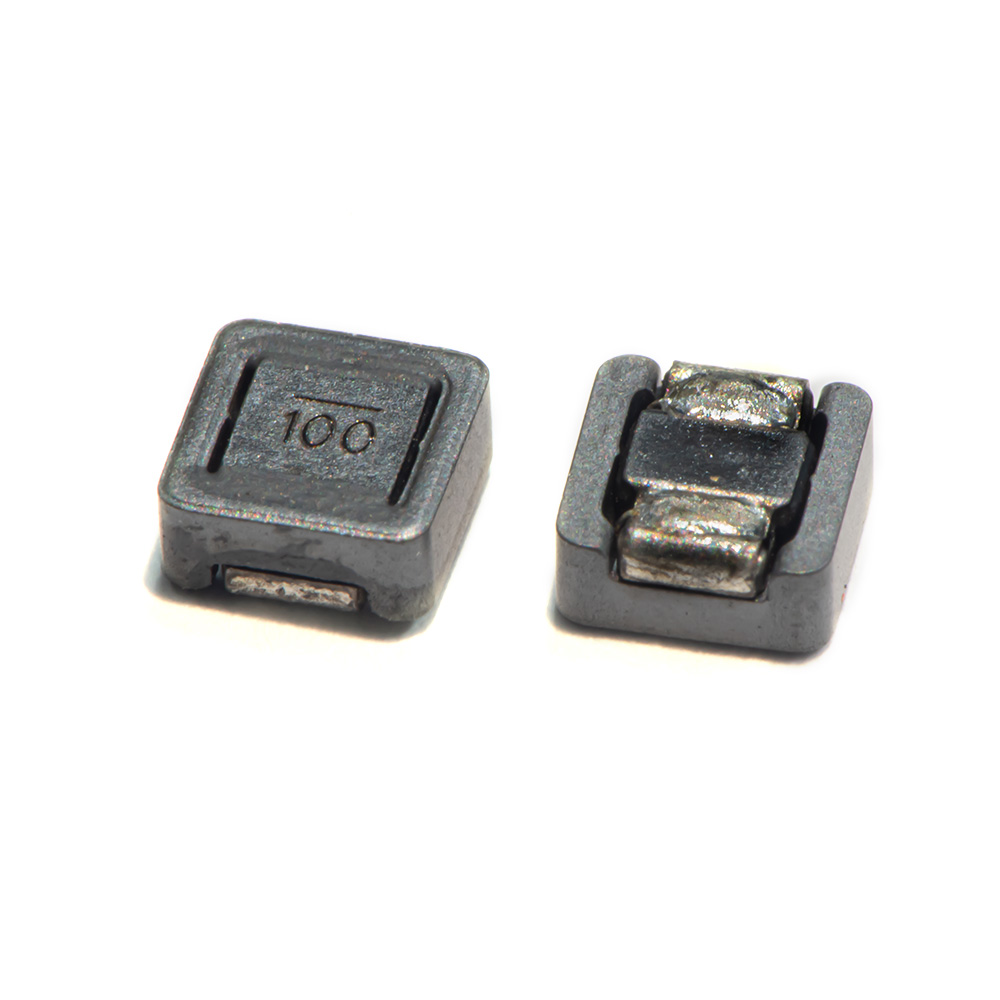

シールド付きSMDパワーインダクタ〔Shielded SMD Power Inductor〕AQS

SMDシールドパワーインダクタは、外側のフェライトリングを使用して磁束を収集します。
インダクタの外側を通る磁路を減らして、他のコンポーネントや回路に影響を与えることができます。
高密度PCBアセンブリに適しています。
SMD shielded power inductor use outside ferrite ring to collect magnetic flux.
It can reduce magnetic path through go outside of inductor to influence other component or circuit.
It is good for high density PCB assembly.

製品仕様

Product Specifications

Part no.L*W*T [mm]Inductance [µH]RDC [Ω]Irms [A]Specification
AQS38186R8YLB3.8*3.8*1.86.80.161.25Datasheet
AQS3818680MLB3.8*3.8*1.8681.60.38Datasheet
AQS38184R7YLB3.8*3.8*1.84.70.121.5Datasheet
AQS3818470MLB3.8*3.8*1.8471.030.45Datasheet
AQS38183R9YLB3.8*3.8*1.83.90.1051.6Datasheet
AQS38183R3YLB3.8*3.8*1.83.30.0851.7Datasheet
AQS3818330MLB3.8*3.8*1.8330.740.5Datasheet
AQS38182R7YLB3.8*3.8*1.82.70.0651.9Datasheet
AQS38182R2YLB3.8*3.8*1.82.20.062Datasheet
AQS3818220MLB3.8*3.8*1.8220.50.65Datasheet
AQS38181R5YLB3.8*3.8*1.81.50.0472.5Datasheet
AQS38181R0YLB3.8*3.8*1.810.0372.75Datasheet
AQS3818150MLB3.8*3.8*1.8150.340.8Datasheet
AQS3818101MLB3.8*3.8*1.81002.60.28Datasheet
AQS3818100MLB3.8*3.8*1.8100.2351Datasheet
AQS48188R2YLB4.8*4.8*1.88.20.131.55Datasheet
AQS48186R8YLB4.8*4.8*1.86.80.11.65Datasheet
AQS48185R6YLB4.8*4.8*1.85.60.091.75Datasheet
AQS48184R7YLB4.8*4.8*1.84.70.082Datasheet
AQS4818470MLB4.8*4.8*1.8470.630.6Datasheet
AQS48183R9YLB4.8*4.8*1.83.90.072.2Datasheet
AQS48183R3YLB4.8*4.8*1.83.30.0552.5Datasheet
AQS4818390MLB4.8*4.8*1.8390.540.63Datasheet
AQS4818330MLB4.8*4.8*1.8330.50.7Datasheet
AQS48182R2YLB4.8*4.8*1.82.20.0452.7Datasheet
AQS4818270MLB4.8*4.8*1.8270.40.9Datasheet
AQS4818220MLB4.8*4.8*1.8220.361Datasheet
AQS48181R5YLB4.8*4.8*1.81.50.0353.75Datasheet
AQS48181R0YLB4.8*4.8*1.810.0254Datasheet
AQS4818180MLB4.8*4.8*1.8180.281.1Datasheet
AQS4818150MLB4.8*4.8*1.8150.221.25Datasheet
AQS4818120MLB4.8*4.8*1.8120.171.3Datasheet
AQS4818100MLB4.8*4.8*1.8100.141.45Datasheet
AQS48288R2YLB4.8*4.8*2.88.20.0871.6Datasheet
AQS4828820MLB4.8*4.8*2.8820.480.7Datasheet
AQS48286R8YLB4.8*4.8*2.86.80.0741.65Datasheet
AQS4828680MLB4.8*4.8*2.8680.370.8Datasheet
AQS4828560MLB4.8*4.8*2.8560.320.85Datasheet
AQS48284R7YLB4.8*4.8*2.84.70.0542.1Datasheet
AQS4828470MLB4.8*4.8*2.8470.270.88Datasheet
AQS48283R9YLB4.8*4.8*2.83.90.0472.2Datasheet
AQS4828330MLB4.8*4.8*2.8330.260.9Datasheet
AQS48282R7YLB4.8*4.8*2.82.70.0342.5Datasheet
AQS4828221MLB4.8*4.8*2.82201.250.41Datasheet
AQS4828220MLB4.8*4.8*2.8220.1851.1Datasheet
AQS48281R8YLB4.8*4.8*2.81.80.033Datasheet
AQS48281R2YLB4.8*4.8*2.81.20.0243.5Datasheet
AQS4828181MLB4.8*4.8*2.81801.080.43Datasheet
AQS4828180MLB4.8*4.8*2.8180.161.2Datasheet
AQS4828151MLB4.8*4.8*2.81500.860.45Datasheet
AQS4828150MLB4.8*4.8*2.8150.1451.3Datasheet
AQS4828121MLB4.8*4.8*2.81200.760.5Datasheet
AQS4828120MLB4.8*4.8*2.8120.1251.35Datasheet
AQS4828101MLB4.8*4.8*2.81000.60.65Datasheet
AQS4828100MLB4.8*4.8*2.8100.11.5Datasheet
AQS58189R0YLB5.8*5.8*2.290.1851.2Datasheet
AQS5818820MLB5.8*5.8*2.2821.420.43Datasheet
AQS58187R5YLB5.8*5.8*2.27.50.1521.35Datasheet
AQS58186R2YLB5.8*5.8*2.26.20.1231.5Datasheet
AQS5818680MLB5.8*5.8*2.2681.2050.47Datasheet
AQS58185R0YLB5.8*5.8*2.250.1081.6Datasheet
AQS5818560MLB5.8*5.8*2.2560.8750.55Datasheet
AQS5818470MLB5.8*5.8*2.2470.810.57Datasheet
AQS58183R9YLB5.8*5.8*2.23.90.0941.7Datasheet
AQS58183R0YLB5.8*5.8*2.230.0751.9Datasheet
AQS5818390MLB5.8*5.8*2.2390.710.6Datasheet
AQS5818330MLB5.8*5.8*2.2330.570.65Datasheet
AQS58182R0YLB5.8*5.8*2.220.0432.5Datasheet
AQS5818270MLB5.8*5.8*2.2270.510.7Datasheet
AQS5818221MLB5.8*5.8*2.22204.080.24Datasheet
AQS5818220MLB5.8*5.8*2.2220.4750.75Datasheet
AQS58181R5YLB5.8*5.8*2.21.50.0313Datasheet
AQS5818181MLB5.8*5.8*2.21803.2450.28Datasheet
AQS5818180MLB5.8*5.8*2.2180.3650.85Datasheet
AQS5818151MLB5.8*5.8*2.21502.6750.31Datasheet
AQS5818150MLB5.8*5.8*2.2150.30.9Datasheet
AQS5818121MLB5.8*5.8*2.21202.110.35Datasheet
AQS5818120MLB5.8*5.8*2.2120.251Datasheet
AQS5818101MLB5.8*5.8*2.21001.890.37Datasheet
AQS5818100MLB5.8*5.8*2.2100.2351.1Datasheet
AQS58288R2YLB5.8*5.8*2.88.20.0633Datasheet
AQS5828820MLB5.8*5.8*2.8820.530.95Datasheet
AQS58286R2YLB5.8*5.8*2.86.20.0573.5Datasheet
AQS5828681MLB5.8*5.8*2.86804.80.31Datasheet
AQS5828680MLB5.8*5.8*2.8680.471.03Datasheet
AQS58285R3YLB5.8*5.8*2.85.30.0423.8Datasheet
AQS5828560MLB5.8*5.8*2.8560.3951.13Datasheet
AQS58284R7YLB5.8*5.8*2.84.70.044Datasheet
AQS5828470MLB5.8*5.8*2.8470.3051.33Datasheet
AQS5828390MLB5.8*5.8*2.8390.261.37Datasheet
AQS5828331MLB5.8*5.8*2.83302.10.46Datasheet
AQS5828330MLB5.8*5.8*2.8330.231.4Datasheet
AQS58282R6YLB5.8*5.8*2.82.60.034.5Datasheet
AQS5828270MLB5.8*5.8*2.8270.181.65Datasheet
AQS5828221MLB5.8*5.8*2.82201.20.62Datasheet
AQS5828220MLB5.8*5.8*2.8220.161.75Datasheet
AQS5828181MLB5.8*5.8*2.81801.10.64Datasheet
AQS5828180MLB5.8*5.8*2.8180.132.15Datasheet
AQS5828151MLB5.8*5.8*2.81500.910.7Datasheet
AQS5828150MLB5.8*5.8*2.8150.1152.25Datasheet
AQS5828120MLB5.8*5.8*2.8120.12.5Datasheet
AQS5828102MLB5.8*5.8*2.810007.30.21Datasheet
AQS5828101MLB5.8*5.8*2.81000.6450.8Datasheet
AQS5828100MLB5.8*5.8*2.8100.0832.6Datasheet
AQS6822821MLB6.8*6.8*2.78205.50.23Datasheet
AQS6822820MLB6.8*6.8*2.7820.540.77Datasheet
AQS68227R5YLB6.8*6.8*2.77.50.0642.3Datasheet
AQS68226R2YLB6.8*6.8*2.76.20.0572.4Datasheet
AQS6822681MLB6.8*6.8*2.76804.30.26Datasheet
AQS6822680MLB6.8*6.8*2.7680.480.8Datasheet
AQS68225R0YLB6.8*6.8*2.750.052.6Datasheet
AQS6822561MLB6.8*6.8*2.75603.580.27Datasheet
AQS6822560MLB6.8*6.8*2.7560.390.85Datasheet
AQS6822471MLB6.8*6.8*2.74703.20.3Datasheet
AQS6822470MLB6.8*6.8*2.7470.3450.95Datasheet
AQS68223R3YLB6.8*6.8*2.73.30.0333Datasheet
AQS6822391MLB6.8*6.8*2.73902.60.32Datasheet
AQS6822390MLB6.8*6.8*2.7390.2851.05Datasheet
AQS6822331MLB6.8*6.8*2.733020.36Datasheet
AQS6822330MLB6.8*6.8*2.7330.2351.1Datasheet
AQS68222R2YLB6.8*6.8*2.72.20.0273.4Datasheet
AQS6822271MLB6.8*6.8*2.72701.770.4Datasheet
AQS6822270MLB6.8*6.8*2.7270.221.25Datasheet
AQS6822221MLB6.8*6.8*2.72201.380.46Datasheet
AQS6822220MLB6.8*6.8*2.7220.1651.4Datasheet
AQS68221R5YLB6.8*6.8*2.71.50.0223.7Datasheet
AQS68221R0YLB6.8*6.8*2.710.0194.2Datasheet
AQS6822181MLB6.8*6.8*2.71801.20.48Datasheet
AQS6822180MLB6.8*6.8*2.7180.131.6Datasheet
AQS6822151MLB6.8*6.8*2.71501.10.52Datasheet
AQS6822150MLB6.8*6.8*2.7150.111.7Datasheet
AQS6822121MLB6.8*6.8*2.71200.760.58Datasheet
AQS6822120MLB6.8*6.8*2.7120.091.9Datasheet
AQS6822102MLB6.8*6.8*2.710006.850.2Datasheet
AQS6822101MLB6.8*6.8*2.71000.680.67Datasheet
AQS6822100MLB6.8*6.8*2.7100.0882Datasheet

備考

Remarks

ABC台湾エレクトロニクス社は、チップインダクタ、非シールドパワーインダクタ、シールドパワーインダクタ、セミシールドパワーインダクタ、大電流パワーインダクタ、コモンモードラインフィルタなどの幅広いDIPおよびSMDインダクタを供給しています。
ABC supply wide range DIP & SMD inductor such as chip inductor, non-shielded power inductor, shielded power inductor, semi-shielded power inductor, high current power inductor & common mode line filter.
お問い合わせからアフターフォローまで一貫して当社にお任せ下さい。
