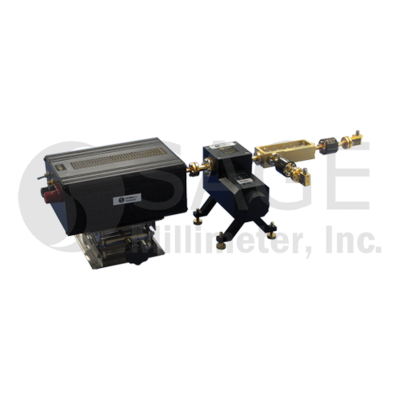

Scalar Network Analyzer Extenders

メーカー名:Eravant

製品仕様

Product Specifications

modelData sheetMinimum Output Frequency [GHz]Maximum Output Frequency [GHz]Output Power [dBm]Minimum Input Frequency [GHz]Maximum Input Frequency [GHz]Input Power [dBm]Dynamic Range (IL, RL) [dB]DC Bias [VDC/mA]RF Output Port
STN-SF906-00-D2Datasheet110170-312.2218.89+520, 10+8 / 550WR-06 WG
STN-SF415-04-D2Datasheet5075+412.518.75+530, 20+8 / 450WR-15 WG
STN-SF612-03-D2Datasheet6090+31015+530, 20+8 / 450WR-12 WG
STN-SF610-00-D2Datasheet75110+012.518.33+530, 20+8 / 450WR-10 WG
STN-SF908-00-D2Datasheet90140-31015.56+520, 10+8 / 550WR-08 WG

備考

Remarks
