Right Angle Waveguide to Coax Adapters

メーカー名:Eravant

製品仕様

Product Specifications

ModelData sheetMinimum Frequency [GHz]Maximum Frequency [GHz]Insertion Loss [dB]Return Loss [dB]Power Handling [W]Waveguide PortCoax TypeCoax GenderConfiguration

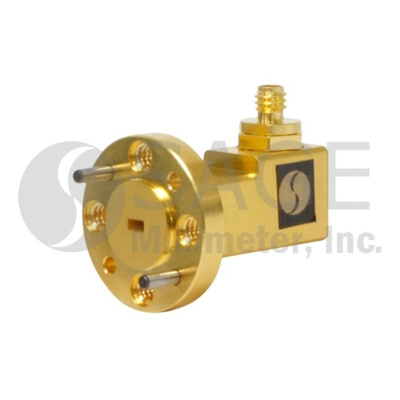

SWC-101F-R1Datasheet751101.21510WR-10 Waveguide1 mmFemaleRight Angle (90°)
SWC-101F-R1-2Datasheet751101.21510WR-10 Waveguide1 mmFemaleRight Angle (90°)
SWC-101F-R1-VDatasheet751101.21510WR-10 Waveguide1 mmFemaleRight Angle (90°)
SWC-101M-R1-VDatasheet751101.21510WR-10 Waveguide1 mmMaleRight Angle (90°)

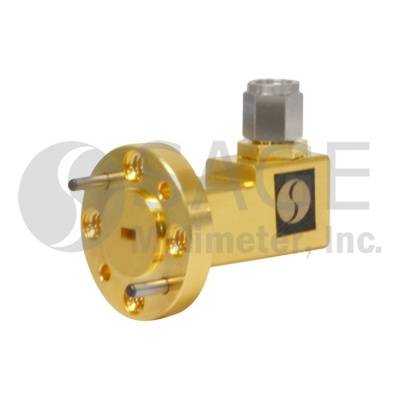

SWC-101M-R1Datasheet751101.21510WR-10 Waveguide1 mmMaleRight Angle (90°)
SWC-101M-R1-2Datasheet751101.21510WR-10 Waveguide1 mmMaleRight Angle (90°)
SWC-121F-R1Datasheet609011510WR-12 Waveguide1 mmFemaleRight Angle (90°)
SWC-121M-R1Datasheet609011510WR-12 Waveguide1 mmMaleRight Angle (90°)
SWC-12VF-R1Datasheet60720.81410WR-12 Waveguide1.85 mmFemaleRight Angle (90°)
SWC-12VM-R1Datasheet60720.81410WR-12 Waveguide1.85 mmMaleRight Angle (90°)
SWC-151F-R1Datasheet50750.71510WR-15 Waveguide1 mmFemaleRight Angle (90°)
SWC-151M-R1Datasheet50750.71510WR-15 Waveguide1 mmMaleRight Angle (90°)
SWC-15VF-R1Datasheet50700.71640WR-15 WaveguideV (1.85 mm)FemaleRight Angle (90°)
SWC-15VF-R1-VDatasheet50700.71640WR-15 WaveguideV (1.85 mm)FemaleRight Angle (90°)

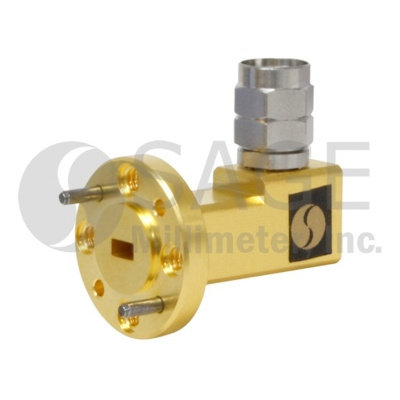

SWC-15VM-R1Datasheet50700.71640WR-15 WaveguideV (1.85 mm)MaleRight Angle (90°)
SWC-15VM-R1-VDatasheet50700.71640WR-15 WaveguideV (1.85 mm)MaleRight Angle (90°)
SWC-192F-R1Datasheet40520.51840WR-19 Waveguide2.4 mmFemaleRight Angle (90°)
SWC-192M-R1Datasheet40520.51840WR-19 Waveguide2.4 mmMaleRight Angle (90°)
SWC-19VF-R1Datasheet40600.51840WR-19 WaveguideV (1.85 mm)FemaleRight Angle (90°)
SWC-19VM-R1Datasheet40600.51840WR-19 WaveguideV (1.85 mm)MaleRight Angle (90°)
SWC-22VF-R1Datasheet33500.41840WR-22 WaveguideV (1.85 mm)FemaleRight Angle (90°)
SWC-22VM-R1Datasheet33500.41840WR-22 WaveguideV (1.85 mm)MaleRight Angle (90°)

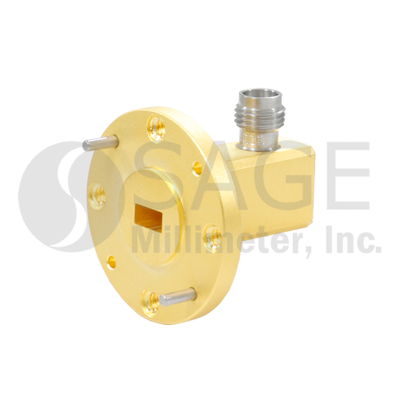

SWC-222F-R1Datasheet33500.41840WR-22 Waveguide2.4 mmFemaleRight Angle (90°)
SWC-222M-R1Datasheet33500.41840WR-22 Waveguide2.4 mmMaleRight Angle (90°)
SWC-222F-R1-599Datasheet33500.41840WR-22 Waveguide2.4 mmFemaleRight Angle (90°)
SWC-222M-R1-599Datasheet33500.41840WR-22 Waveguide2.4 mmMaleRight Angle (90°)
SWC-22KF-R1Datasheet33430.41850WR-22 WaveguideK (2.92 mm)FemaleRight Angle (90°)
SWC-22KM-R1Datasheet33430.41850WR-22 WaveguideK (2.92 mm)MaleRight Angle (90°)
SWC-22KF-R1-599Datasheet33430.41850WR-22 WaveguideK (2.92 mm)FemaleRight Angle (90°)
SWC-22KM-R1-599Datasheet33430.41850WR-22 WaveguideK (2.92 mm)MaleRight Angle (90°)
SWC-28KF-R1-1530Datasheet26.5400.352050WR-28 WaveguideK (2.92 mm)FemaleRight Angle (90°)
SWC-28KM-R1-1530Datasheet26.5400.352050WR-28 WaveguideK (2.92 mm)MaleRight Angle (90°)
SWC-28VF-R1Datasheet26.5400.352030WR-28 WaveguideV (1.85 mm)FemaleRight Angle (90°)
SWC-28VM-R1Datasheet26.5400.352030WR-28 WaveguideV (1.85 mm)MaleRight Angle (90°)
SWC-28KF-R1Datasheet26.5400.352020WR-28 WaveguideK (2.92 mm)FemaleRight Angle (90°)
SWC-28KF-R1-VDatasheet26.5400.252050WR-28 WaveguideK (2.92 mm)FemaleRight Angle (90°)
SWC-28KM-R1-VDatasheet26.5400.252050WR-28 WaveguideK (2.92 mm)MaleRight Angle (90°)
SWC-28KM-R1Datasheet26.5400.352020WR-28 WaveguideK (2.92 mm)MaleRight Angle (90°)
SWC-282F-R1Datasheet26.5400.352040WR-28 Waveguide2.4 mmFemaleRight Angle (90°)
SWC-282M-R1Datasheet26.5400.352040WR-28 Waveguide2.4 mmMaleRight Angle (90°)
SWC-34KF-R1Datasheet22330.352050WR-34 WaveguideK (2.92 mm)FemaleRight Angle (90°)
SWC-34KM-R1Datasheet22330.352050WR-34 WaveguideK (2.92 mm)MaleRight Angle (90°)
SWC-342F-R1Datasheet22330.352050WR-34 Waveguide2.4 mmFemaleRight Angle (90°)
SWC-342M-R1Datasheet22330.352050WR-34 Waveguide2.4 mmMaleRight Angle (90°)
SWC-42KF-R1Datasheet1826.50.32050WR-42 WaveguideK (2.92 mm)FemaleRight Angle (90°)
SWC-42KF-R1-VDatasheet1826.50.32050WR-42 WaveguideK (2.92 mm)FemaleRight Angle (90°)
SWC-42KM-R1-VDatasheet1826.50.32050WR-42 WaveguideK (2.92 mm)MaleRight Angle (90°)
SWC-42KM-R1Datasheet1826.50.32050WR-42 WaveguideK (2.92 mm)MaleRight Angle (90°)
SWC-42KF-E1-VDatasheet1826.50.32050WR-42 WaveguideK (2.92 mm)FemaleEnd Launch (180°)
SWC-422F-R1Datasheet1826.50.32040WR-42 Waveguide2.4 mmFemaleRight Angle (90°)
SWC-422M-R1Datasheet1826.50.32040WR-42 Waveguide2.4 mmMaleRight Angle (90°)
SWC-42SF-R1Datasheet1826.50.31750WR-42 WaveguideSMAFemaleRight Angle (90°)
SWC-42SM-R1Datasheet1826.50.31750WR-42 WaveguideSMAMaleRight Angle (90°)
SWC-51KF-R1Datasheet15220.162210WR-51 WaveguideK (2.92 mm)FemaleRight Angle (90°)
SWC-51KM-R1Datasheet15220.162210WR-51 WaveguideK (2.92 mm)MaleRight Angle (90°)
SWC-75SF-R5Datasheet9.84150.220150WR-75 WaveguideSMAFemaleRight Angle (90°)
SWC-75SM-R5Datasheet9.84150.220150WR-75 WaveguideSMAMaleRight Angle (90°)
SWC-62SF-R5Datasheet12180.220150WR-62 WaveguideSMAFemaleRight Angle (90°)
SWC-90SF-R5Datasheet8.212.40.220150WR-90 WaveguideSMAFemaleRight Angle (90°)
SWC-62SM-R5Datasheet12180.220150WR-62 WaveguideSMAMaleRight Angle (90°)
SWC-90SM-R5Datasheet8.212.40.220150WR-90 WaveguideSMAMaleRight Angle (90°)
