Right Angle Power Amplifiers

メーカー名:Eravant

製品仕様

Product Specifications

ModelData sheetMinimum Frequencyy [GHz]Maximum Frequencyy [GHz]Gain [dB]P1dB [dBm]Psat [dBm]Input Return Loss [dB]Output Return Loss [dB]DC Bias [VDC/mA]RF Input/Output
SBP-9239633514-1010-S1Datasheet929635+14+1666+8 VDC/250 mAWR-10 Waveguide
SBP-7039532012-1010-S1Datasheet709520+12+161515+8 VDC/250 mAWR-10 Waveguide
SBP-9039531124-1010-S1Datasheet909511+24+2766+15 VDC/260 mAWR-10 Waveguide
SBP-5539531012-1212-S1Datasheet559510+12+161010+8 VDC/150 mAWR-12 Waveguide
SBP-6039032516-1212-S1Datasheet609025+16+201010+8 VDC/600 mAWR-12 Waveguide
SBP-6039032012-1212-S1Datasheet609020+12+161010+8 VDC/250 mAWR-12 Waveguide
SBP-6039031016-1212-S1Datasheet609010+16+201010+8 VDC/350 mAWR-12 Waveguide
SBP-7039033015-1212-S1Datasheet709030+15+201010+15 VDC/190 mAWR-12 Waveguide
SBP-7138633015-1212-S1Datasheet718630+15+201010+15 VDC/190 mAWR-12 Waveguide
SBP-7638133512-1212-S1Datasheet768135+12+1566+8 VDC/300 mAWR-12 Waveguide
SBP-7638131512-1212-S1Datasheet768115+12+1566+8 VDC/150 mAWR-12 Waveguide
SBP-5037532512-1515-S1Datasheet507525+12+161010+8 VDC/250 mAWR-15 Waveguide
SBP-5037032815-1515-S1Datasheet507028+15+201010+8 VDC/420 mAWR-15 Waveguide
SBP-5036632213-1515-S1Datasheet506622+13+171010+8 VDC/250 mAWR-15 Waveguide
SBP-5536533022-1515-S1Datasheet556530+22+231010+8 VDC/800 mAWR-15 Waveguide
SBP-5536532518-1515-S1Datasheet556525+18+221010+8 VDC/420 mAWR-15 Waveguide
SBP-4036033519-1919-S1Datasheet406035+19+201212+8 VDC/650 mAWR-19 Waveguide
SBP-4036033519-VF19-S1Datasheet406035+19+201010+8 VDC/650 mAV(F)/WR-19 Waveguide
SBP-4036031519-1919-S1Datasheet406015+19+201010+8 VDC/300 mAWR-19 Waveguide
SBP-4036031519-VF19-S1Datasheet406015+19+201010+8 VDC/300 mAV(F)/WR-19 Waveguide
SBP-4735233018-2222-S1Datasheet475230+18+201010+8 VDC/650 mAWR-22 Waveguide
SBP-3335033018-2222-S1Datasheet335030+18+201010+8 VDC/650 mAWR-22 Waveguide
SBP-3334733525-2222-S1Datasheet334735+25+27610+8 VDC/650 mAWR-22 Waveguide
SBP-2234031723-KF28-S1Datasheet224017+23+241010+8 VDC/500 mAK(F)/WR-28 Waveguide
SBP-3334033525-2222-S1Datasheet334035+25+271010+8 VDC/650 mAWR-22 Waveguide
SBP-3334033525-KF22-S1Datasheet334035+25+271010+8 VDC/650 mAK(F)/WR-22 Waveguide

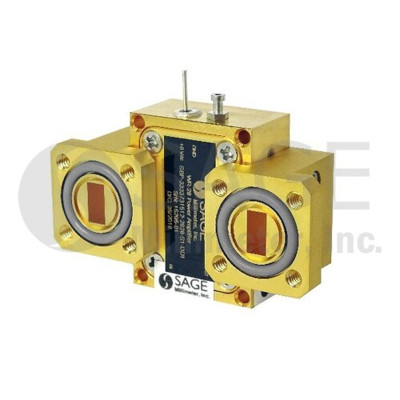

SBP-3333731512-2828-S1-KDatasheet333715+12+151010+8 VDC/110 mAWR-28 Waveguide
