Right Angle Low Noise Amplifiers

メーカー名:Eravant

製品仕様

Product Specifications

ModelData sheetMinimum Frequency [GHz]Maximum Frequency [GHz]Gain [dB]Noise Figure [dB]P1dB [dBm]Input Return Loss [dB]Output Return Loss [dB]DC Bias [VDC/mA]RF Input/Output
SBL-7531143550-1010-S1Datasheet75110355-568+8/100WR-10 Waveguide
SBL-7531142050-1010-S1Datasheet75110205+266+8/30WR-10 Waveguide
SBL-9031142250-1010-S1Datasheet90110225-586+8/50WR-10 Waveguide
SBL-8031042540-1010-S1Datasheet80100254+268+8/30WR-10 Waveguide
SBL-7539032540-1010-S1Datasheet7590254+288+8/30WR-10 Waveguide
SBL-5539532560-1212-S1Datasheet5595256+121010+8/300WR-12 Waveguide
SBL-5539531260-1212-S1Datasheet5595106+121010+8/150WR-12 Waveguide
SBL-6039034050-1212-S1Datasheet6090405+1088+8/150WR-12 Waveguide
SBL-6039032550-1212-S1Datasheet6090255+388+8/30WR-12 Waveguide
SBL-7539032540-1212-S1Datasheet7590254+266+8/30WR-12 Waveguide
SBL-7138633540-1212-S1Datasheet7186354+566+8/150WR-12 Waveguide
SBL-7138632040-1212-S1Datasheet7186204+266+8/30WR-12 Waveguide
SBL-5037533550-1515-S1Datasheet5075355+1188+8/150WR-15 Waveguide
SBL-5037531850-1515-S1Datasheet5075185+1188+8/100WR-15 Waveguide
SBL-5436631850-1515-S1Datasheet5466185+1088+8/100WR-15 Waveguide
SBL-4036035060-1919-S1Datasheet4060506+11810+6/450WR-19 Waveguide

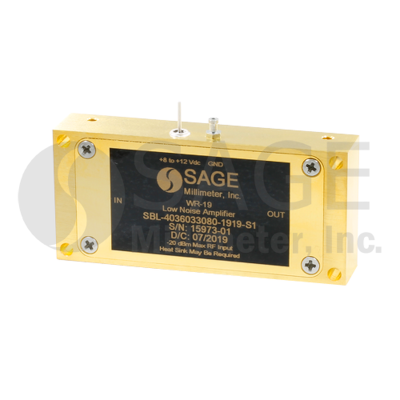

SBL-4036033080-1919-S1Datasheet4060308+1666+8/500WR-19 Waveguide
SBL-4735232445-1919-S1Datasheet4751.5244.5+1288+6/130WR-19 Waveguide
SBL-4735232445-192F-S1Datasheet4751.5244.5+1288+6/130WR-19 WG/2.4mm (F) Connector
SBL-3335033040-2222-S1Datasheet3350304+12107+8/330WR-22 Waveguide
SBL-3335033040-2F22-S1Datasheet3350304+12107+8/3302.4mm (F) Connector/WR-22 WG
SBL-2634033030-KF28-S1Datasheet26.540303+101010+8/150K(F)/WR-28 Waveguide
SBL-2634032030-2828-S1Datasheet26.540203+81010+8/66WR-28 Waveguide
SBL-2634032030-KF28-S1Datasheet26.540203+81010+8/66K(F)/WR-28 Waveguide
SBL-3333734030-2828-S1Datasheet3337403+101010+8/205WR-28 Waveguide
SBL-3333733640-2828-S1-KDatasheet3337364+121010+8/150WR-28 Waveguide
SBL-3333733030-2828-S1Datasheet3337303+101010+8/150WR-28 Waveguide
SBL-2733533530-2828-S1Datasheet2735353+101010+8/135WR-28 Waveguide
