Right Angle Coaxial Adapters

メーカー名: Eravant

製品仕様

Product Specifications

Model NumberData sheetMinimum FrequencyMaximum FrequencyInsertion LossReturn LossImpedanceConnector 1Connector 2
SCT-SFSF-U8-RDatasheetDC26.5 GHz0.3 dB25 dB50 OhmsSMA FemaleSMA Female
SCT-SFSM-U8-RDatasheetDC26.5 GHz0.3 dB25 dB50 OhmsSMA FemaleSMA Male
SCT-SFSM-RRDatasheetDC26.5 GHz0.3 dB25 dB50 OhmsSMA FemaleSMA Male

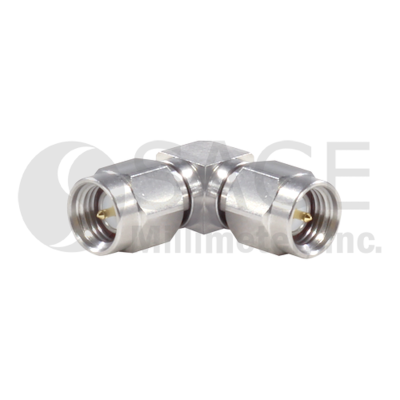

SCT-SMSM-U8-RDatasheetDC26.5 GHz0.3 dB25 dB50 OhmsSMA MaleSMA Male
SCT-SMSM-RRDatasheetDC26.5 GHz0.3 dB25 dB50 OhmsSMA MaleSMA Male
SCT-KFKF-U8-RDatasheetDC40 GHz0.4 dB25 dB50 Ohms2.92 mm Female2.92 mm Female

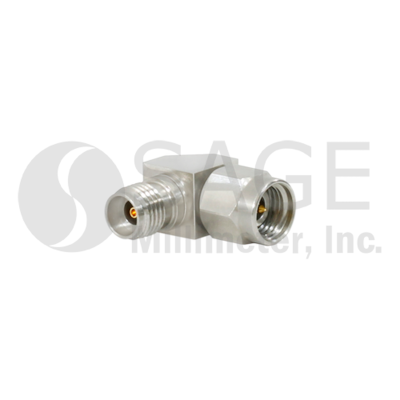

SCT-KFKM-U8-RDatasheetDC40 GHz0.4 dB25 dB50 Ohms2.92 mm Female2.92 mm Male
SCT-KFKM-UB-RDatasheetDC40 GHz0.4 dB50 Ohms2.92 mm Female2.92 mm Male
SCT-KMKM-U8-RDatasheetDC40 GHz0.4 dB25 dB50 Ohms2.92 mm Male2.92 mm Male
SCT-2F2F-U8-RDatasheetDC50 GHz0.4 dB15 dB50 Ohms2.4 mm Female2.4 mm Female
SCT-2F2M-U8-RDatasheetDC50 GHz0.4 dB15 dB50 Ohms2.4 mm Female2.4 mm Male
SCT-2M2M-U8-RDatasheetDC50 GHz0.4 dB15 dB50 Ohms2.4 mm Male2.4 mm Male
SCT-VFVF-U8-RDatasheetDC65 GHz0.5 dB14 dB50 Ohms1.85 mm Female1.85 mm Female
SCT-VFVM-U8-RDatasheetDC65 GHz0.5 dB14 dB50 Ohms1.85 mm Female1.85 mm Male
SCT-VMVM-U8-RDatasheetDC65 GHz0.5 dB14 dB50 Ohms1.85 mm Male1.85 mm Male

備考

Remarks
