Ranging Sensor Modules

メーカー名:Eravant

製品仕様

Product Specifications

Model NumberData sheetRF Center FrequencyTX PowerFMCW Tuning BandwidthFMCW Tuning VoltageMinimum IF FrequencyMaximum IF FrequencyFrequency StabilityDC BiasChannel

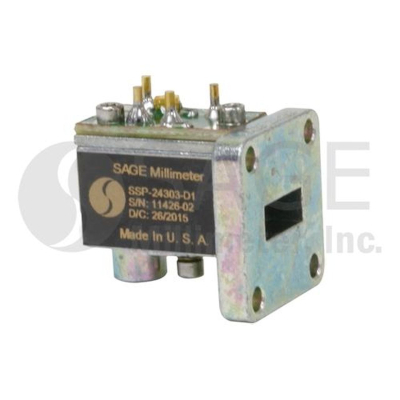

SSP-24303-D1Datasheet24.125 GHz+3 dBm±100 MHz0 to +20 VoltsDC100 MHz-0.8 MHz/°C+5 VDC/250 mADual
SSP-24307-S1Datasheet24.125 GHz+7 dBm±100 MHz0 to +20 VoltsDC100 MHz-0.8 MHz/°C+5 VDC/250 mASingle
SSP-35310-NAN-D2Datasheet35 GHz+10 dBm-----+5 VDC/350 mADual

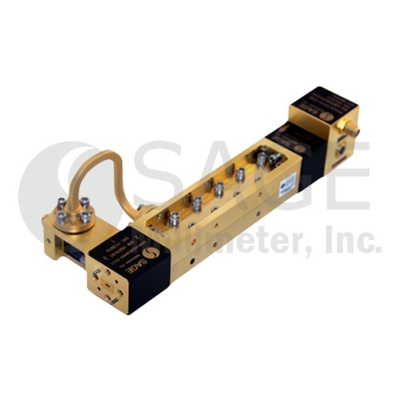

SSP-94310-S1Datasheet94 GHz+10 dBm±250 MHz0 to +20 VoltsDC1000 MHz-6.0 MHz/°C+10 VDC/200 mASingle
