Probe Antennas

メーカー名:Eravant

製品仕様

Product Specifications

Model NumberData sheetMinimum FrequencyMaximum FrequencyGain3 dB Beamwidth, E-Plane3 dB Beamwidth, H-PlaneReturn LossPolarizationAntenna Port
SAP-08-R2Datasheet90 GHz140 GHz6.5 dBi115°60°9 dBLinearWR-08 Waveguide
SAP-121M-R2Datasheet60 GHz90 GHz6.5 dBi115°60°20 dBLinear1 mm (M)

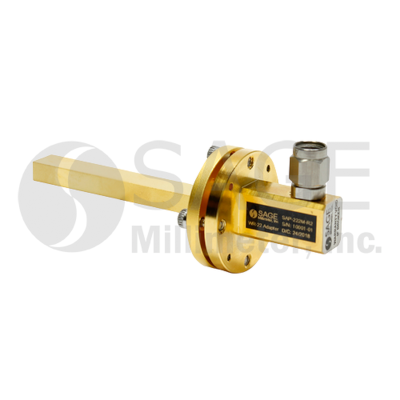

SAP-222M-R2Datasheet33 GHz50 GHz6.5 dBi115°60°20 dBLinear2.4 mm (M)
SAP-28KF-E2Datasheet26.5 GHz40 GHz6.5 dBi115°60°15 dBLinear2.92 mm (F)
SAP-28KM-E2Datasheet26.5 GHz40 GHz6.5 dBi115°60°15 dBLinear2.92 mm (M)
SAP-03-R2Datasheet220 GHz325 GHz6.5 dBi115°55°10 dBLinearWR-03 Waveguide
SAP-04-R2Datasheet170 GHz260 GHz6.5 dBi115°55°10 dBLinearWR-04 Waveguide
SAP-05-R2Datasheet140 GHz220 GHz6.5 dBi115°55°10 dBLinearWR-05 Waveguide

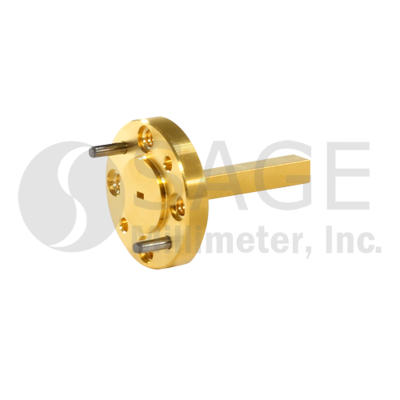

SAP-06-R2Datasheet110 GHz170 GHz6.5 dBi115°60°9 dBLinearWR-06 Waveguide
SAP-10-R2Datasheet75 GHz110 GHz6.5 dBi115°60°9 dBLinearWR-10 Waveguide

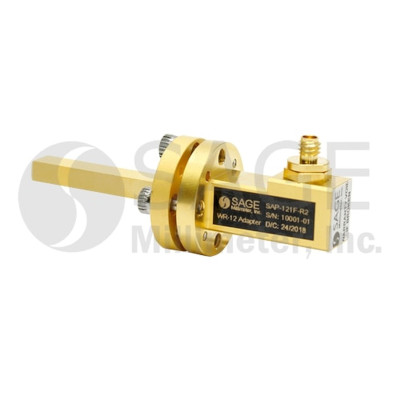

SAP-121F-R2Datasheet60 GHz90 GHz6.5 dBi115°60°20 dBLinear1 mm (F)
SAP-12-R2Datasheet60 GHz90 GHz6.5 dBi115°60°-LinearWR-12 Waveguide
SAP-15-R2Datasheet50 GHz75 GHz6.5 dBi115°60°9 dBLinearWR-15 Waveguide
SAP-19-R2Datasheet40 GHz60 GHz6.5 dBi115°60°9 dBLinearWR-19 Waveguide
SAP-222F-R2Datasheet33 GHz50 GHz6.5 dBi115°60°20 dBLinear2.4mm (F)
SAP-22-R2Datasheet33 GHz50 GHz6.5 dBi115°60°9 dBLinearWR-22 Waveguide
SAP-28-R2Datasheet26.5 GHz40 GHz6.5 dBi115°60°12 dBLinearWR-28 Waveguide
SAP-34-R2Datasheet22 GHz33 GHz6.5 dBi115°60°10 dBLinearWR-34 Waveguide

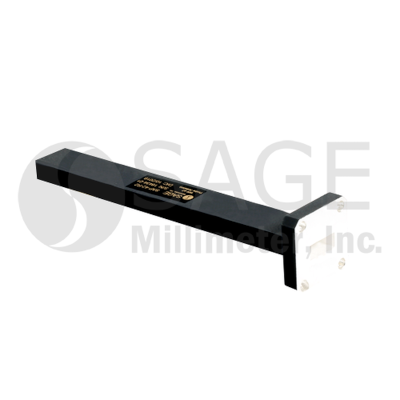

SAP-42-R2Datasheet18 GHz26.5 GHz6.5 dBi115°60°10 dBLinearWR-42 Waveguide
SAP-622-S2-7.09Datasheet12.4 GHz18 GHz9.0 dBi67°65°10 dBLinear0.622" x 0.622" Square Waveguide
SAP-900-S2-7.0Datasheet8.2 GHz12.4 GHz9.0 dBi68°65°10 dBLinear0.90" x 0.90" Square Waveguide
